5. OPERATION METHOD
This section contains basic operation information and techniques that
should be considered before proceeding any measurement. As for the
location and function of instrument controls, connectors, and indicators,
refer to the “Instruction of Front Panel and Rear Panel” of this manual.
5-1.Readout Display
The CRT readout display indicates how to set up the instrument controls.
No physical marking shown on the rotating switches indicates the control

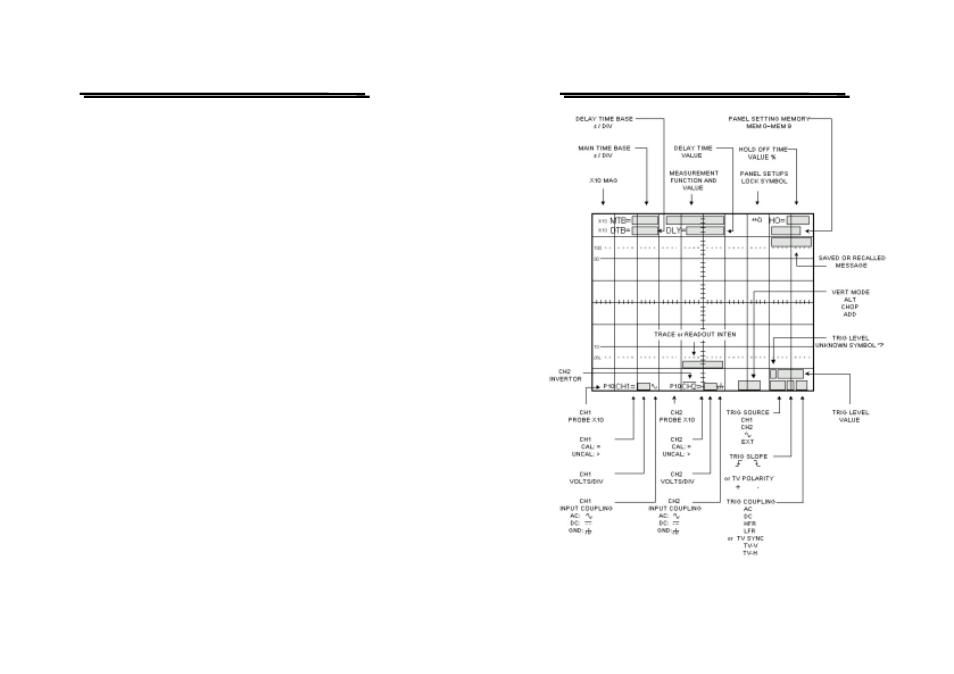

setting. A key to the location and type of readout information displayed is
illustrated in figure 5-1:
GOS-6103C OSCILLOSCOPE
USER MANUAL

34

Figure 5-1
