GOS-6103C OSCILLOSCOPE
USER MANUAL

27

Measurement and Panel setting Control
The measurement section controls the on-screen readout and the cursor
measurements. For more information, please refer to page 9 “PANEL
INTRODUCTION” section for the instrument to store and recall the
panel setting.

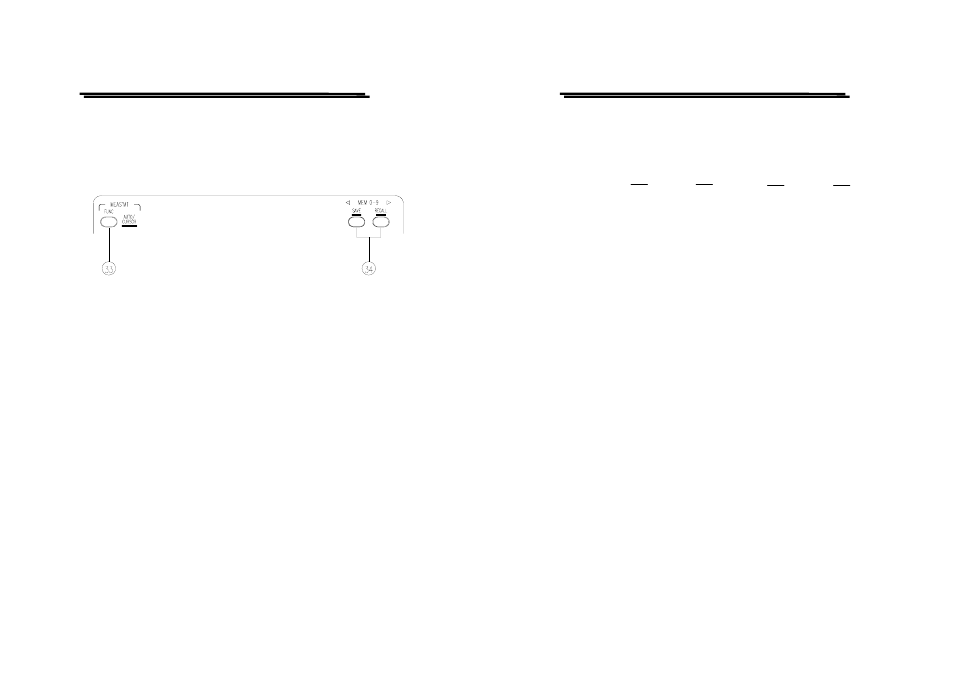

(33) MEAS’MT FUNC—AUTO/CURSOR—Pushbutton with two functions.
AUTO/CURSOR
Pressing and holding the pushbutton to select measurement function
between AUTO and CURSOR measurement mode.
In the AUTO measurement mode, the built-in 6 digit universal counter is
accurate within a range of ±0.01% and can measure frequencies between
50Hz and 100MHz.
In the CURSOR measurement mode, the cursor lines are part of the
readout, they are visible only when the readout is switched on.
GOS-6103C OSCILLOSCOPE
USER MANUAL

28

FUNC (Function)
In the AUTO measurement mode, each time when the pushbutton is
briefly pressed the four measurement parameters will be selected in the
sequence as follows:
FREQ PERIOD ±WIDTH ±DUTY OFF
In the CURSOR measurement mode, each time when the pushbutton is
briefly pressed the seven measurement functions will be selected in the
sequence as follows:
△V : Voltage difference measurement.
△V% : Voltage difference percentage measurement
(5div=100% reference)
△VdB : Voltage gain measurement.
(5div=0dB reference, △VdB=20 log △V div/5div).
△T : Time difference measurement.
△T% : Time difference percentage measurement.
(5div=100% reference).
1/△T : Frequency measurement.
△θ : Phase measurement.
(5div=360 o reference).
