Configuration Appendix C: MS-9600
LDM-32F PN 50055:C 03/20/01
53
Alarm Only Annunciation of Zones
The table below illustrates the configuration of the LDM Series modules to
annunciate the alarm state of all 99 software zones (no zone troubles), and two
NACs, with the first eight points of address ‘01’ dedicated to the MS-9600
system functions (see Figure 35 below).

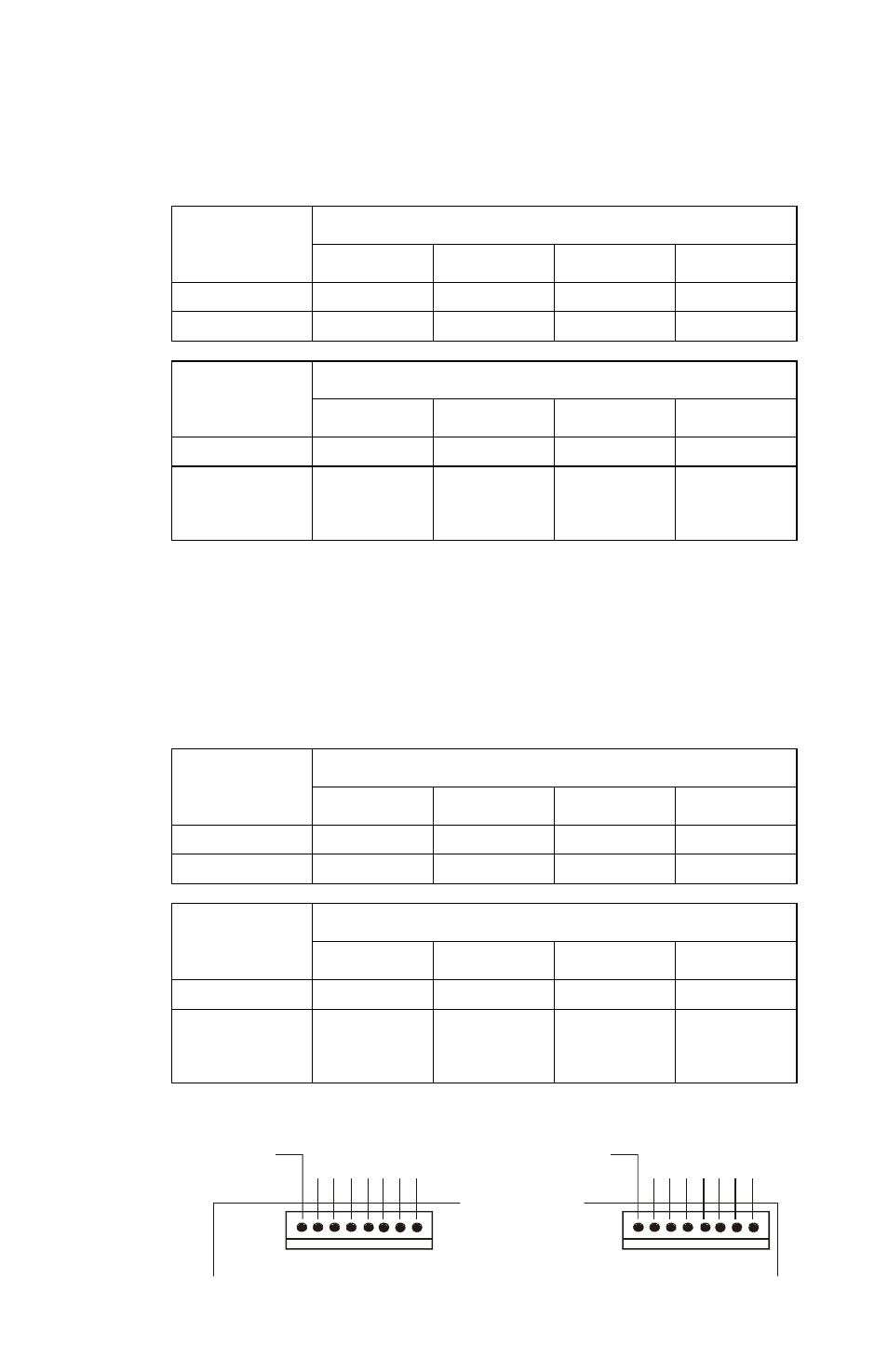

Table 24 Alarm Only Setup
Alarm Only Annunciation of Zones - With 8-Point Shift
The table below illustrates the configuration of the LDM Series modules to
annunciate the alarm state of all 99 software zones (no zone troubles), and two
NACs, with the last eight points of address ‘01’ dedicated to the MS-9600
system functions (see Figure 35 below).
Table 25 Alarm Only Setup with Shift
Figure 35 System Functions to Output Connectors - 1
LDM Module
Address ‘01’
LDM Output Connectors
J5 J6 J7 J8
LDM-32F Sys Funct Z1 to Z8 Z9 to Z16 Z17 to Z24
LDM-E32F Z25 to Z32 Z33 to Z40 Z41 to Z48 Z49 to Z56
LDM Module
Address ‘02’
LDM Output Connectors
J5 J6 J7 J8
LDM-32F Z57 to Z64 Z65 to Z72 Z73 to Z80 Z81 to Z88
LDM-E32F Z89 to Z96 Z97 to Z99 &
NAC1, NAC2
ON
LDM Module
Address ‘01’
LDM Output Connectors
J5 J6 J7 J8
LDM-32F Z1 to Z8 Z9 to Z16 Z17 to Z24 Z25 to Z32
LDM-E32F Z33 to Z40 Z41 to Z48 Z49 to Z56 Sys Funct
LDM Module
Address ‘02’
LDM Output Connectors
J5 J6 J7 J8
LDM-32F Z57 to Z64 Z65 to Z72 Z73 to Z80 Z81 to Z88
LDM-E32F Z89 to Z96 Z97 to Z99 &
NAC1, NAC2
ON
1 2 3 4 5 6 7 8
J5
25 26 27 28 29 30 31 32
J8
System Alarm System Alarm
Not Used Not Used
