Terminal blocks, Tb1 - 24 vdc power, earth ground and supervision, Tb2- eia-485 in/out – Fire-Lite LDM-32F Lamp Drivers User Manual

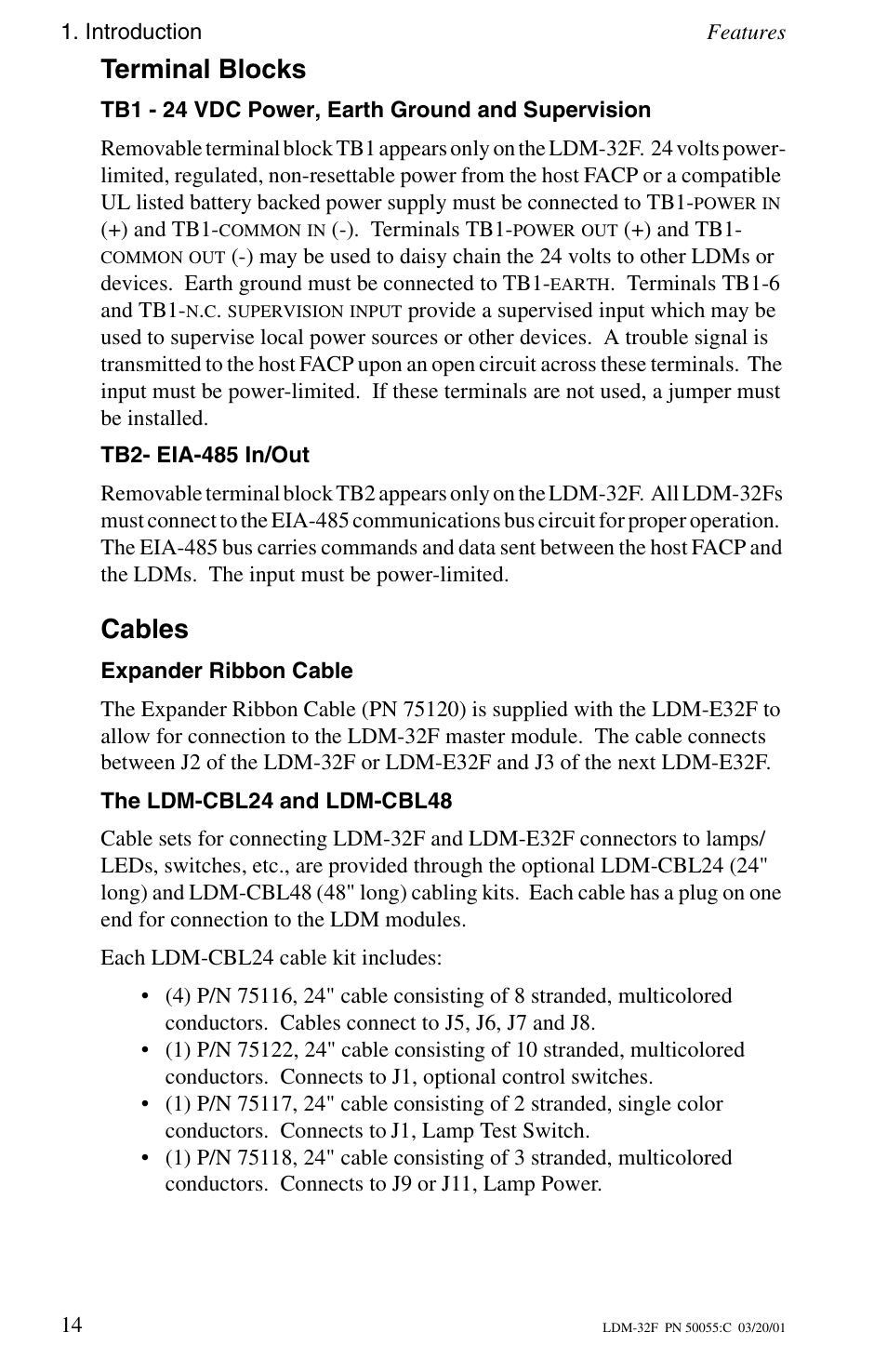

Page 14: Cables, Expander ribbon cable, The ldm-cbl24 and ldm-cbl48
