J11 - 5 vdc lamp power, Switches, Sw1 and sw2 - address switches – Fire-Lite LDM-32F Lamp Drivers User Manual

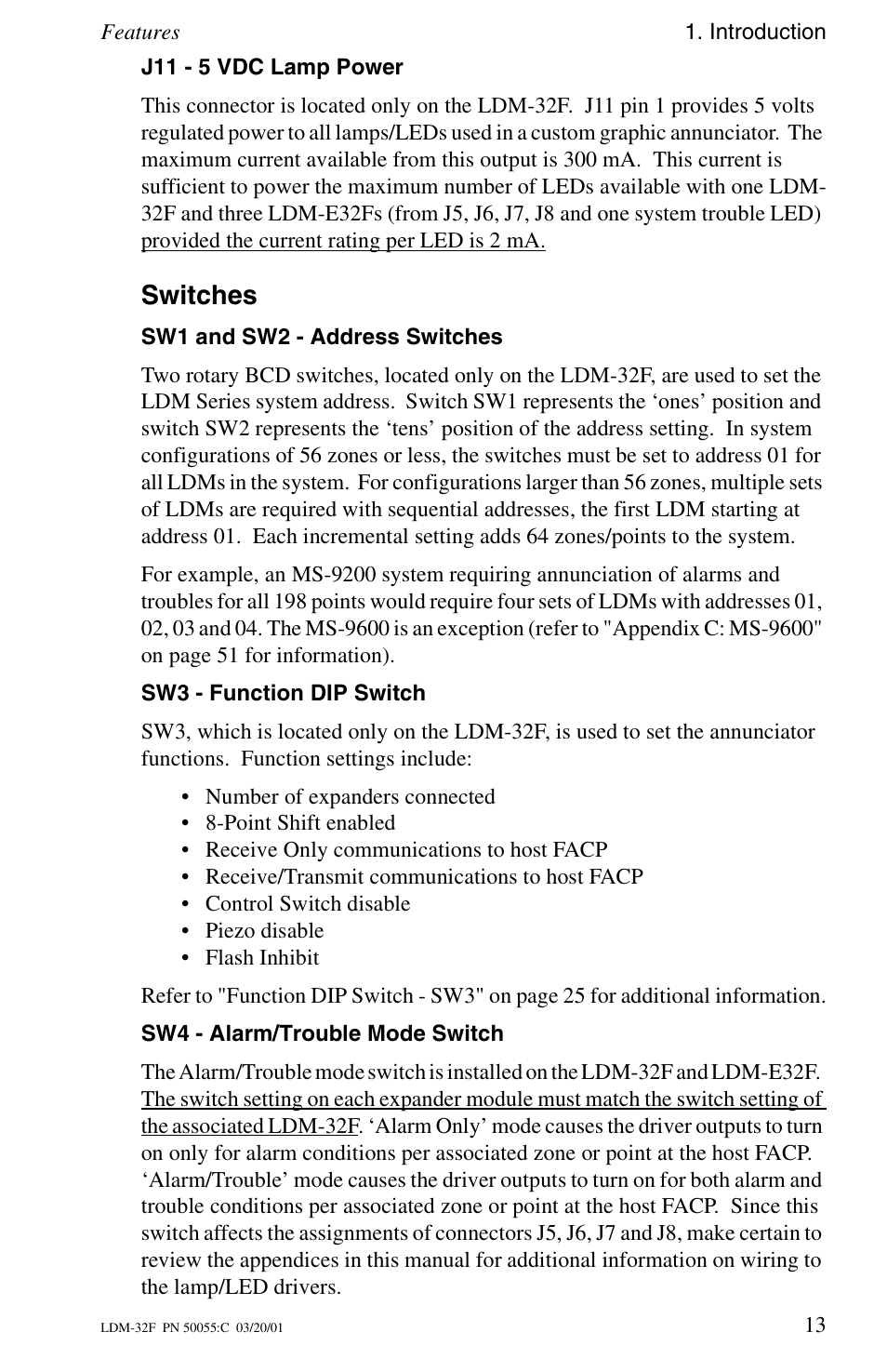

Page 13: Sw3 - function dip switch, Sw4 - alarm/trouble mode switch
