P/N 3100009 ISSUE 2
IN1 IN2 IN3 IN4 N +VS GND
VDC 1
OUT 0
OUT 1
OUT 2
OUT 3
OUT 1
OUT 2
OUT 3
OUT 4
OUT 5
OUT 6
OUT 7
DC COM
+24V DC (EXTERNAL POWER SOURCE)
Input Board
PLC
SEE NOTE
NOTE: IN1 can be connected to a 24V DC priority signal for activation of external
audio signal connected to Audio Input Board.

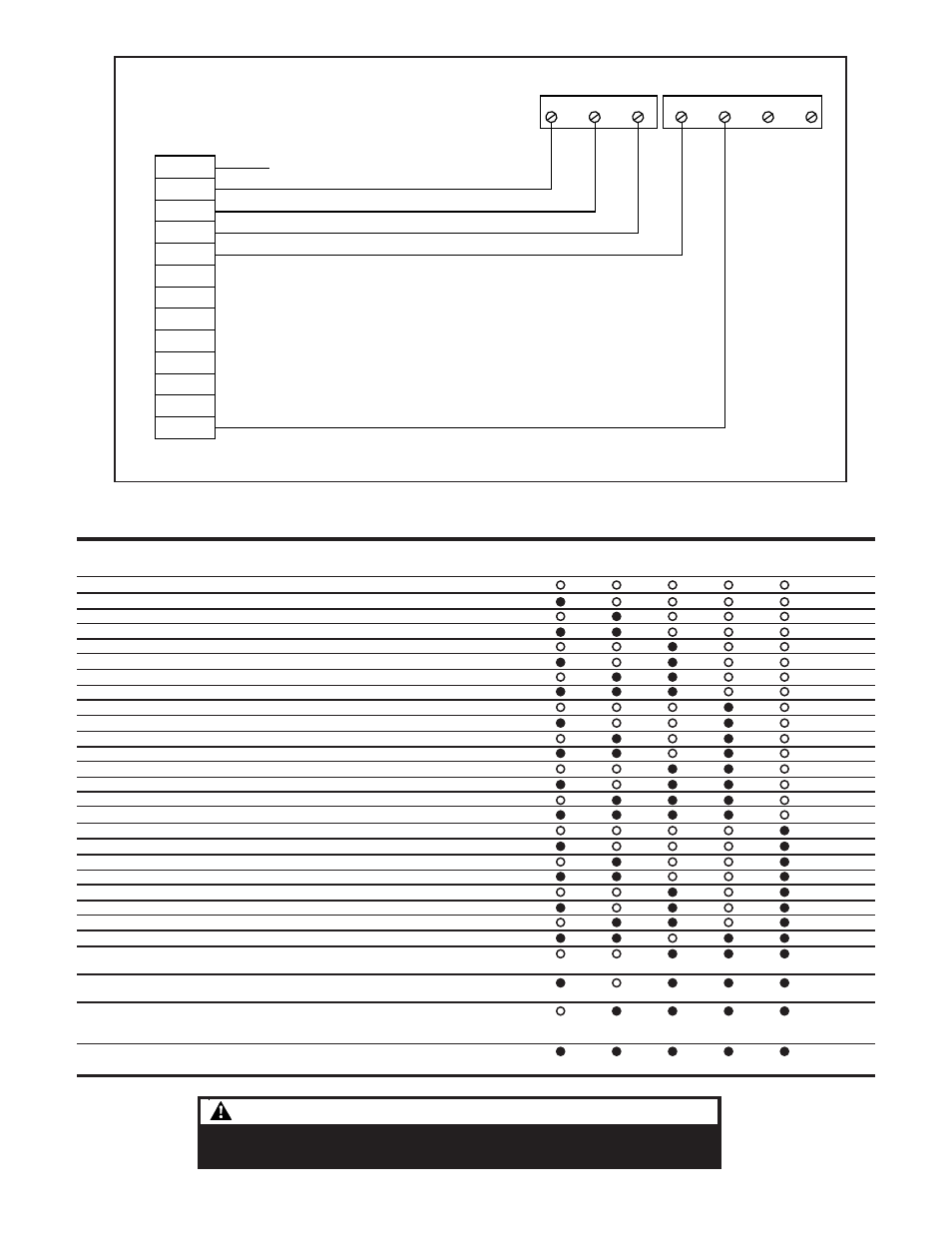

Figure 10. Connecting 24V Input Board to a PLC. See Table 1.
Figure 11. Tone Programming
Switch
Tone Description 1 2 3 4 5 HEX
No Tone 00
Ding-Dong Percussive pairs of 700 and 570 Hz tones, each damped to zero 01
Warble 575 and 770 Hz alternately, 87 ms each 02
Siren 600-1250 Hz up and down sweep in 8 seconds and repeat 03
Stutter Percussive 470 Hz, 83 ms on, 109 ms off 04
Slow Whoop 600-1250 Hz upward sweep in 4 seconds and repeat 05
Beep 470 Hz, 0.55 seconds on, 0.55 seconds off 06
Chime 1 700 Hz percussive repeat at 1 Hz 07
Fast Whoop 600-1250 Hz upward sweep in 1 second and repeat 08
Hi/Lo 780 to 600 Hz alternately, 0.52 seconds each 09
Rapid Siren 600-1250 Hz up and down sweep in 0.25 seconds and repeat 0A
Yeow 1250-600 Hz downward sweep in 1.6 seconds and repeat 0B
Horn 470 Hz continuous 0C
Air Horn 370 Hz continuous 0D
Dual Tone 450-500 Hz, 0.4 to 0.5 second cycle 0E
Chime 2 575 Hz percussive repeat at 1 Hz 0F
Westminster Two measures, 411 Hz, 520 Hz, 407 Hz, 312 Hz 10
Three Blind Mice Four Measures, 787 Hz, 714 Hz, 625 Hz, 952 Hz, 333 Hz 11
Phasor 416-625 Hz up and down sweep in 13 ms and repeat 12
Telephone 570 and 770 Hz alternately, 50 ms each for 1.2s, 1.5s delay and repeat 13
Staircase 440-2000 Hz up and down steps, 750 ms delay and repeat 14
3 Tone Alert 463, 641 and 896 Hz, 200 ms each, 1 second delay and repeat 15
Presignal Chime 470 Hz percussive repeat at 1.5 Hz, followed by Message 1 16
NFPA Whoop 422-775 Hz, upward sweeps, 850 ms each, 1 second delay and repeat 1B
3 Pulse Horn 470 Hz, 3 0.5 second pulses separated by 0.5 seconds followed 1C
by a 1.5 second delay and repeat--For Evacuation Use Only
3 Pulse Air Horn 370 Hz, 3 0.5 second pulses separated by 0.5 seconds followed 1D
by a 1.5 second delay and repeat--For Evacuation Use Only
3 Pulse Dual Tone 450-500 Hz, 0.4 to 0.5 second cycle, 3 0.5 second pulses separated 1E
by 0.5 seconds followed by a 1.5 second delay and repeat--For
Evacuation Use Only
3 Pulse Chime 2 575 Hz, 3 0.5 second pulses separated by 0.5 seconds followed 1F
by a 1.5 second delay and repeat--For Evacuation Use Only
CAUTION CAUTION CAUTION CAUTION CAUTION
The use of evacuation signals on this product, that is not specifically Listed for
Fire Alarm Use, is subject to the approval of the Authority Having Jurisdiction.
