P/N 3101612 ISSUE 3
Maintenance Cleaning
The module lens exterior surfaces should be periodically
cleaned with a soft clean cloth using water and a mild deter-
gent to maintain optimum light visibility. Disconnect power
before cleaning.
Lens Replacement
1. Unscrew the lens from the bottom of base (Figures 1 and
2) and remove lens.
2. Ensuring that the light source is in place, screw the lens
back on the base.
WARNING
To avoid risk of injury, install lens before
energizing the unit.
WARNING
To prevent electrical shock, disconnect power
before removing the lens.

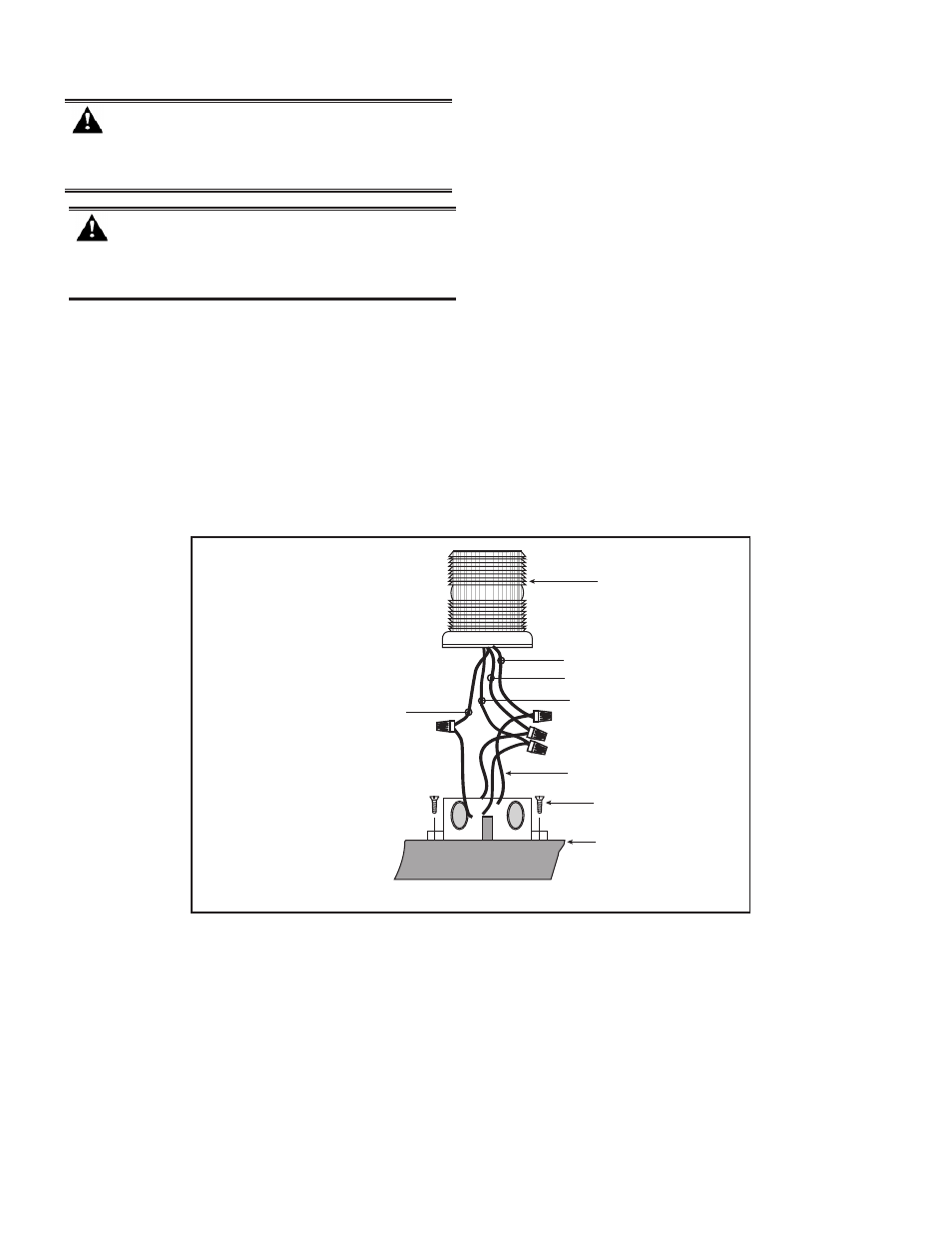

Figure 5. Wiring the 105XBRI Chameleon Series
105-LC Lens
(2) Screws to mount
105BX to the
mounting surface
Mounting
Surface
Power source wires
Wire Nuts
(not supplied)
Amber (DC + or AC hot for Amber LED
activation)
Red (DC + or AC hot for
Red LED activation)
Black (DC -) or White (AC neutral)
Blue with Green tracer
(DC + or AC hot for Blue or Green
LED activation (depending on model))
