Edwards Signaling 105XBRi Series - Manual (Page 3)

P/N 3101612 ISSUE 3
Mounted on a Cat. No. 105PM Pipe
Mount Attachment
Mounted on a Cat. No. 105BX Outlet Box
Attachment
Mounted on a Cat. No. 105BM Mounting
Bracket with the
Cat. No. 105BX Outlet Box
Attachment

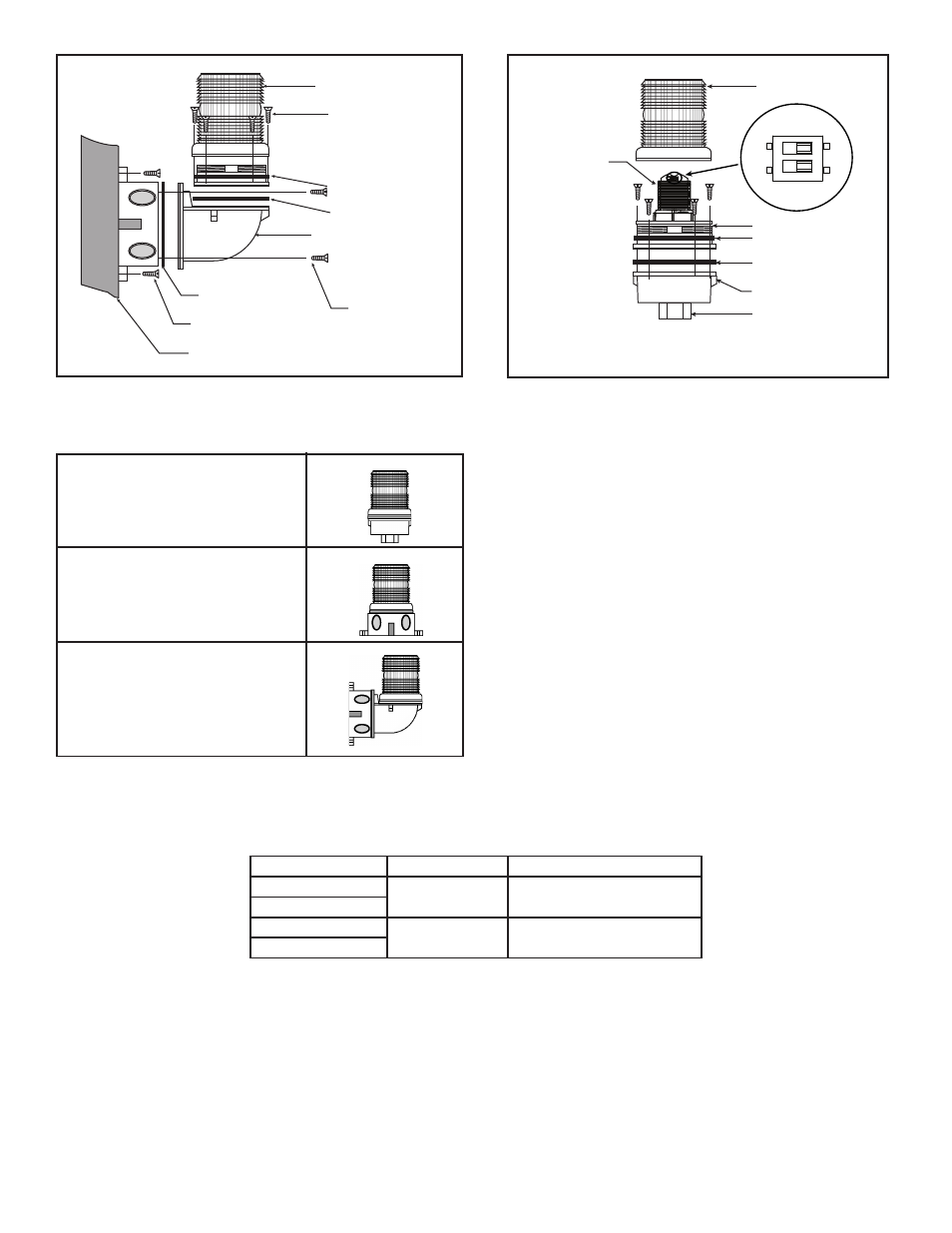

Figure 3. Mounting Configurations
Figure 2. Securing the Beacon to the Mounting Attachment
(Pipe Mount Attachment shown)
Figure 1. Mounting Cat. No. 105BM Mounting Bracket
105-LC Lens
(4) Countersunk screws
to mount lens to 105BM
(supplied)
Gasket
Adhesive backed
gasket
105BM Mounting
Bracket
(4) Screws to mount
105BM to 105BX
(supplied)
Adhesive backed
gasket
(2) Screws to mount
105BX to the
mounting surface
Mounting
Surface
105BX Outlet
Box Attachment
LED Light Source
105-LC Lens
Beacon Base
Gasket
Adhesive backed
gasket
105PM Pipe Mount
Attachment
3/4" (19 mm) conduit
nipple
OFF
OFF
ON
ON
1
2
Dipswitch
Table 3. Replacement Parts
Catalog Number Replacement Lens Replacement Lamp
105XBRiRBA24D
105-LC The 148,000 hour** lamp is
permanently installed.
105XBRiRGA24D
105XBRiRBA120A
105-LC
The 148,000 hour** lamp is
permanently installed. 105XBRiRGA120A
*Median LED Life (L70) based on manufacturer's projections. Refer to
http://www.philipslumileds.com/pdfs/WP15.pdf.
