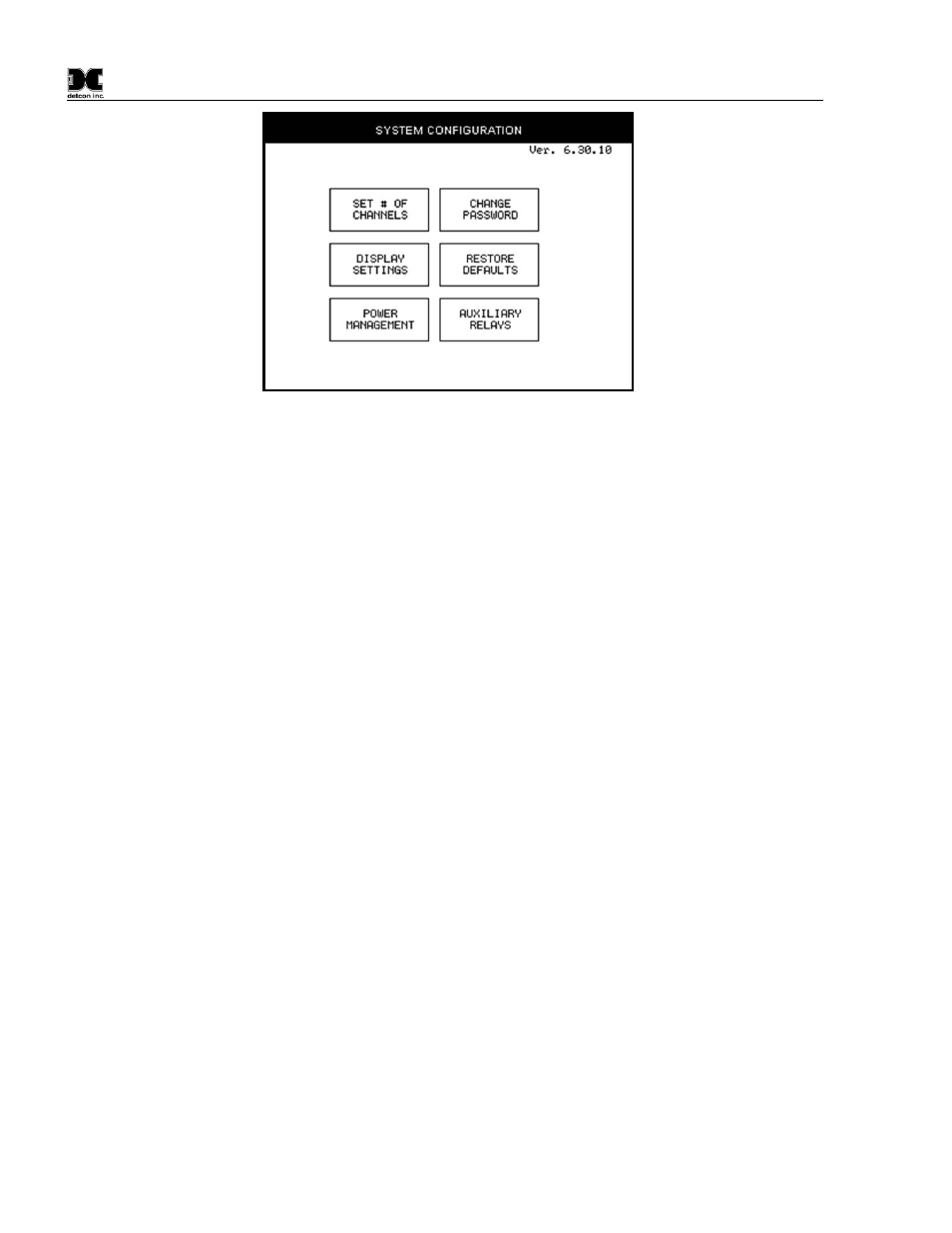

Figure 44 Remote Display System Configuration Screen
The System Configuration Screen provides access to six different aspects of the remote display that can be
changed by the operator.
 SET # OF CHANNELS
 CHANGE PASSWORD
 DISPLAY SETTINGS
 RESTORE DEFAULTS
 POWER MANAGEMENT
 AUXILIARY RELAYS
8.2.2.1 Set # of Channels Screen
The Set # of Channels screen allows setting the maximum number of active channels that the controller will be
able to communicate with. This number must match the number entered in the MCX-32 Controller.
8.2.2.2 Change Password
The Change Password screen allows the operator to change the password required to enter the System
Configuration Menus. When selected, the operator is prompted to enter ‘Current Password’, ‘New Password’,
and ‘Retype New Password’. Passwords are case sensitive. After successfully inputting the current password,
the operator may enter a new password, and then retype that new password. If the new password and the re-
typed password are the same the new password will take effect, and will need to be used to enter the
controllers System Configuration Screen.
8.2.2.3 Display Settings Screen
The Display Settings screen allows the adjustment of the screen brightness and contrast, the calibration of the
screen touch panel, and the setting of the time and date.
8.2.2.4 Restore Defaults
When selected this button will restore default values to all of the channels, and restore the number of channels
to 0. This will affect the channel description and other parameters pertaining to each channel. After selecting
Restore Defaults, the number of channels must be set to the proper value, and each channel will need to be re-
configured to reflect the proper information.
