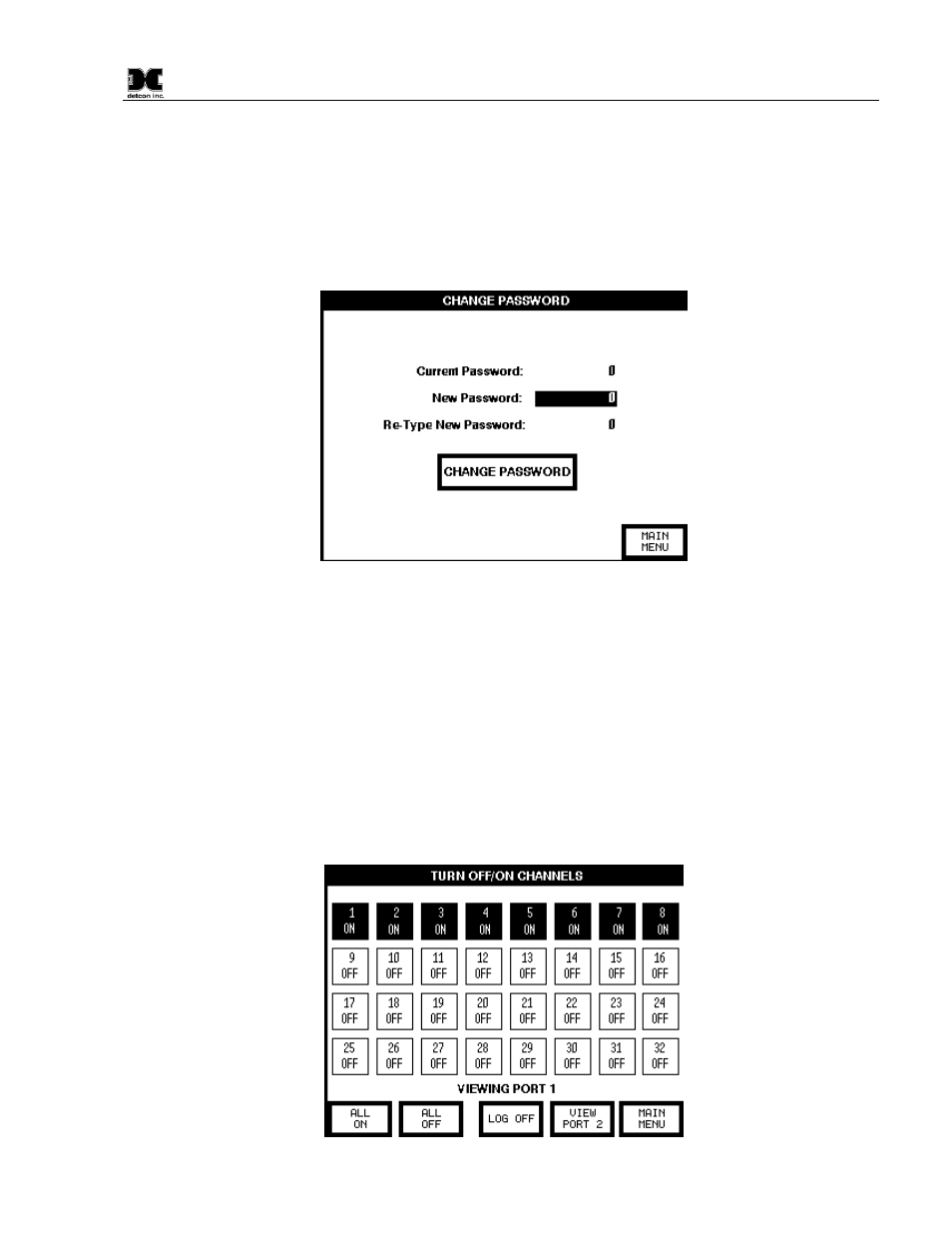

background image

Model MCX-32

Model MCX-32 Instruction Manual

Rev. 2.3

Page 23 of 49

and NC – Normally Closed Contact.) These relays may be setup as Energized or De-energized, Silence or
Non Silence, and Latched or Unlatched by selecting the ‘AUX RLY CONFIG’ button located at the bottom of
the RL4 Modules screen.

6.3.3

Change Password Screen

The Change Password screen allows the user to change the password required to log in to the MCX-32
controller. When selected, the user is prompted to enter ‘Current Password’, ‘New Password’, and ‘Re-Type
New Password’. Passwords are numeric values ten digits or less.

Figure 20 Change Password Screen

After successfully inputting the current password, the user will enter a new password and then re-type that new
password. The user will then select the ‘CHANGE PASSWORD’ button and if the new password and the re-
typed password are the same, the new password will take effect and will need to be used to log in to the
controller.

6.3.4

Turn ON/OFF Channels Screen

The Turn On/OFF Channels screen allows selection of the number of active channels that the controller will be
able to communicate with. Each channel can be turned on or off by selecting the corresponding channel
button. Port 1 channels (1-32) are viewed separately from Port 2 channels (33-64) and can be displayed by
selecting the appropriate ‘VIEW PORT #’ button located at the bottom of the screen.

Channels can be

individually toggled on or off or they can all be turned on or off for each port by selecting the ‘ALL ON’ or
‘ALL OFF’ buttons located at the bottom of the screen.

Figure 21 Turn ON/OFF Channels Screen
