files for data logging. Data is recorded onto these files which can then be viewed from the controller’s
Compact Flash screen at the user’s convenience.
The CF card can also save the controller’s current
configuration and be used to load its saved configuration to other MCX-32 controllers. See section 6.3.12 for
more information regarding the data logging feature and Compact Flash screen.

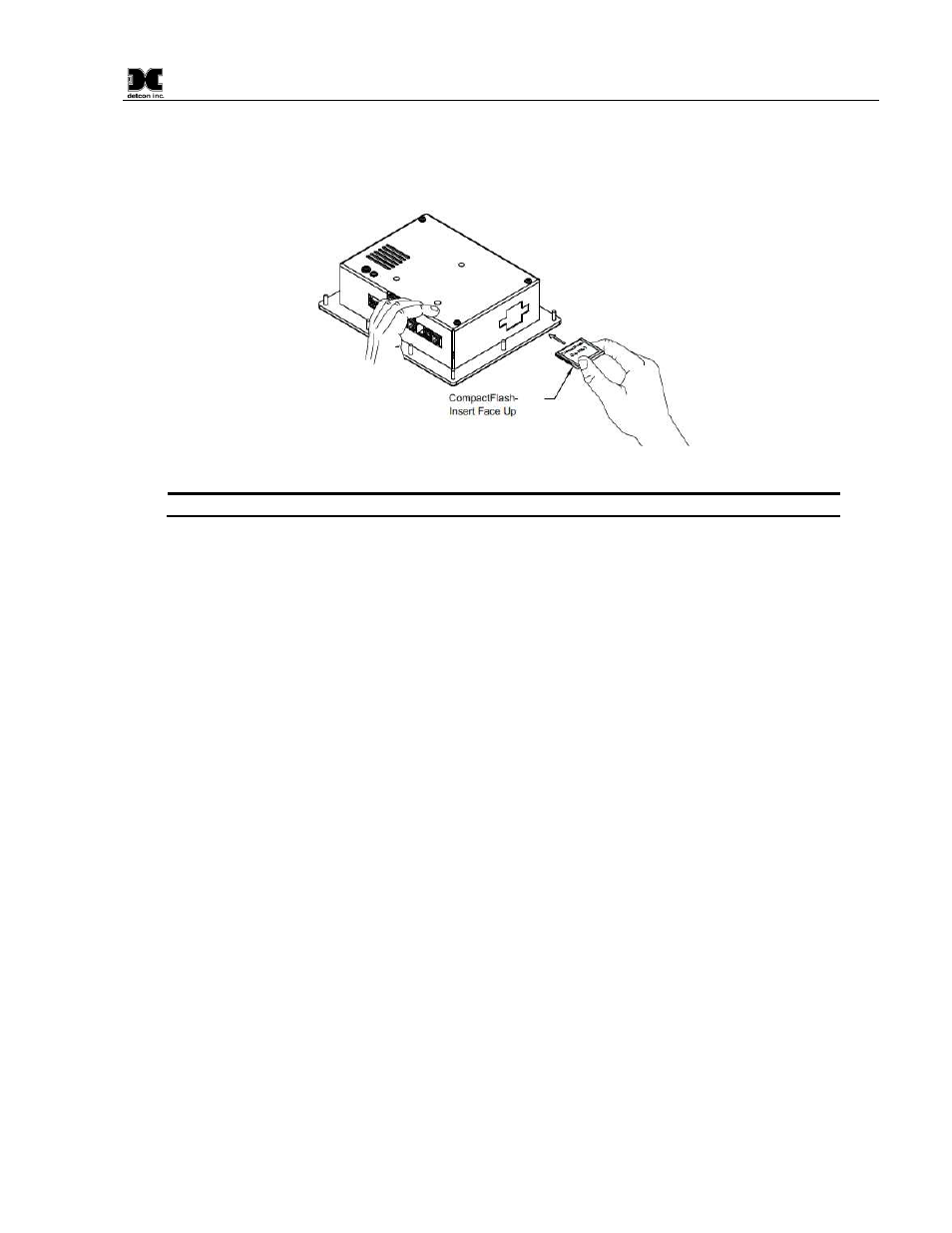

Figure 13 CompactFlash Card Installation
NOTE: Do not remove or insert the CompactFlash card while power is applied.
6.0 Operation
6.1 Main Display Screen
The Main Display screen of the MCX-32 controller displays eight channels of information at a time. One or
more ‘tabs’ may be displayed near the top of the channel display area. Each of these tabs displays information
for eight channels. Touching one of these tabs will cause the screen to display the eight channels associated
with that tab. In normal operation, the screen will loop through each tab displaying all of the channels that are
programmed into the controller. Each display of eight channels will remain on screen for approximately ten
seconds and will then move to the next tab if available. If there are any alarms active, the screen will remain
on the display with the channel that is in alarm. If more than one channel is in alarm and the channels are in
different tabs, the screen will alternate between the tabs with active alarms. Channel information is displayed
in rows and each row provides the channel number, the channel description, the current sensor reading, the gas
type, and any active alarms or faults. Selecting a channel on the screen will open the Channel Details screen
for that channel, and display all of that channel’s information.
