6.3.7 Modbus Utilities Screen
The Modbus Utilities screen provides the ability to check the status of all Modbus™ addresses for the MCX-
32 controller which includes all 64 channel addresses, all 15 RL-4 addresses and all 16 AO-4 addresses. The
information displayed consists of the Modbus Address, Status, COMM Error Count and COMM Error Total
Time.
The Device Diagnostics menu button will display information associated with the controller’s 64 channel
addresses, displaying 8 addresses per page and the Modbus™ address will be shown as a decimal value.
The RL4 Diagnostics menu button will display information associated with the controller’s 15 RL-4 addresses,
displaying 5 addresses per bank and the Modbus™ address will be shown as a hexadecimal value.
The AO4 Diagnostics menu button will display information associated with the controller’s 16 AO-4
addresses, displaying 8 addresses per page and the Modbus™ address will be shown as a hexadecimal value.
Selecting the RESET ALL COUNTERS menu button will reset the COMM Error Count and the COMM Error
Total Time values to zero.

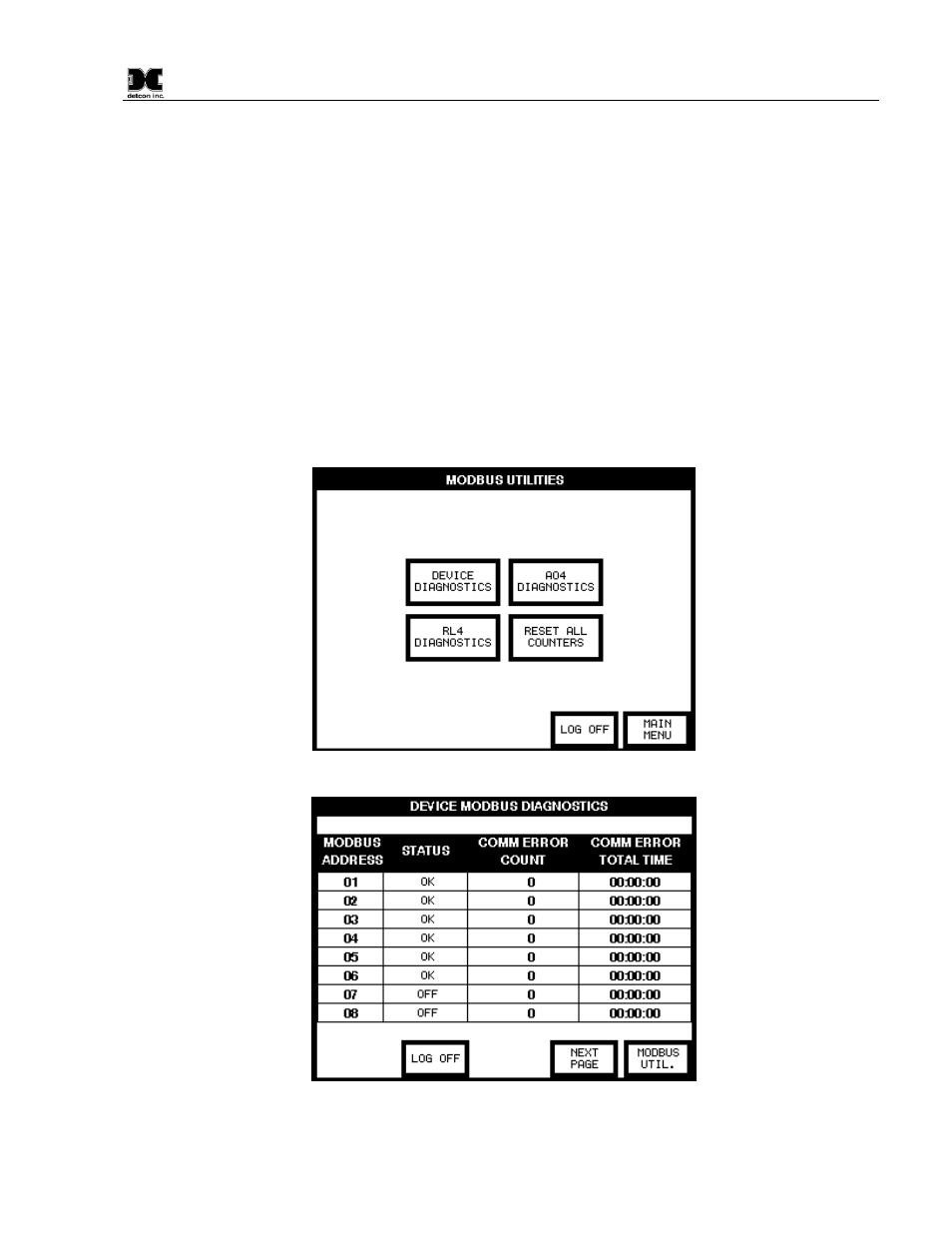

Figure 24 Modbus Utilities
Figure 25 Device Modbus Diagnostics Screen
