6.3.10 Display Settings Screen
The Display Settings screen allows the adjustment of the screen brightness and contrast, the calibration of the
screen touch panel, and the setting of the time and date.

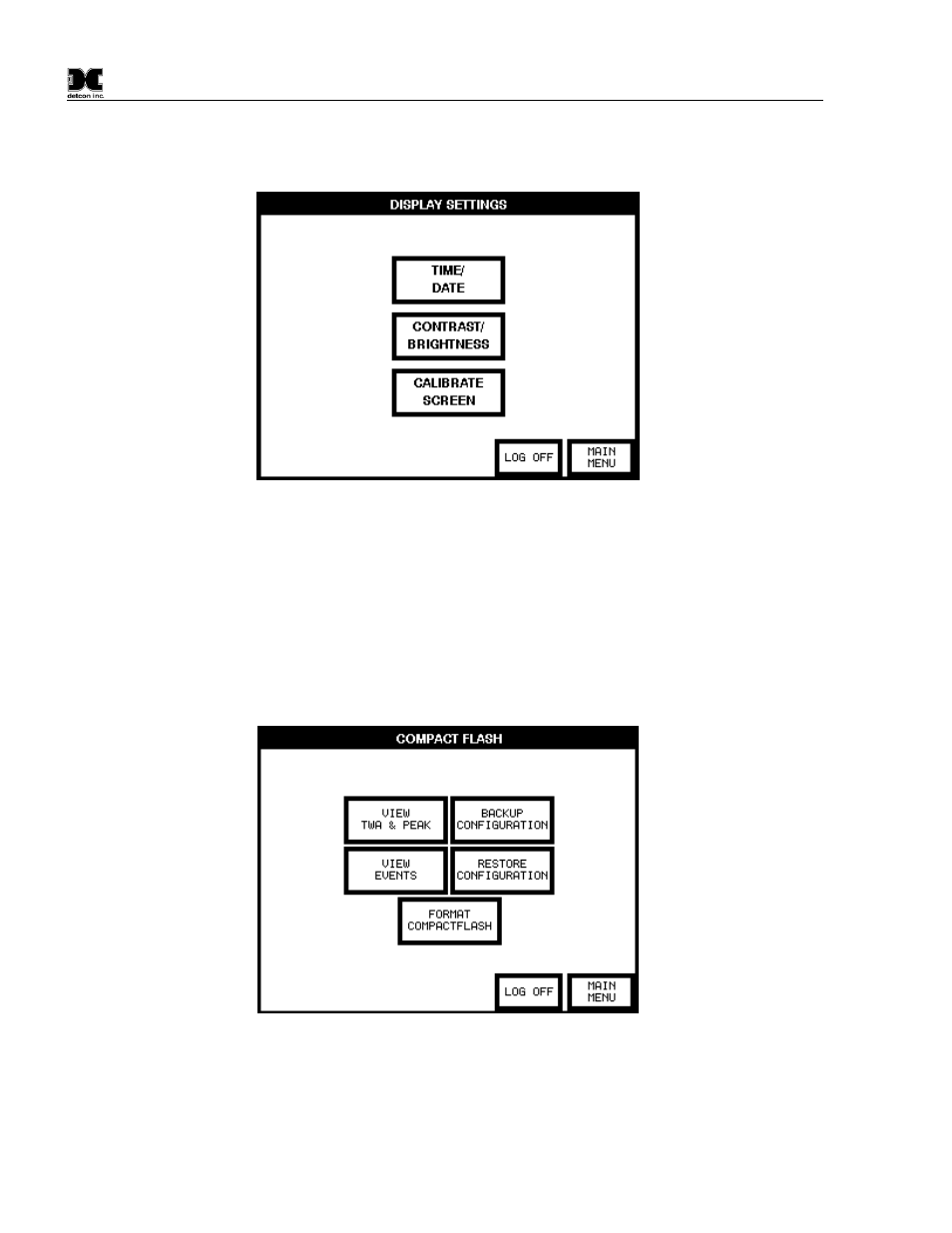

Figure 29 Display Settings
6.3.11 Restore Defaults
When selected, this button will restore default values to all of the channel’s alarm set points. This will not
affect the channel description or other parameters pertaining to each channel.
6.3.12 Compact Flash Screen
The Compact Flash screen allows the user to view data logging files from the Compact Flash (CF) card if one
is installed. The user can also reset (delete) data logging files and save & load controller configurations from
this screen. This screen (Figure 30) is displayed by selecting the COMPACT FLASH menu button from the
System Configuration screen.
Figure 30 Compact Flash Screen
Selecting the VIEW TWA & PEAK button displays the TWA & PEAK screen (Figure 31) which allows the
user to view the recorded time weighted average (TWA) and peak readings for each channel represented by its
assigned gas sensor. This data is calculated and recorded every 60 minutes and is displayed on the screen with
the date, time, channel number, TWA and peak readings. The user can scroll through the recorded data of a
specific date in increments of 10 or 100 by selecting the buttons on the right of the screen accordingly. The
