Again using the screwdriver, gently lever the fuse-holders out from
their slots. See Fig. 2.2.

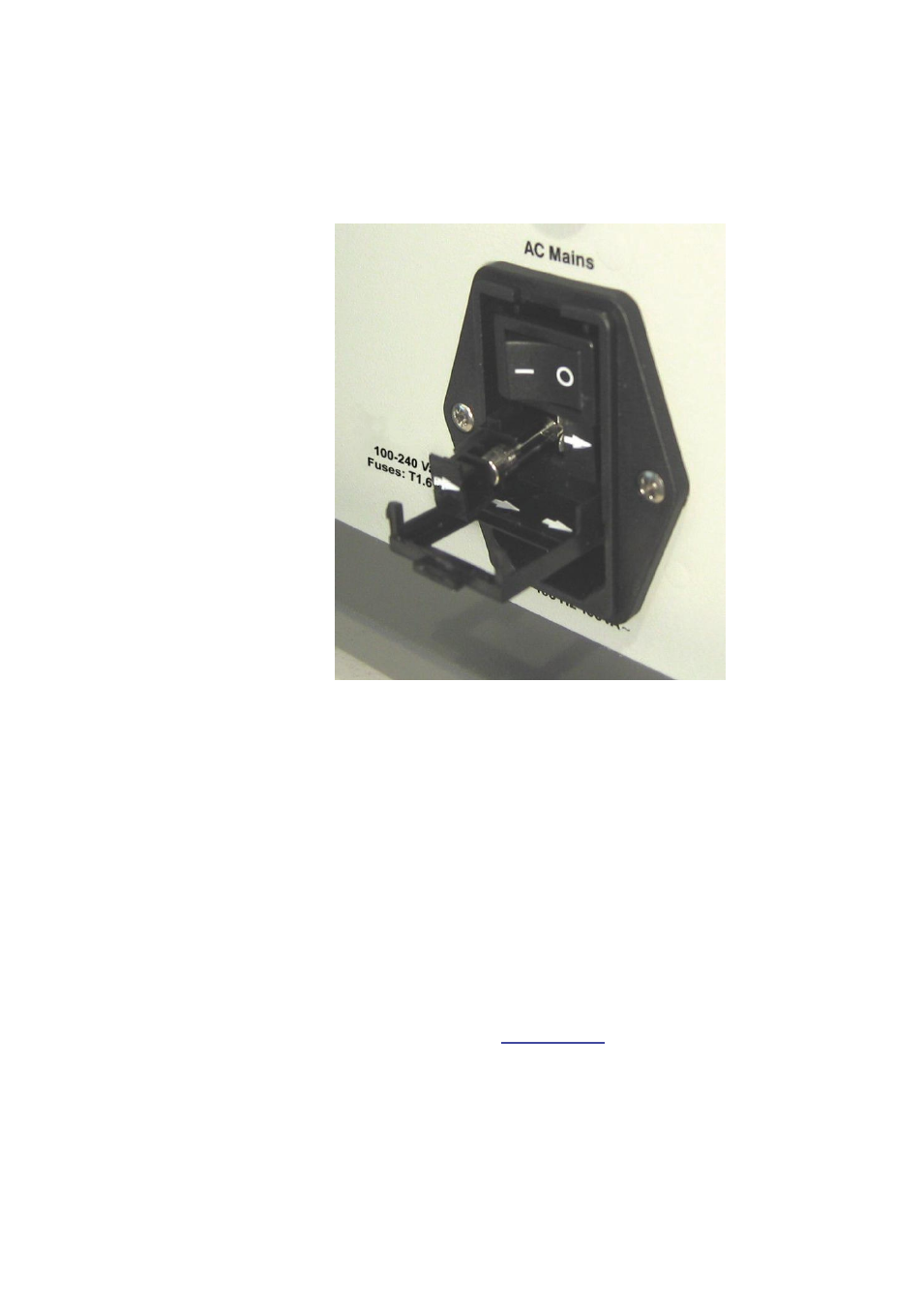

Fig.2.2. Inserting the fuses into the 1309’s fuse holder
Use two 1.6A slow-blow fuses (LumaSense No. VF0007), they are sup-
plied with the instrument.
When replacing the fuse-holders, ensure that the direction of the white
arrows on each holder matches the arrows marked on the covering flap.
2.2 Connecting the 1309 to the System Controller
The 1309 is connected to the System Controller by the IEEE interface
bus, over which the 1309 receives the commands and data which con-
trol it. Further information about the cables available from LumaSense
to connect the 1309 to the IEEE interface bus, and about the IEEE in-
terface of the 1309, are given in section 4.1 .
