M330 Manual Service 36
Warning: Electrical Shock Hazard! This equipment is to be serviced by trained
personnel only.
4. Program M330 Controller according to the procedure below.

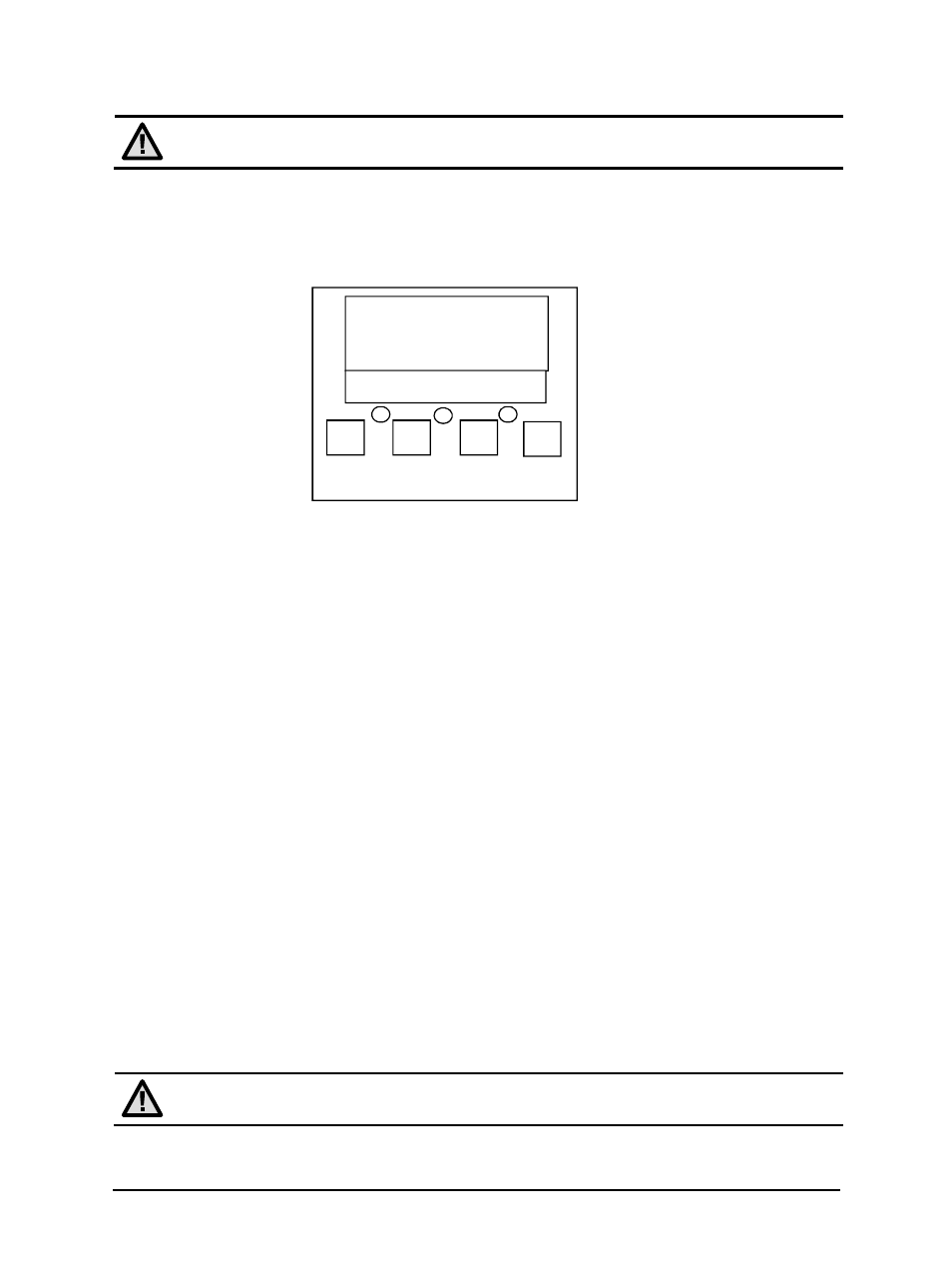

To gain access to the custom program, refer to the 4 square buttons on the face of the
controller and use this procedure.
1. Press 1 until ACCESS appears.
2. Press 2.
3. Press 4 until Level 3 appears.
4. Press 4 until 3 appears. Wait.
5. Press 1 until ALARMS and Summary Page appears.
6. Press 4 until 0 OUT 100 appears.
7. Press 2 until Alm1 Type, Rate of Change appears.
8. Press 2 until display shows Alm1 Setpoint.
9. Use UP/DWN buttons (3 and 4) to set this value to 25.
10. Press 2 until ALARMS, 0 OUT 100 appears.
11. Press 4 until User 2 Page appears.
12. Press 2 until Setpoint, 100 appears.
13. Use UP/DWN buttons (3 and 4) to set this value to 150.
14. Press 1 until 0 OUT 10, SP Page appears.
15. Press 2 until Rate Limit Val, 10 appears.
16. Use UP/DWN buttons (3 and 4) to set this value to 20.0.
17. Press 2.
18. Press 1.
19. When finished and to lock the controller, press 1 until ACCESS appears.
20. Press 2
21. Press 3 until Level 1 appears.
22. Press the round center button located above 2 and 3.
5. Close the rear cover and operate the M330. Set the blackbody temperature setpoint to
1600 °C. If the M330 does not reach 1600 °C in about 80 minutes after it reaches 300C,
you may have to re-adjust the SCR I-max control as described below.
6.6.1 I-max Setting
Warning: Electrical Shock Hazard! This equipment is to be serviced by trained
personnel only.
1 2 3 4
