LumaSense Technologies M330 User Manual
Page 30
M330 Manual
Service 30

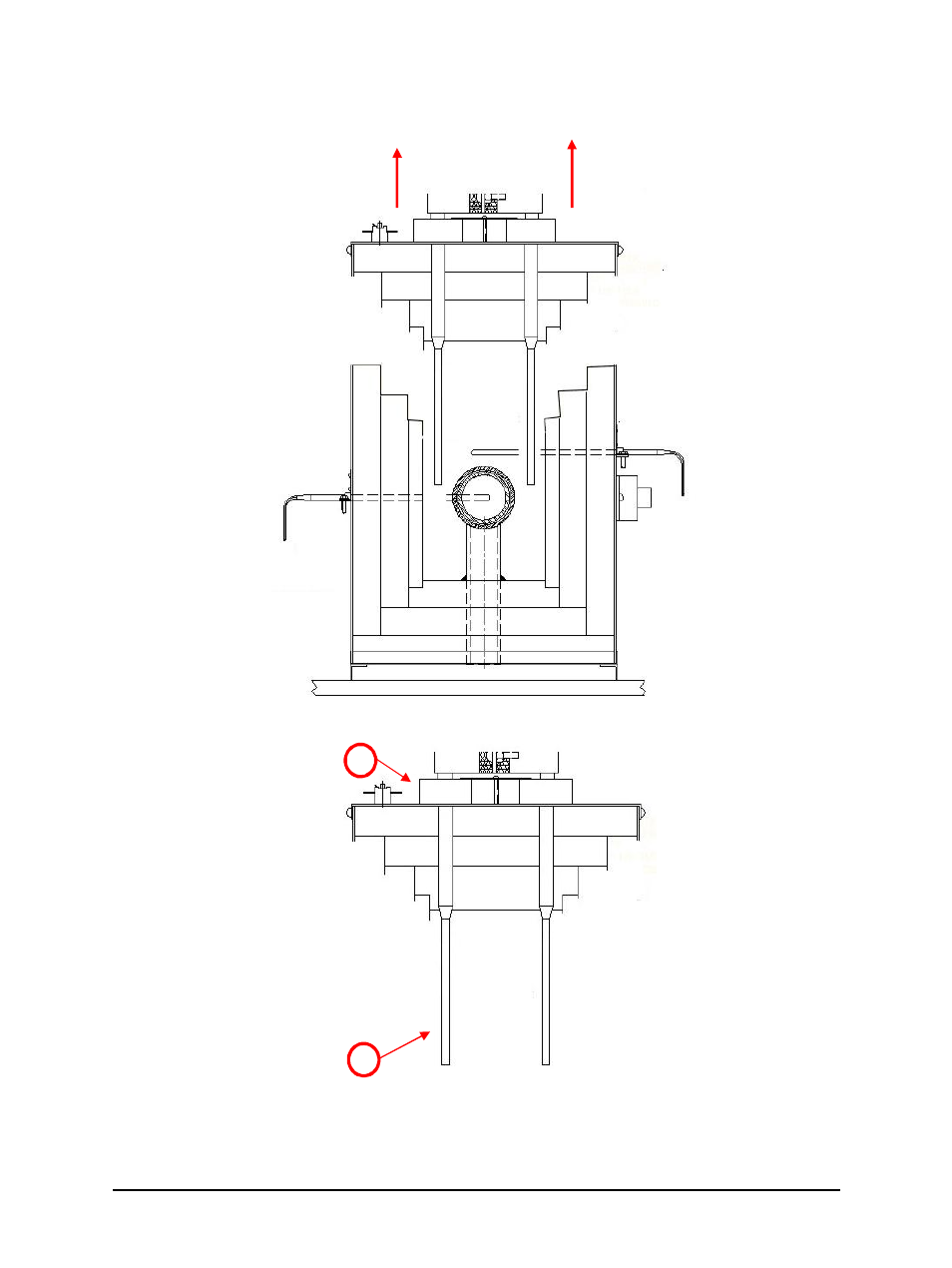

5. Pull top cover with heaters AND the three insulation blocks up and out.
6. Remove only the bad heating element by loosening the ceramic clamp for that heater.
No need to remove any other ceramic clamps.
7. Pull out the bad heating element and replace with the new one.
8. Replace ceramic clamp at top cover. Do not over tighten.
9. Replace top cover with all insulation boards.
