M330 Manual

Service 32

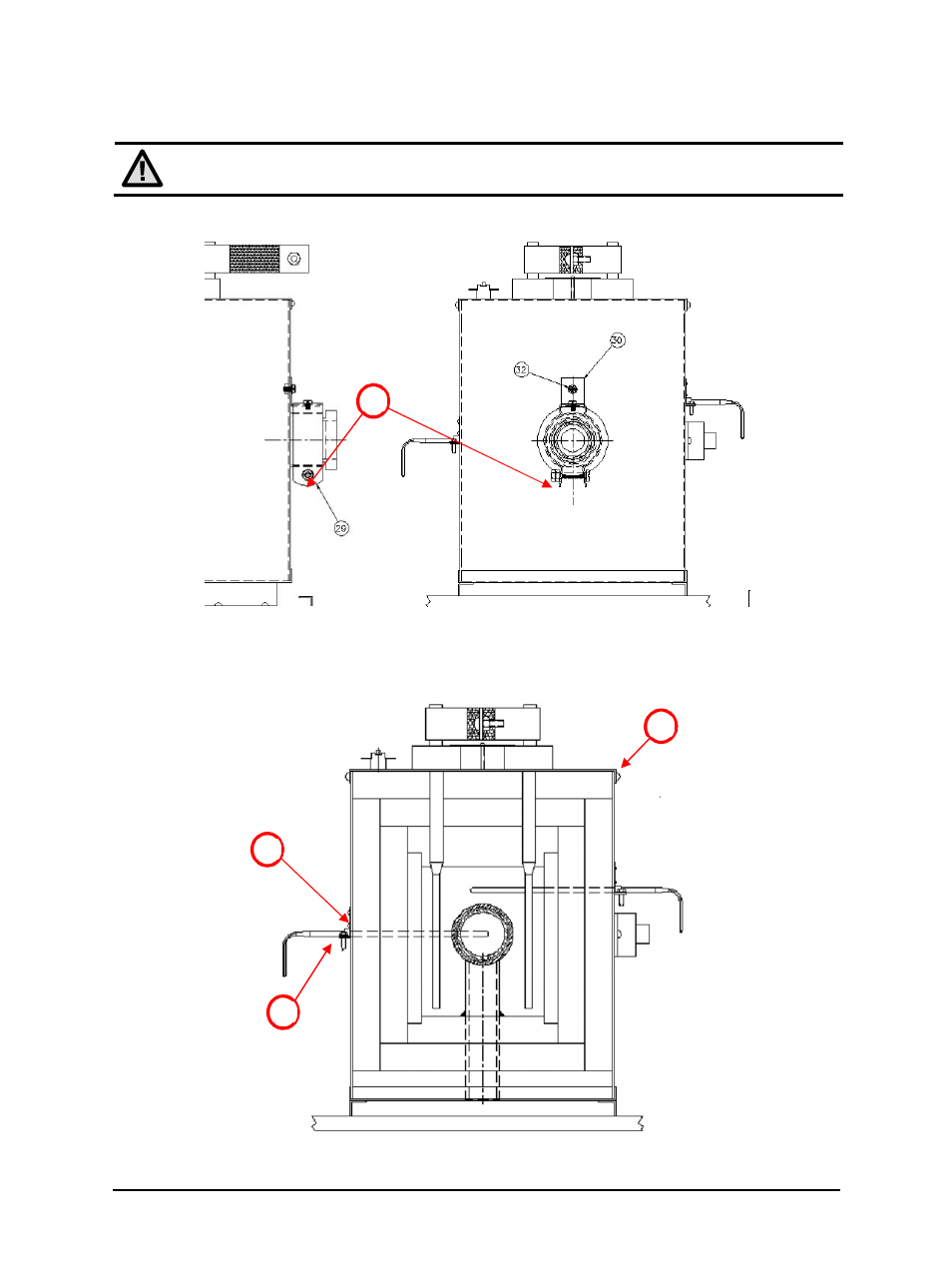

6.5 Outer Tube Replacement

Warning: Electrical Shock Hazard! This equipment is to be serviced by trained
personnel only.

1. Loosen clamp to allow tube to slide out.

2. Loosen clamp screws to remove thermocouple.
3. Remove thermocouple.

Side view

Front view

1

2

3

4
