M330 Manual Operation 18
4.5.2 RS485 Option

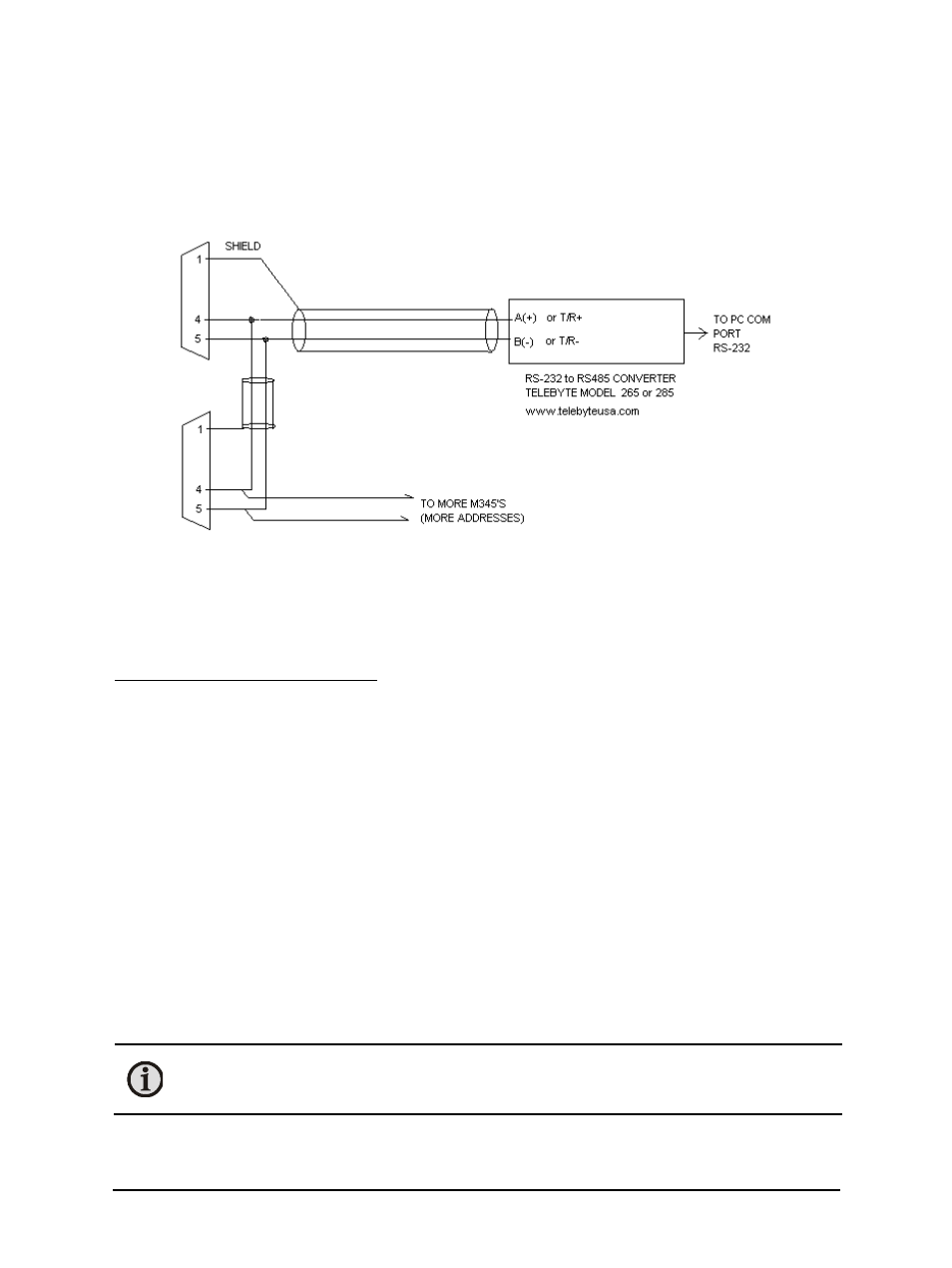

RS485 two wire is available as an option. The connection scheme is shown below:
RS485 for multi-drop applications
Each M330 address must be set to a different value.
To change the address of an M330:
1. Press the PAGE button. ACCESS appears in the lower display.
2. Press the SCROLL button. LEVEL 1 appears in the lower display.
3. Press the UP button until LEVEL 3 appears in the lower display.
4. Press the UP button until 3 appears and wait.
5. Press the PAGE button until H COMMS appears.
6. Press the UP button until J COMMS appears. (J COMMS is the RS485 output)
7. Press the SCROLL button until ADDRESS appears.
8. Press the UP or DOWN buttons to set new address and wait.
9. Press the PAGE button until ACCESS appears.
10. Press the SCROLL button.
11. Press the DOWN button until LEVEL 1 appears and wait.
12. Press the center, round button to return to normal display.
Note: A CD containing a sample program is included with your order. For more details
on communications, refer to the electronic communication manual also found on the
CD provided.
M330 Unit 1
(Address 1)
M330 Unit 2
(Address 2)
