User Manual of 9600/8600/7700/7600 Series NVR

169

11.1 Initializing HDDs

Purpose:

A newly installed hard disk drive (HDD) must be initialized before it can be used with your NVR.

Note:

A message box pops up when the NVR starts up if there exits any uninitialized HDD.

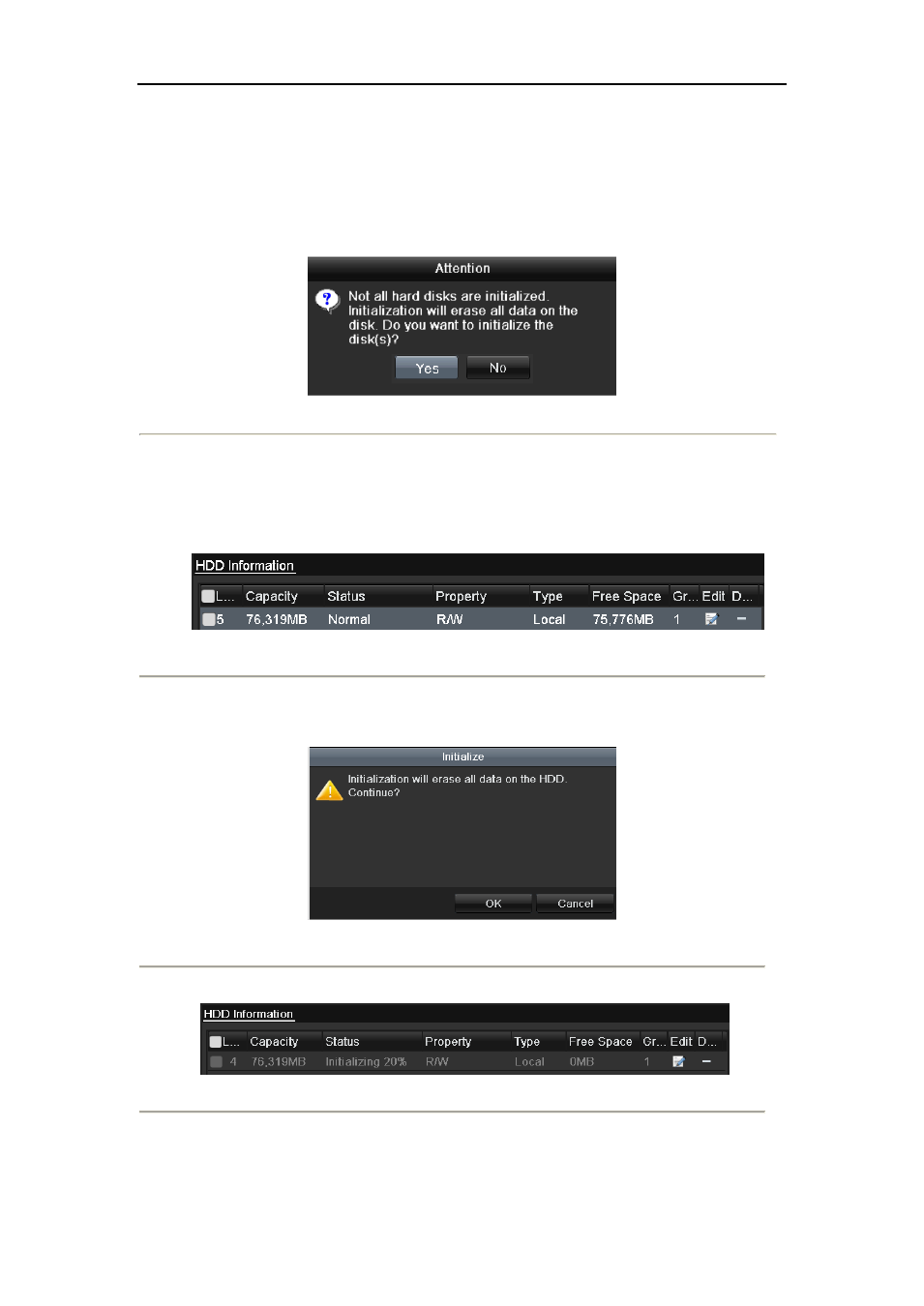

Figure 11. 1 Message Box of Uninitialized HDD

Click Yes button to initialize it immediately or you can perform the following steps to initialize the HDD.

Steps:

1. Enter the HDD Information interface.

Menu > HDD> General

Figure 11. 2 HDD Information Interface

2. Select HDD to be initialized.

3. Click the Init button.

Figure 11. 3 Confirm Initialization

4. Select the OK button to start initialization.

Figure 11. 4 Status changes to Formatting

5. After the HDD has been initialized, the status of the HDD will change from Uninitialized to Normal.
