User Manual of Digital Video Recorder
60
5) Select the channels which you want the motion detection event to trigger recording.
6) Click to save the settings.
7) Click to back to the upper level menu.
8) Click in the Motion Detection interface to save the settings. Exit the Motion
Detection interface.
3. Enter Record Schedule settings interface (Menu> Record> Schedule>Record). For detailed information
about record schedule settings, refer to step 2 in Chapter 5.2 Configuring Record Schedule.
Note: You need to select the Type as Motion in record schedule settings.

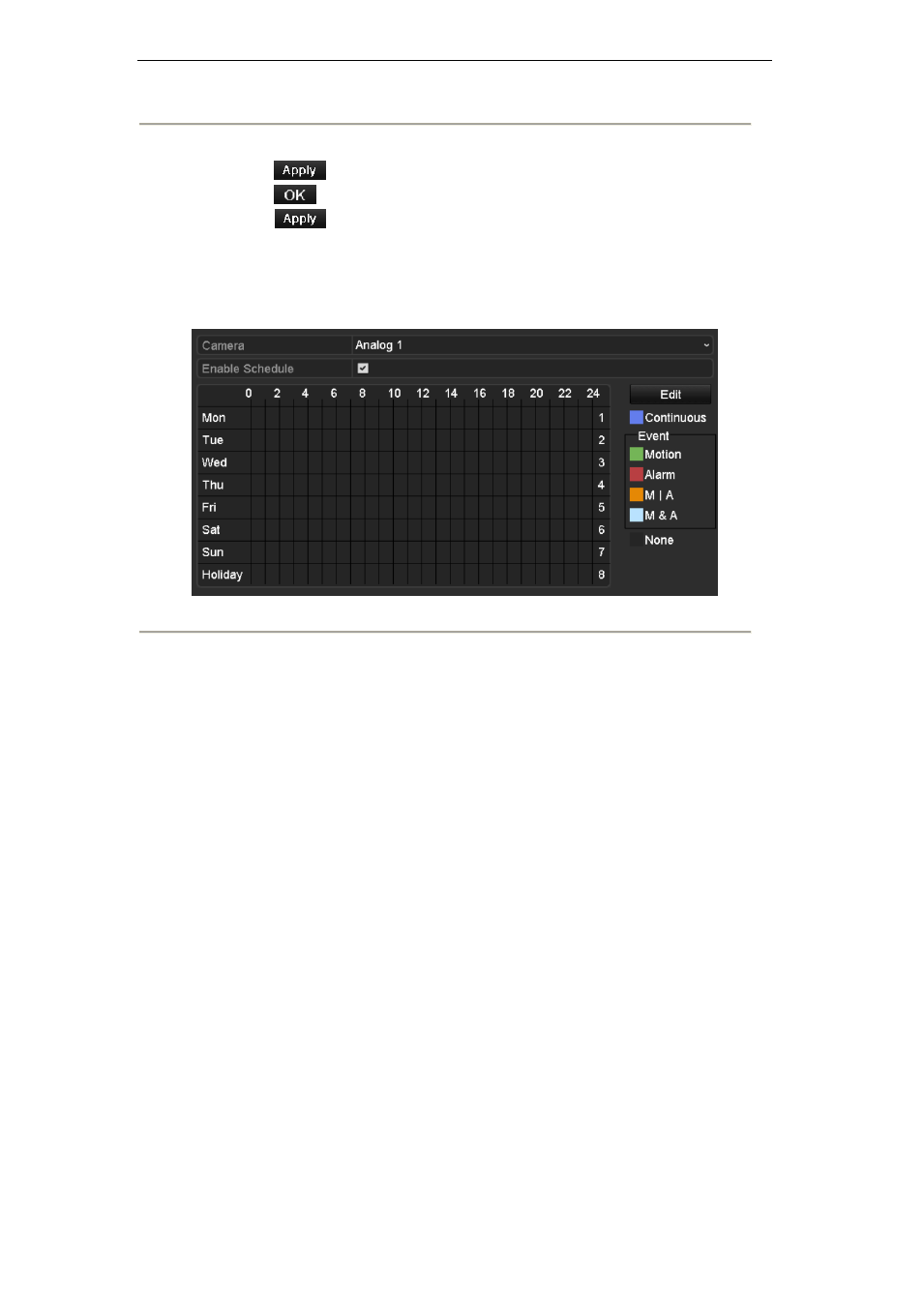

Figure 5. 17 Record Schedule
