User Manual of Digital Video Recorder
46
3. Double-click the preset you want to call in the Preset list.
4.2.3 Customizing Patrols
Purpose:
Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before moving
on to the next key point. The key points are corresponding to the presets. The presets can be set following the
steps above in Chapter 4.2.1 Customizing Presets.
Steps:
1. Enter the PTZ Control interface.
Menu>Camera>PTZ>More Settings
2. Select patrol number.
3. Click under Patrol option box to add key points for the patrol.

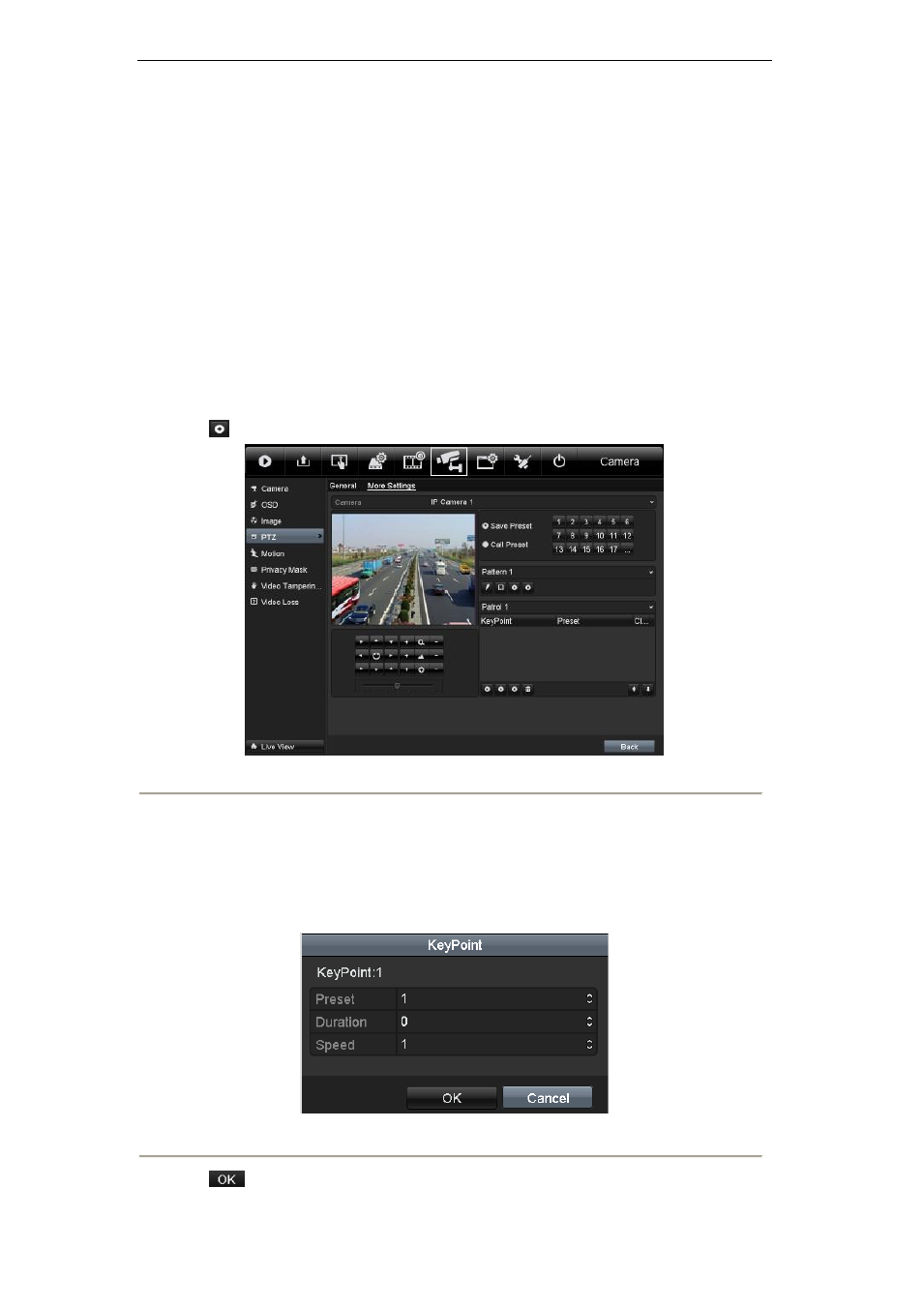

Figure 4. 6 PTZ- Add Key Point
4. Configure key point parameters, such as the preset No., duration of staying for one key point and speed of
patrol. The key point is corresponding to the preset. The Preset determines the order at which the PTZ
will follow while cycling through the patrol. The Duration refers to the time span to stay at the
corresponding key point. The Speed defines the speed at which the PTZ will move from one key point to
the next.
Figure 4. 7 Key point Configuration
5. Click to save the key point to the patrol.
