User Manual of Digital Video Recorder
12
1.1 Front Panel

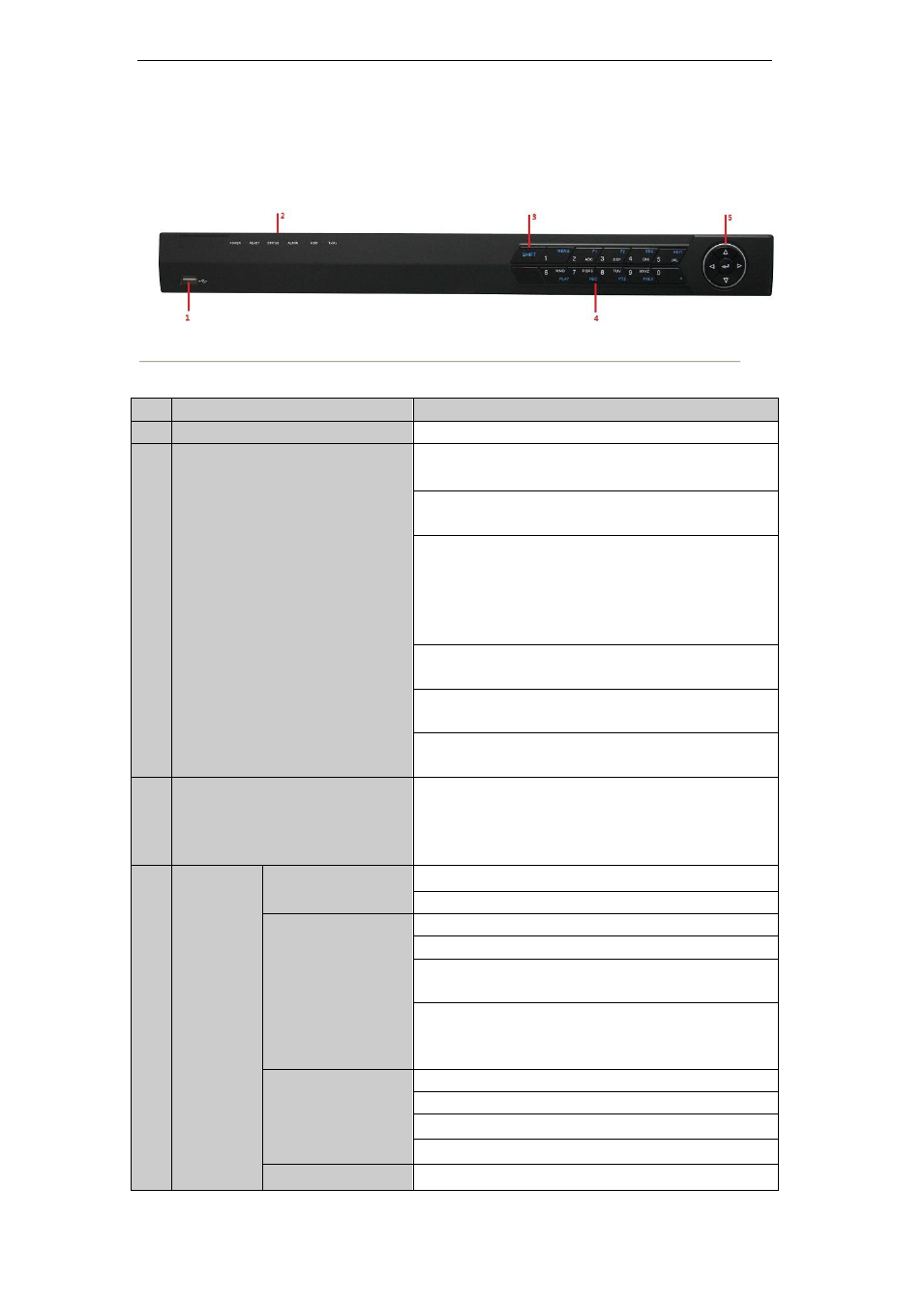

The front panel of the device is shown in Figure 1.1.
Figure 1. 1 Front Panel
Table 1. 1 Description of Front Panel
No.
Name
Function Description
1
USB Interface
Connects USB mouse or USE flash memory devices.
2
Status Indicators
POWER: the POWER indicator turns green when
NVR is powered up.
READY: The indicator light is green when the
device is running normally.
STATUS: 1.The light is green when the IR remote
control is enabled; 2.The light is red when the
function of the composite keys (SHIFT) are used; 3.
The light is out when none of the above condition is
met/
ALARM: the light is red when there is an alarm
occurring.
HDD: the indicator flickers red when HDD is
reading/writing.
Tx/Rx: TX/RX indicator flickers green when
network connection is functioning normally.
3
SHIFT
Switch between the numeric or letter input and
functions of the composite keys. (Input letter or
numbers when the light is out; Realize functions
when the light is red.)
4
Composite
Keys
1/MENU:
Enter numeral “1”;
Access the main menu interface.
2/ABC/F1:
Enter numeral “2”;
Enter letters “ABC”;
The F1 button when used in a list field will select all
items in the list.
In PTZ Control mode, it will turn on/off PTZ light
and when the image is zoomed in, the key is used to
zoom out.
3/DEF/F2:
Enter numeral “3”;
Enter letters “DEF”;
The F2 button is used to change the tab pages.
In PTZ control mode, it zooms in the image.
4/GHI/ESC:
Enter numeral “4”;
