22

Brocade VDX 8770-8 Hardware Reference Manual

53-1002564-04

Port numbering

2

27x40 GbE line card modules — In the dual-port section, the top row of ports is numbered from
1 through 9 and the lower row of ports is numbered 19 through 27 from top to bottom when
installed on the switch. The single ports on the bottom of the switch are numbered 10 through
18 from top to bottom. Refer to

Figure 7

.

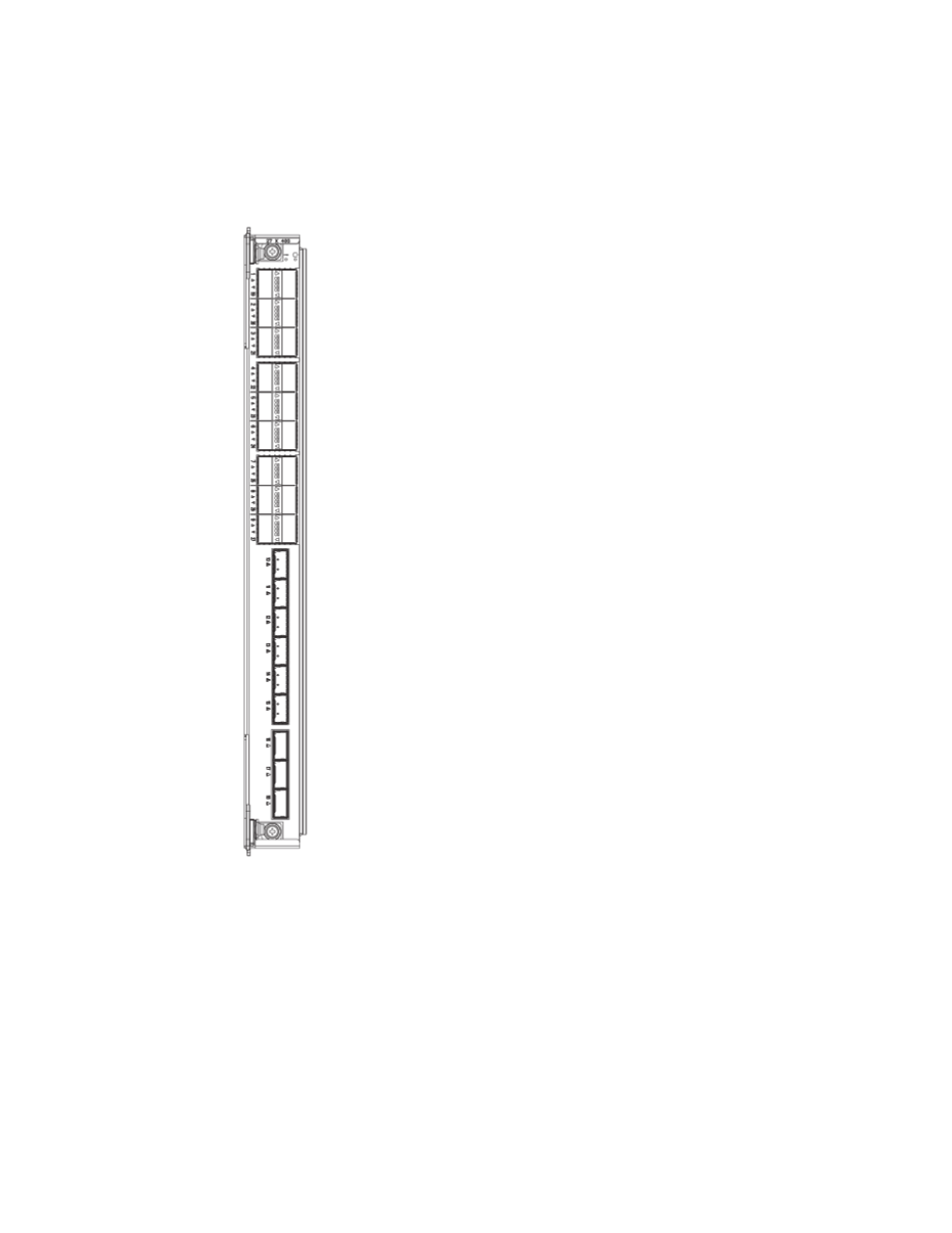

FIGURE 7

27x40 GbE line card
