Port numbering
2
Port numbering
The Brocade VDX 8770-8 line cards use the following port numbering method:
• 12x40 GbE line card modules — Ports are numbered from 1 through 12 from top to bottom
when installed in the switch. Refer to
Figure 4 .

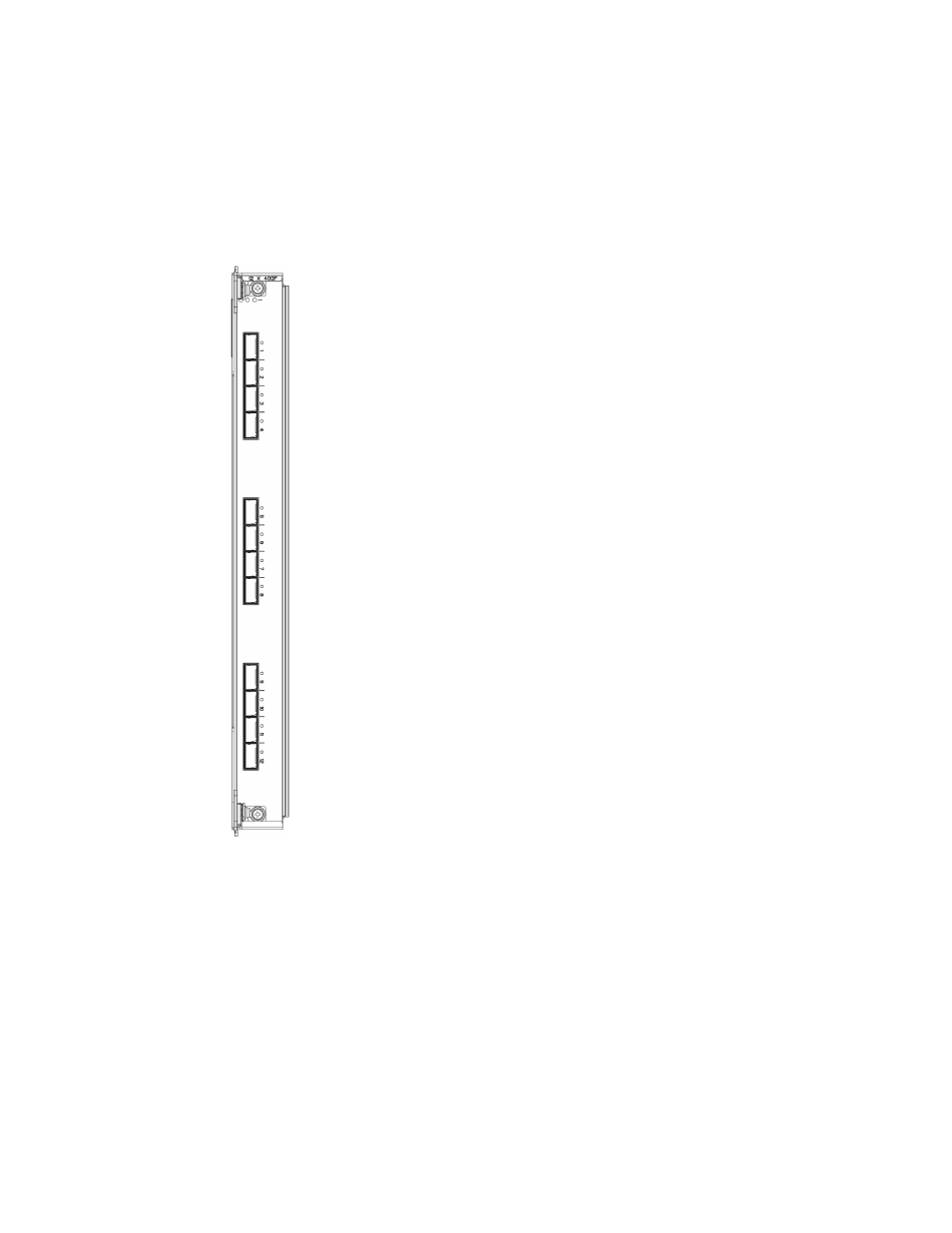

FIGURE 4 12x40 GbE line card
