Figure 5 – Brocade VDX 8770-8 Hardware Reference Manual User Manual
Page 40
20
Brocade VDX 8770-8 Hardware Reference Manual
53-1002564-04
Port numbering
2
•
48x1 GbE and 48x10 GbE line card modules — Ports are numbered from 1 through 48, from
top to bottom, with the odd-numbered ports on the right row and the even-numbered ports on
the left row when installed in the switch. Refer to
.

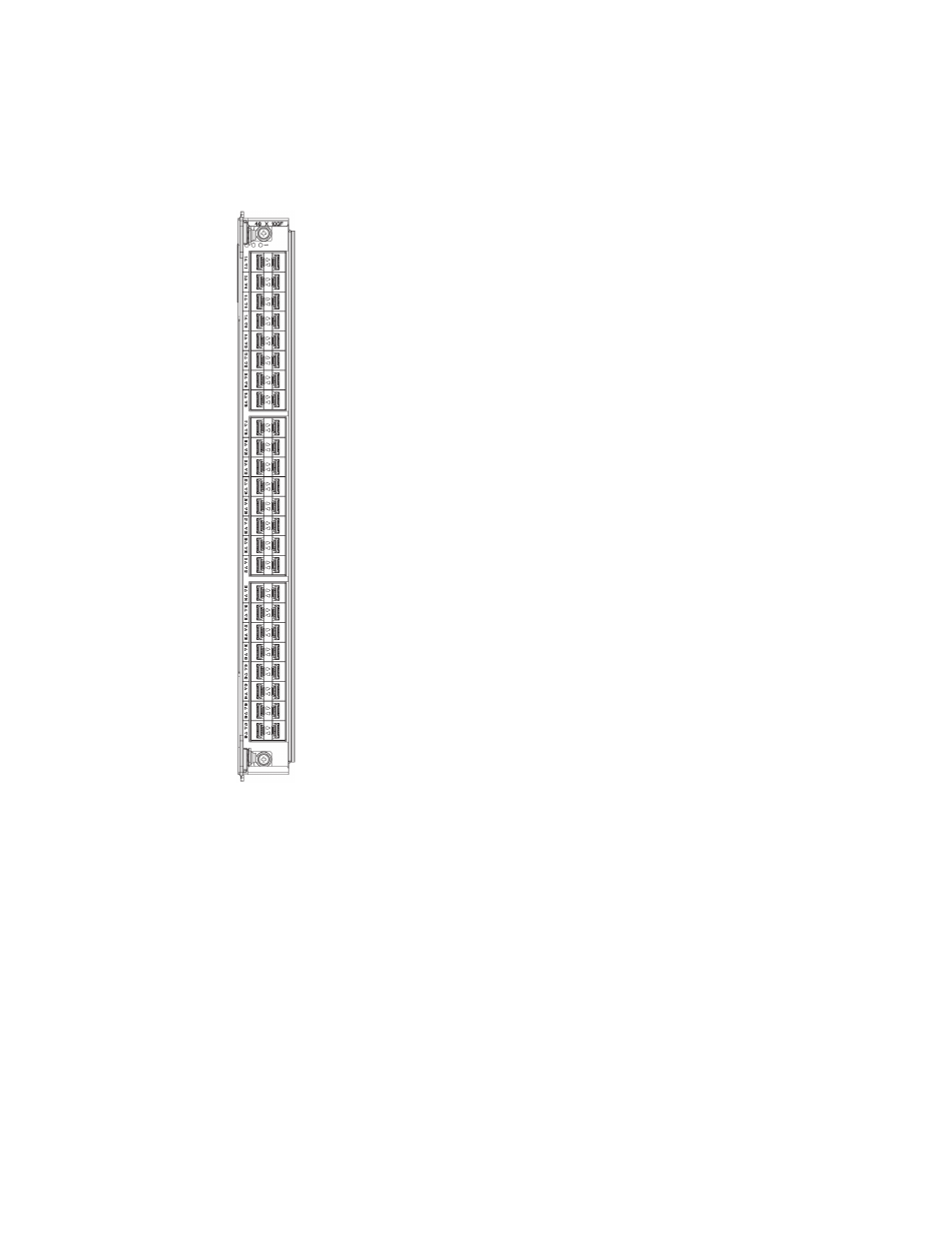

FIGURE 5
48x10 GbE line card (48x1 GbE line card is similar)
