4 Brocade VDX 8770-8 Hardware Reference Manual
53-1002564-04
Brocade VDX 8770-8 hardware components
1
Port side of the Brocade VDX 8770-8
NOTE
Airflow in the Brocade VDX 8770-8 is from the port side to the rear (fan side) of the chassis.
Figure 1 displays a sample configuration of the port side of the Brocade VDX 8770-8.

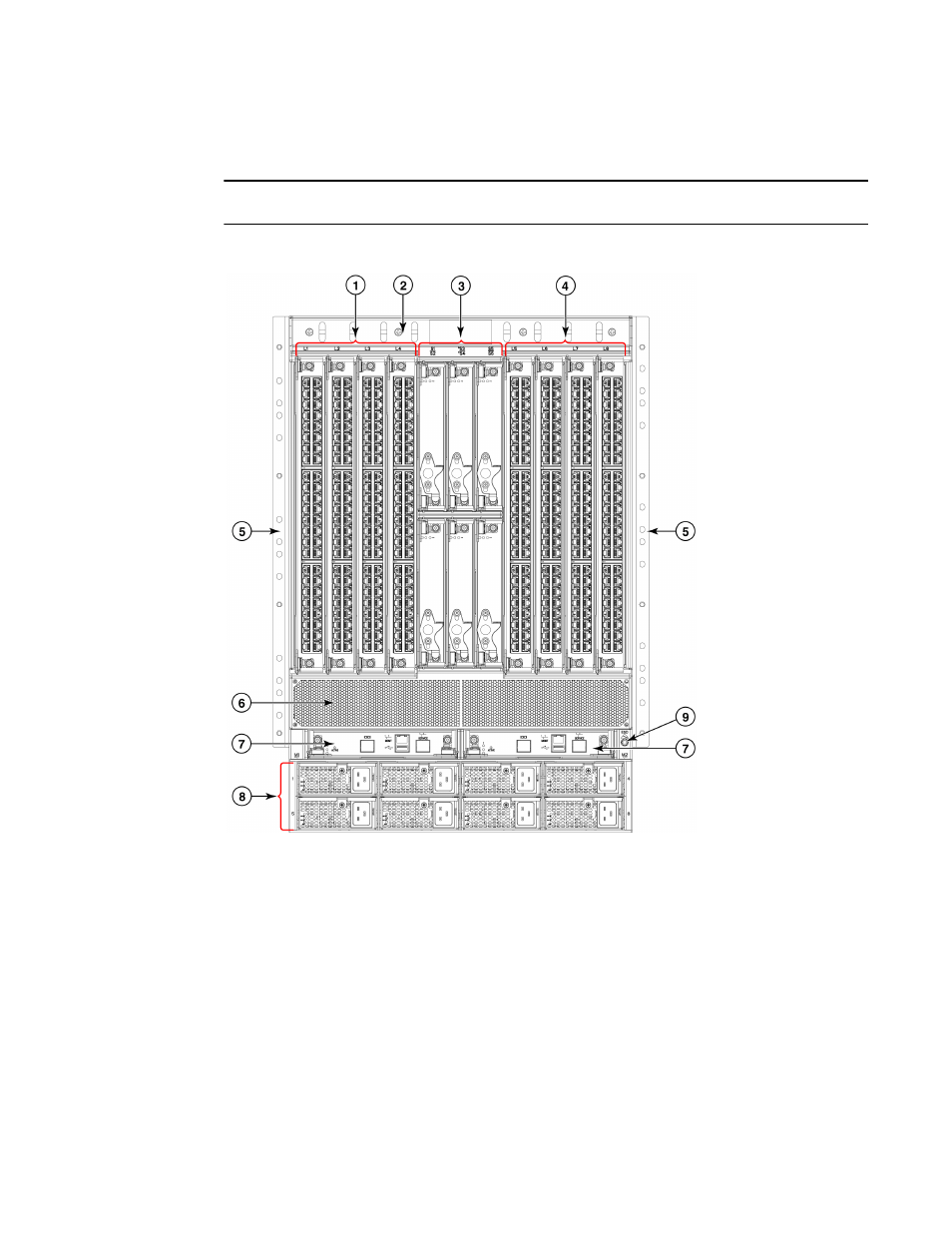

FIGURE 1 Port side of the Brocade VDX 8770-8 (sample configuration)
1 Line cards L1 through L4 (left to right) 6 Intake vent
2 Cable management comb 7 Management modules MM1 and MM2 (left to
right)
3 Switch fabric modules S1 through S6 (odd numbers
above, even numbers below, left to right) 8 Power supplies 1 through 8 (1 through 4 above,
left to right, 5 through 8 below, left to right))
4 Line cards L5 through L8 (left to right) 9 ESD jack
5 Mounting flanges
