Figure 6 – Brocade VDX 8770-8 Hardware Reference Manual User Manual
Page 41
Brocade VDX 8770-8 Hardware Reference Manual
21
53-1002564-04
Port numbering
2
•
48x10G-T line card modules — Ports are numbered from 1 through 48, from top to bottom, with
the odd-numbered ports on the right row and the even-numbered ports on the left row when
installed in the switch. Refer to
.

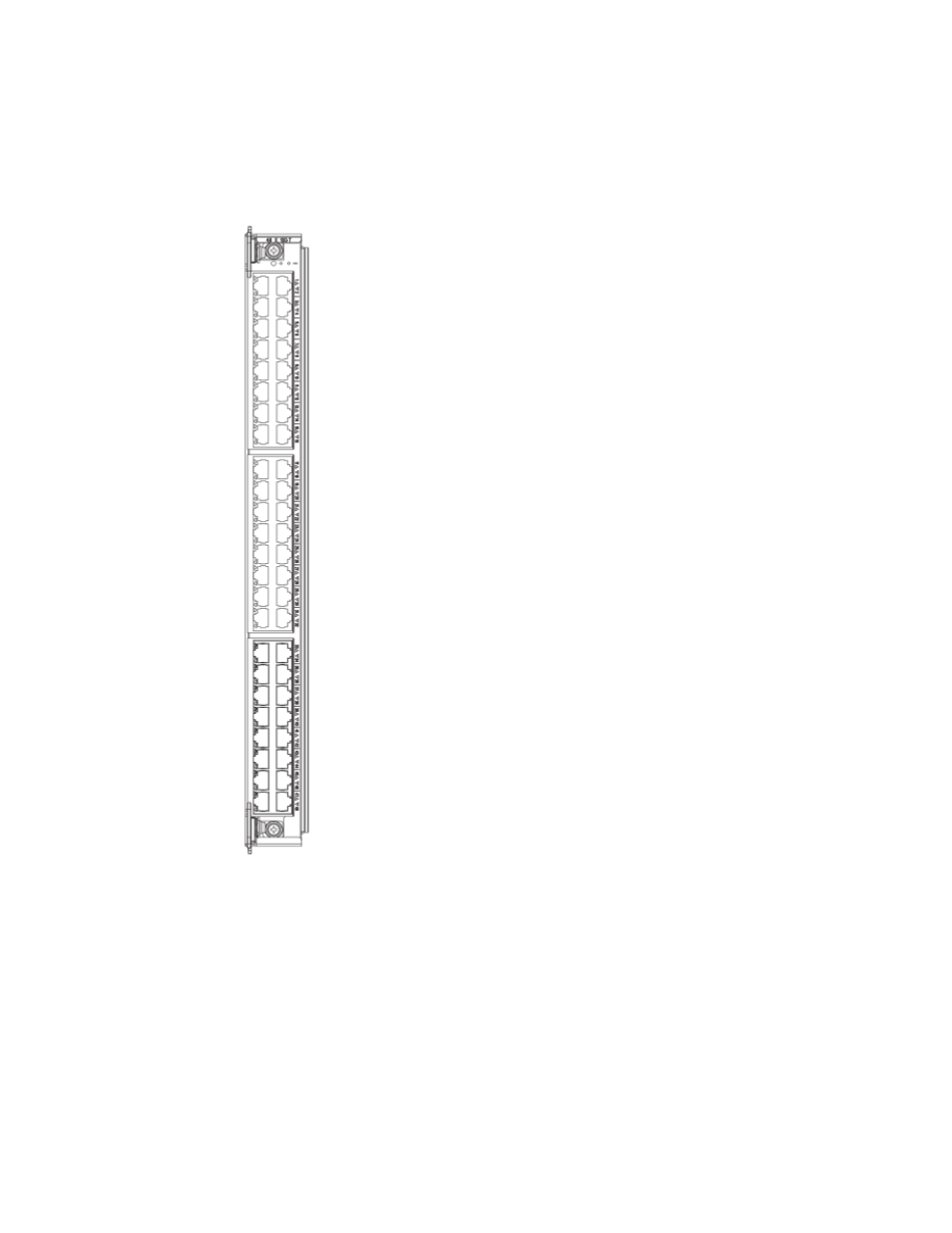

FIGURE 6
48x10G-T line card
