<6. Operation and Parameters>
6-7
IM 11M10B01-01E
6.1.6 Setting Calibration Gas Concentration “SEt.C”
Operation: Hold down the [MODE] key for 2 seconds, select “SEt.C” with the [▲], [▼] keys,
and press the [ENT] key.
Set the O
2
concentration of gas used for calibration. Alternatively, this setting can be performed
while performing calibration “CAL.” The gas concentration that can be set is restricted depending on
which calibration is performed (which depends on the specification in calibration “CAL”). The oxygen
concentration of air is fixed to 20.6% O
2
, so it cannot be set. Figure 6.7 shows a setting example in 3-
point calibration “ALL.” With respect to the input method of a numerical value, decimal point, and unit,
see Section 6.6.
SEt.C
▼↓↑▲
MODE CAL
▼↓↑▲
▼↓↑▲
10.00
PPM
10.00
PPM
1000 1000
PPM PPM
%
%
%
%
10. 00
1000
10. 00
1000
[ENT] [ENT]
[ENT]
[ENT] [ENT]
To “rEV”
Hold down
for 2 seconds.
Return to “SEt.C.”
10 ppm gas concentration
is confirmed.
1000 ppm gas concentration
is confirmed.

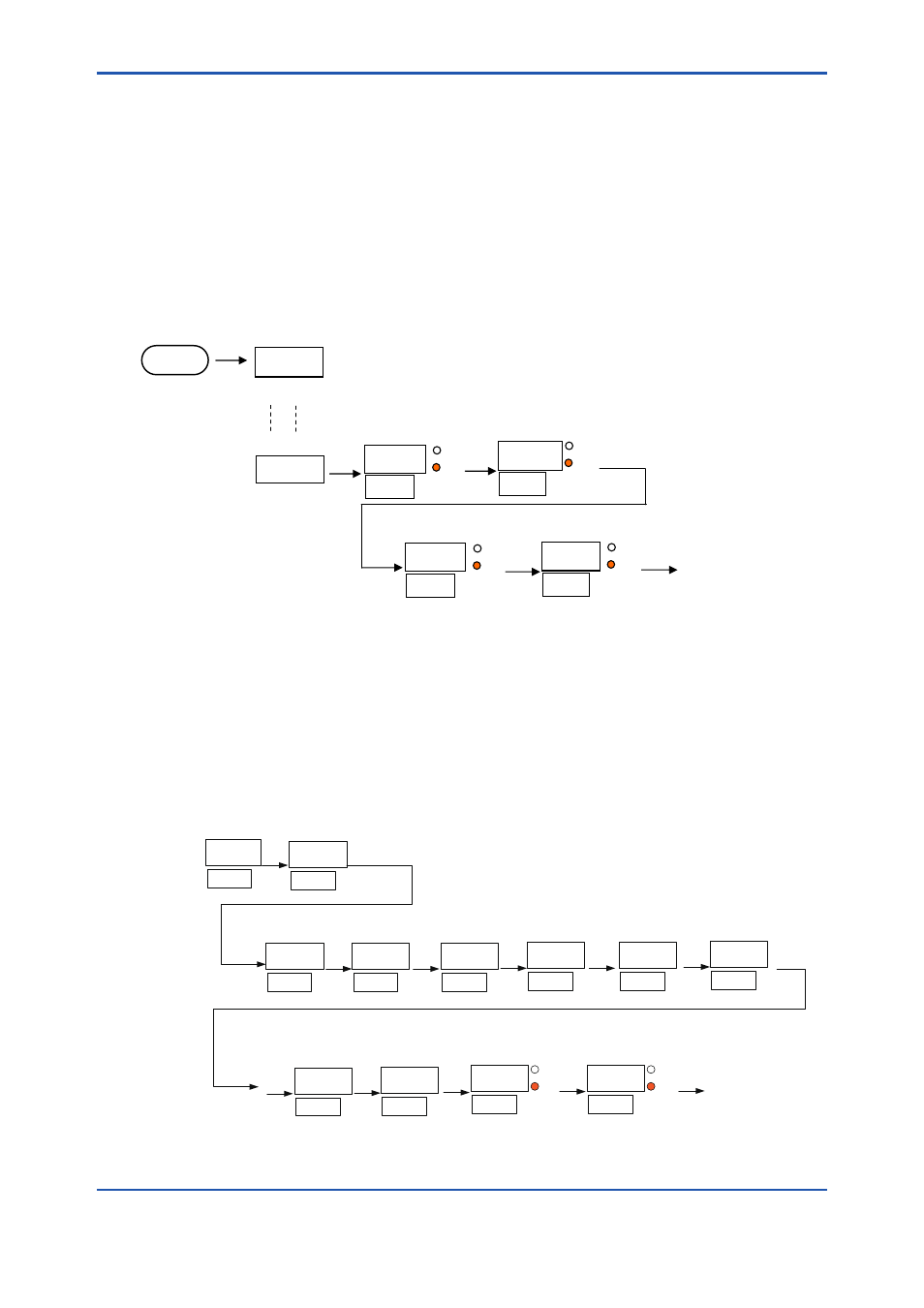

Figure 6.7 Setting Calibration Gas Concentration “SEt.C”
6.1.7 Setting Sensor Constant “SEnS”
Operation: Hold down the [MODE] key for 2 seconds, select “SEnS” with the [▲], [▼] keys,
and press the [ENT] key.
Be sure to enter the sensor constant when replacing sensors. With respect to the sensor constant,
the following five parameters are available: dZ1, dS1, dZ4, dS4, and Con4, which are on the constant
tag of the sensor. Be sure to enter the right parameter. Figure 6.8 shows a setting example. These
constants are specific to the sensor and remain the same for all operations. With respect to the input
method of a numerical value, decimal point, and unit, see Section 6.6.
dZ1
00Ab
dZ1 dS1
AE0E
dS1
Con4
PPM
1021
Con4
PPM
dZ4
FF79
dZ4
dS4
AC75
dS4
[ENT]
[ENT] [ENT] [ENT] [ENT]
[ENT] [ENT]
[ENT] [ENT] [ENT]
[ENT] [ENT]
% %
SEnS
0
0
A
1
F
A
000
0AC E0F F7C
C77 038
Entering password
Enter “0330” and press the [ENT] key.
Enter the zero sensor constant 1
(in hexadecimal). Input is confirmed. Input is confirmed.
Input is confirmed. Input is confirmed.
Input is confirmed.
Enter the span sensor constant 1
(in hexadecimal).
Enter the zero sensor constant 4
(in hexadecimal).
Enter the span sensor constant 4
(in hexadecimal).
Enter the gas concentration of Con4 (1000 ppm).
Enter the numerical
value only.
Return to “SEnS.”
*The entered sensor constants are updated altogether when the input of Con4 is confirmed.
If the input is interrupted halfway, it returns to the sensor constant before the input.
SEnS
Figure 6.8 Setting Sensor Constants “SEnS”
