Wiring

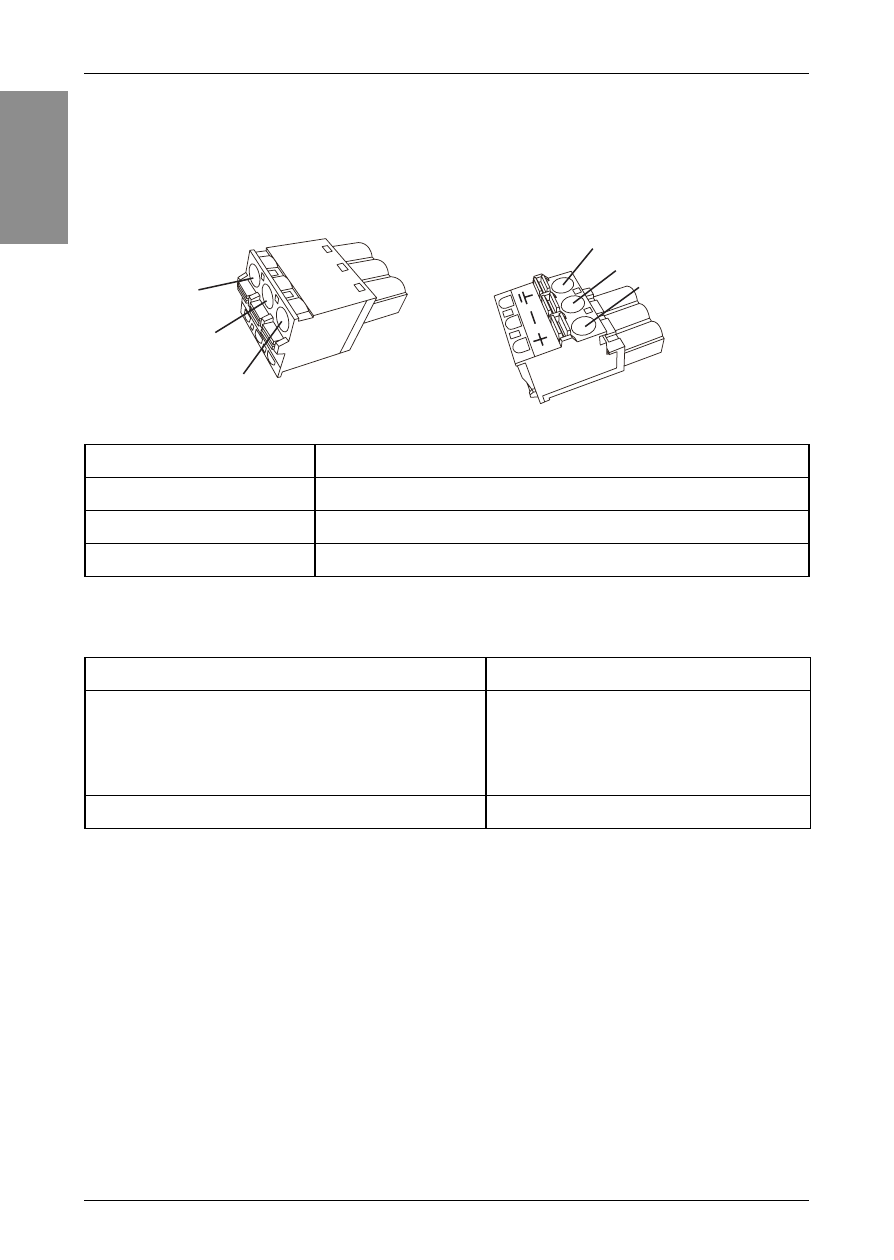

Power Connector Specifications: Spring Clamp Terminal
Blocks
Note: The DC power supply connector (plug) for GP-4200/4300/4400 Series is
PFXZCBCNDC1 (manufactured by Pro-face). The DC power supply connector (plug) for
GP-4500 Series / GP-4600 Series is PFXZCBCNDC2 (manufactured by Pro-face).
(Items are made by Phoenix Contact.)
Connection
Wire
+
24 Vdc
–
0 Vdc
FG
Grounded terminal connected to the panel chassis.
Recommended Driver
SZS 0.6x3.5 (1205053)
Recommended Pin Terminals
3201288 AI 0,75-10 GY
3200182 AI 1 -10 RD
3200195 AI 1,5 -10 BK
3202533 AI 2,5 -10 BU
Recommended Pin Terminal Crimp Tool
CRIMPFOX 6
-
+
FG
FG
-
+
GP-4200 Series / GP-4300
Series / GP-4400 Series
GP-4500 Series /
GP-4600 Series
