Wiring
1. Connecting the AC Power Cord
Field wiring terminal marking for wire type (75
°C (167 °F) Copper conductors
only)
*1 To prevent a short circuit caused by loose screws, use a crimp-type
terminal with an insulating sleeve.
How to connect the AC Power Cord
AC Power Cord
Grounding Wire
Power Cord
Double-insulated Wire
0.75 to 3.5 mm
2
(18-12AWG)
0.75 to 3.5 mm
2
(18-12AWG)

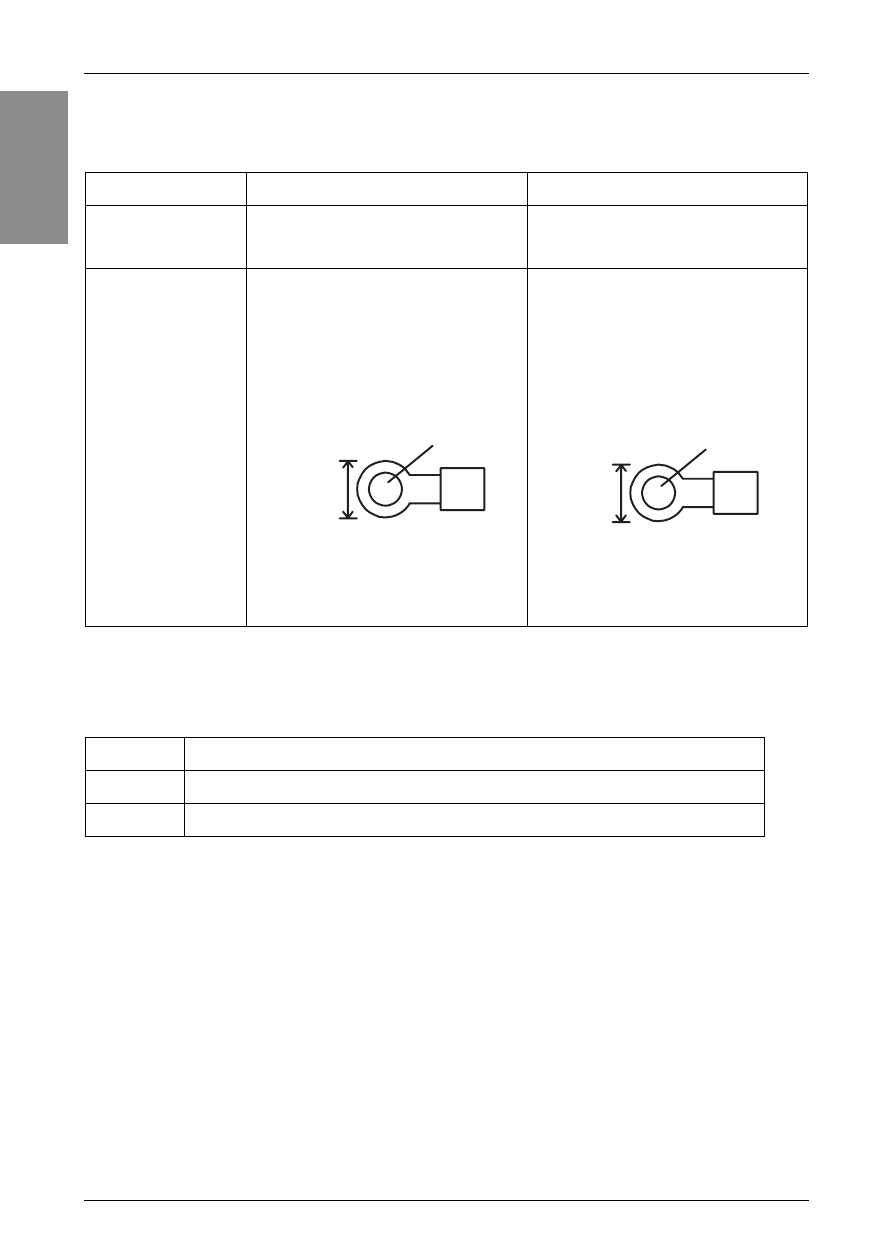

Recommended
Ring Terminal
*1
J.S.T Mfg. Co., Ltd
Compatible:
V1.25-M4 (18-16AWG)
V2-P4 (16-14AWG)
V5.5-S4 (14-12AWG)
(1)
φ4.3 mm (0.17 in.) or more
(2) Less than 7.2 mm (0.28 in.)
J.S.T Mfg. Co., Ltd
Compatible:
V1.25-M4 (18-16AWG)
V2-P4 (16-14AWG)
V5.5-S4 (14-12AWG)
(1)
φ4.3 mm (0.17 in.) or more
(2) Less than 7.2 mm (0.28 in.)
Step
Action
1
Confirm the power cord is not connected to the power supply.
2
Open the terminal strip’s clear plastic cover.
