Note that although the com port number setting is the same, different connections are required for
using RS-232 or RS-422/485. The pin outs for each port are shown.

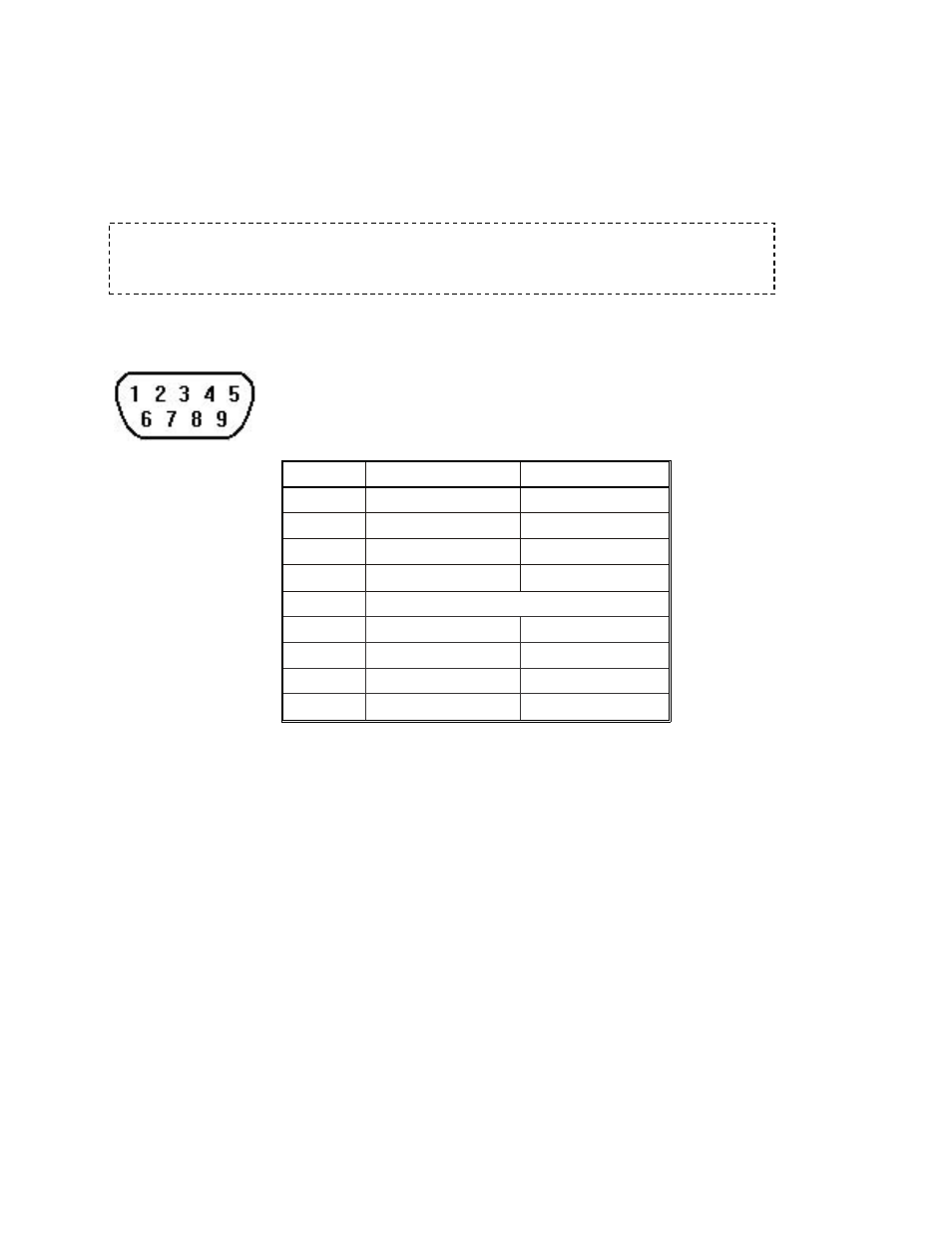

COM1 [RS-232]/COM3 [RS-232]

Pin out of DE9P (male) connector

Pin #

COM1[RS232]

COM3[RS232]

1

2

RXD

3

TXD

4

5

Signal Ground

6

7

RTS

TXD

8

CTS

RXD

9

Restrict cable length to less than 500 feet (150m) for RS-422/RS-485 devices and less than

50 feet (15m) for RS-232 devices in order to avoid communication problems.
