Series 35 crossflow, Double valves with pressure switches – Ross Controls SERPAR AND CROSSFLOW DOUBLE VALVES SERIES 35 User Manual
Page 15
www.rosscontrols.com
15
6.1 (155)
7.2 (185)
8.2 (209)
Flanged-port model G 3/4
7.4 (189)
Threaded-port model
Flanged-port model G 3/8 - G1/2
4.7 (119)
A
A
Treaded-port model
Flanged-port model
C
B
Series 35 Crossflow
TM
Double Valves with
Pressure Switches*
Size 4
Size 8, 12, 30

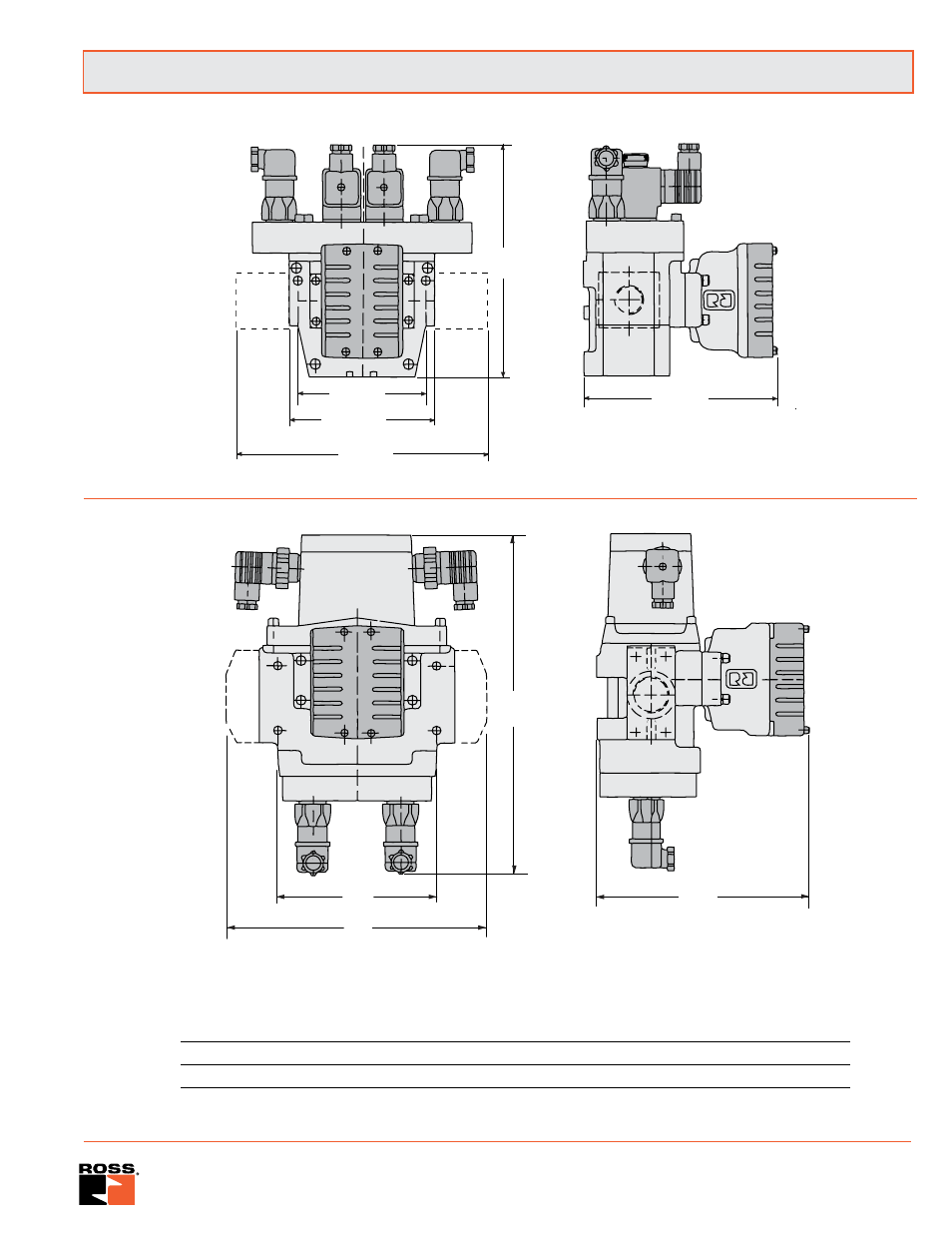

Dimensions inches (mm)
Dimensions inches (mm)
Size
A (Flanged-port model)
A (Threaded-port model)
B
C
8
8.8 (224)
6.7 (172)
7.2 (184)
11.2 (284)
12
9.1 (230)
7.0 (178)
8.6 (219)
12.4 (316)
30
12.4 (315)
10.3 (267)
11.1 (282)
16.5 (420)
For accessories please see page 17.
