14 ROSS CONTROLS ®
Size 4, 8, 12, 30
3
1
2
Model Number* Standard Flow
Valve
Port Flanged Ports Avg. C
V
Dimensions inches (mm) Weight
Size Size Inlet Right Inlet Left 1-2 3-4 A B C lb (kg)
4 3/8 3573C3270 3573C3276 3 7 8.2 (209) 6.1 (155) 7.6 (195) 8.4 (3.8)
4 1/2 3573C4270 3573C4276 3 9 8.2 (209) 6.1 (155) 7.6 (195) 8.4 (3.8)
4 3/4 3573C5230 3573C5236 3 11 8.2 (209) 6.1 (155) 7.6 (195) 8.4 (3.8)
STANDARD SPECIFICATIONS: For valves on this page.
Pilot Solenoids: Two, rated for continuous duty.
Standard Voltages: 24, 48, 110, 220 volts AC, 50/60 Hz; 24 volts DC;
110 volts DC. For other voltages, consult ROSS.
Voltages at pressure switches must not exceed 250 volts.
Power Consumption:
SIze 4:
Each solenoid, 35 VA maximum in-rush, 22 VA holding
on 50 or 60 Hz; 14 watts nominal on DC.
SIze 8, 12, 30: Each solenoid, 87 VA maximum in-rush, 30 VA
holding on 50 or 60 Hz; 14 watts nominal on DC.
Electrical Connections: Uses cord-grip connectors at solenoids.
Order connectors separately (see accessories page 17).
Electrical Connection:
Connectors according to DIN 43650 A (ISO 4400), must be ordered
separately.
Ambient Temperature: 40° to 120°F (4° to 50°C).
Media Temperature: 40° to 175°F (4° to 80°C).
Flow Media: Filtered air; 5 micron recommended.
Inlet Pressure:
SIze 4:
40 to 150 psig (2.5 to 10 bar).
Pressure Range:
Size 8, 12, 30: 30 to 125 psig (2 to 8.5 bar).
Enclosure Rating: IP 65 according to IEC-Publication 144 and
DIN 40050, Sheet 1.
CAUTION: If the system must be reset, electrical signals to both
solenoids must be removed to prevent the machine from immediately
recycling and producing a potentially hazardous condition.
*Pressure Switches &
Monitoring:
Valves without pressure switches
must not be used to control clutch/
brake mechanisms on press
machinery. Valves with pressure
switches must be used in conjunction
with an external monitoring device
to assist with OSHA compliance
(Ref. 1910.217).
The valves on this page do not have
a built-in monitor, and must only be
used in conjunction with an external
monitoring system. Such monitoring
system must be capable of inhibiting
the operation of the valve and
associated machinery in the event
of a failure within the valve.
Port Model Number* Avg. C
V
Dimensions inches (mm) Weight
Size Size Flanged Ports 1-2 3-4 A B C lb (kg)
8 1/2 3573B4638 3.5 10 8.8 (224) 7.2 (184) 11.1 (284) 11.4 (5.2)
8 3/4 3573B5638 4 14 8.8 (224) 7.2 (184) 11.1 (284) 11.4 (5.2)
8 1 3573B6638 4 14 8.8 (224) 7.2 (184) 11.1 (284) 11.4 (5.2)
12 3/4 3573B5632 8 15 9.0 (230) 8.6 (219) 12.4 (316) 15.4 (7.0)
12 1 3573B6632 8.5 19 9.0 (230) 8.6 (219) 12.4 (316) 15.4 (7.0)
12 11/4 3573B7632 9.0 21 9.0 (230) 8.6 (219) 12.4 (316) 15.4 (7.0)
30 11/4 3573B7630 20 42 12.4 (315) 11.1 (282) 16.5 (420) 33.9 (15.4)
30 11/2 3573B8630 21 43 12.4 (315) 11.1 (282) 16.5 (420) 33.9 (15.4)
*NPT port threads. For BSPP threads, order base with a “D” prefix.

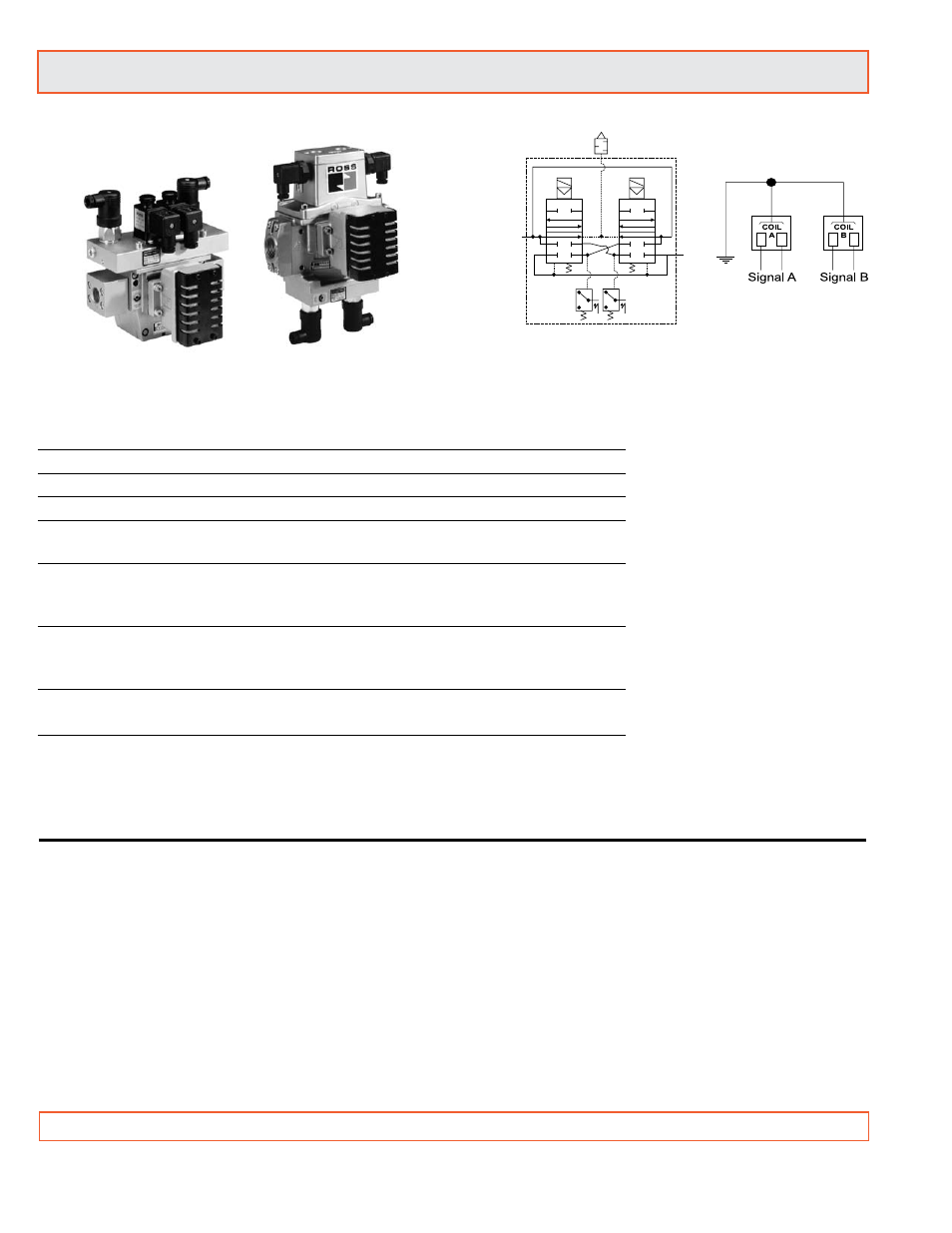

Series 35 Crossflow TM Double Valves with Pressure Switches*
Size 4 Size 8, 12, 30
IMPORTANT NOTE: Please read carefully and thoroughly all of the CAUTIONS on the inside back cover.
Valve Response Time (msec) = M + F • V
See page 18 for response time values.
