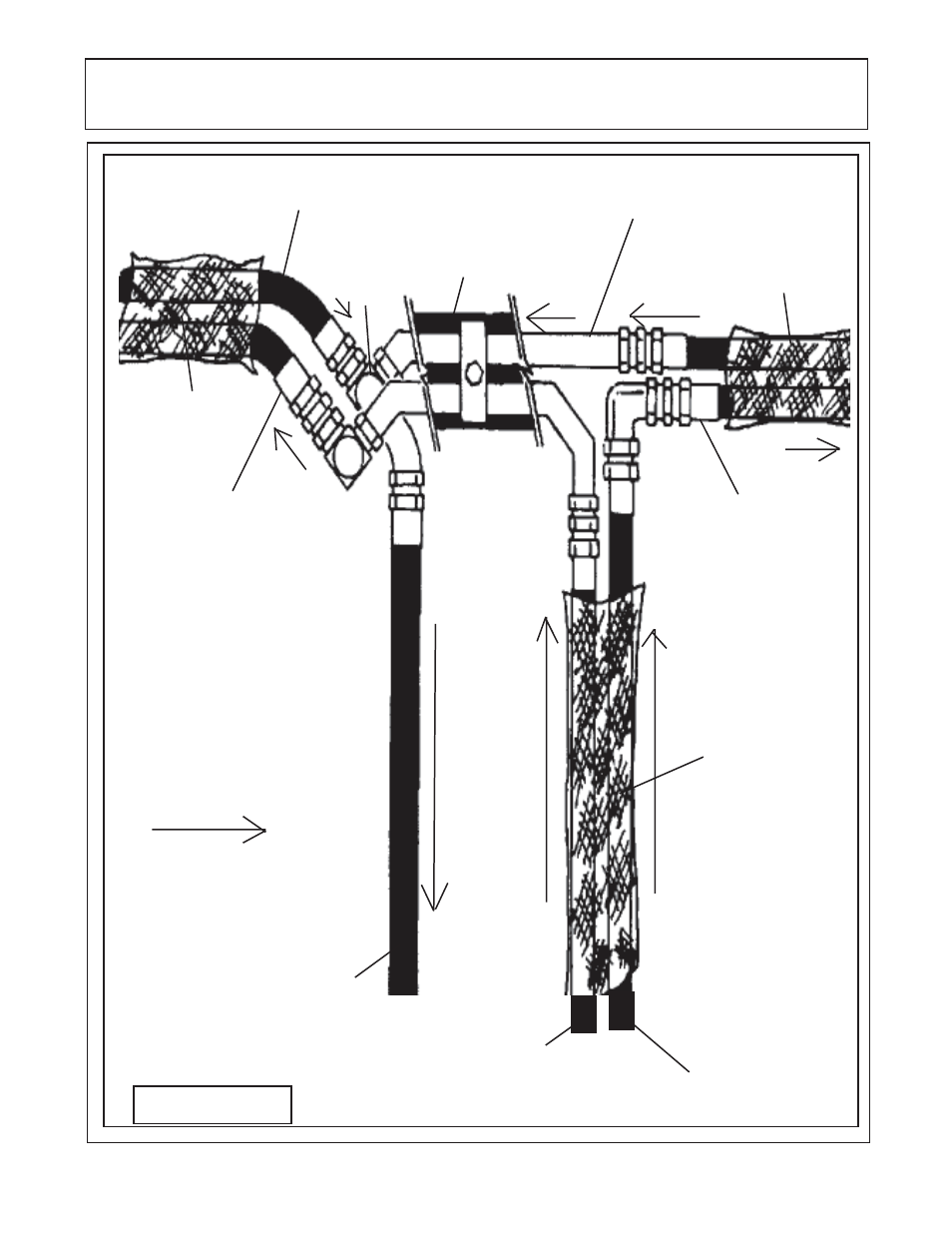

Pump & Motor Hydraulic Schematic

RIGHT WING

LEFT WING

Return to Tank from

Wet Tubes of RH Wing

Pressure from Pump

to RH Wing Motor

Return to Tank from

Wet Tubes of LH Wing

Pressure from Pump

to LH Wing Motor

Mainframe

Tube Cross Over

Pressure from Pump

to RH Wing Motor

Pressure from Pump

to LH Wing Motor

Return to Tank from

Wet Tubes of RH & LH

Wing

Hose Sleeving

Hose Sleeving

Hose Sleeving

Return

Line

Tee

TRACTOR

RH SIDE

TRACTOR

LH SIDE

TRACTOR

FRONT

TRACTOR

REAR

Indicates

Direction of

Flow

IN

IN

IN

IN

OUT

OUT

O

UT

Figure 22
