© 2004 Alamo Group Inc.

Section 3 - 7

Interstater (NH TS-100A , 115A , 125A & 135A Asy. Manual) 06/04

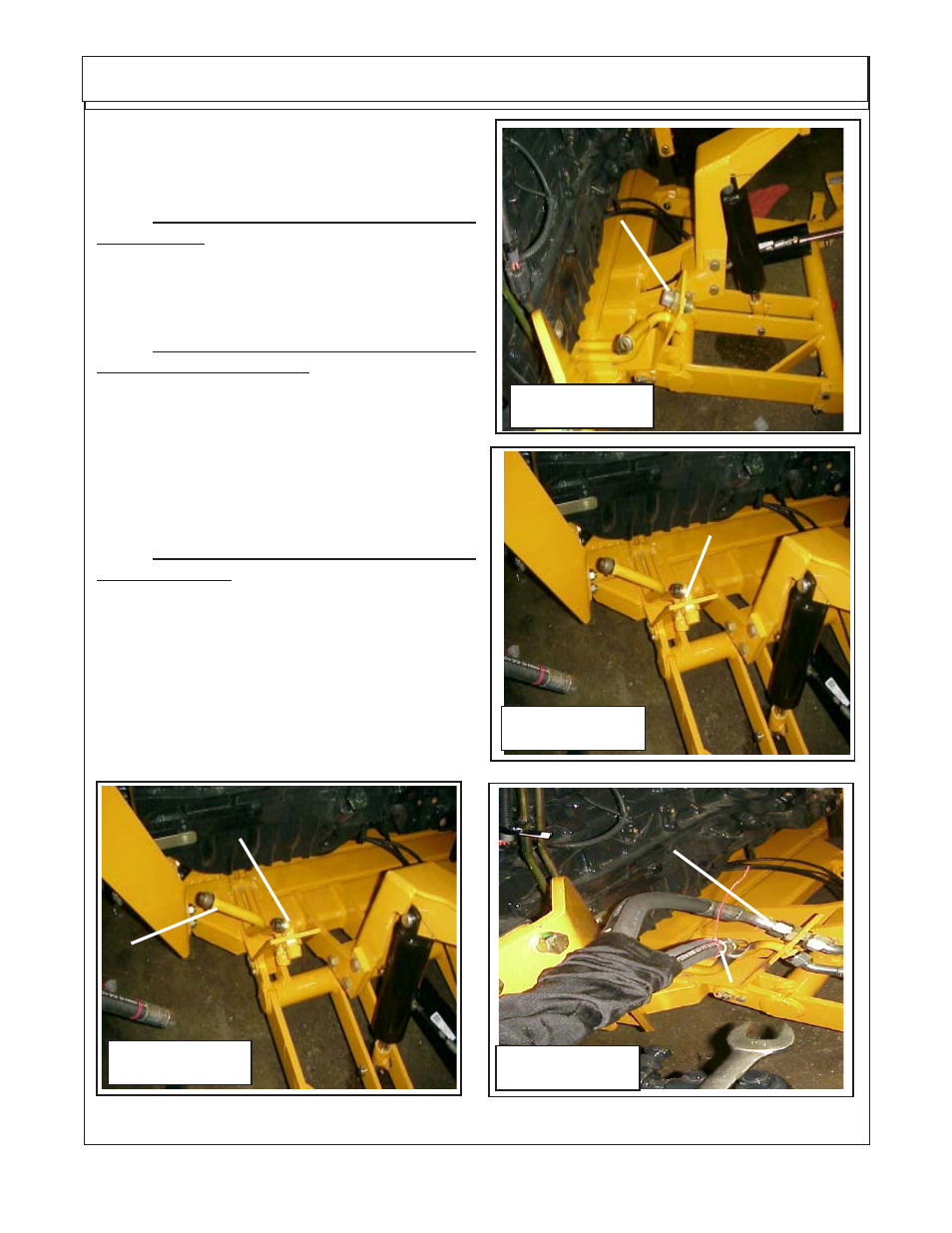

Figure 14

LH Wing Side Of

Tractor

Remove this

Straight Bulk

Head Fitting &

Replace it with

an Elbow

Install Driveshaft, Pump & Tank:
(continued)

20.

Change Straight Bulkhead fitting to an

Elbow Fitting. There is a straight bulkhead fit-
ting installed into main frame crossmember that
should be changed to a 90 " elbow< (See Figure
14,15,16 & 17).

21.

Connect Motor Pressure Supply Hoses to

Main Frame Cross Member. The Tandem Pump
has two pressure hoses. The Rear (closest to
Tractor Engine) it the supply for the RH Wing Motor.
The Outer Pump is the LH Wing Motor Pressure
Supply. The hose for the RH Wing should be marked
with a red plastic tie on it, the other hose is not
Identified. Connect these two hoses at the Main
frame crossmember now (See Figure 16 & 17)

22.

Connect Hoses to correct Bulkhead fittings

is important here . The Pressure hoses MUST be
connected correctly to the correct bulkhead fitting. If
they are not they will damage the head cooling tubes
and/or other components. DO NOT connect any
hoses until instructed to do so. Always double check
the hose routing to make sure they are correct.

Pump - Driveshaft - Hyd tank

Figure 15

LH Wing Side Of

Tractor

Install this Elbow

Bulk Head Fitting in

place of straight one.

Figure 16

LH Wing Side Of

Tractor

Install Pressure Hose from Tandem Pump
to Bulk head fitting here for LH Wing
Motor

Install Pressure Hose
from Tandem Pump to
Bulk head fitting here for
RH Wing Motor

Pressure Hose f/ Tandem
Pump to Bulk head fitting here
, LH Wing Motor

Pressure Hose f/ Tan-
dem Pump to Bulk
head fitting here , RH
Wing Motor

Figure 17
