RPC-6010G Rackmount LCD Workstation

Step 10:

Remove the fan from the bracket by removing the four retention screws.

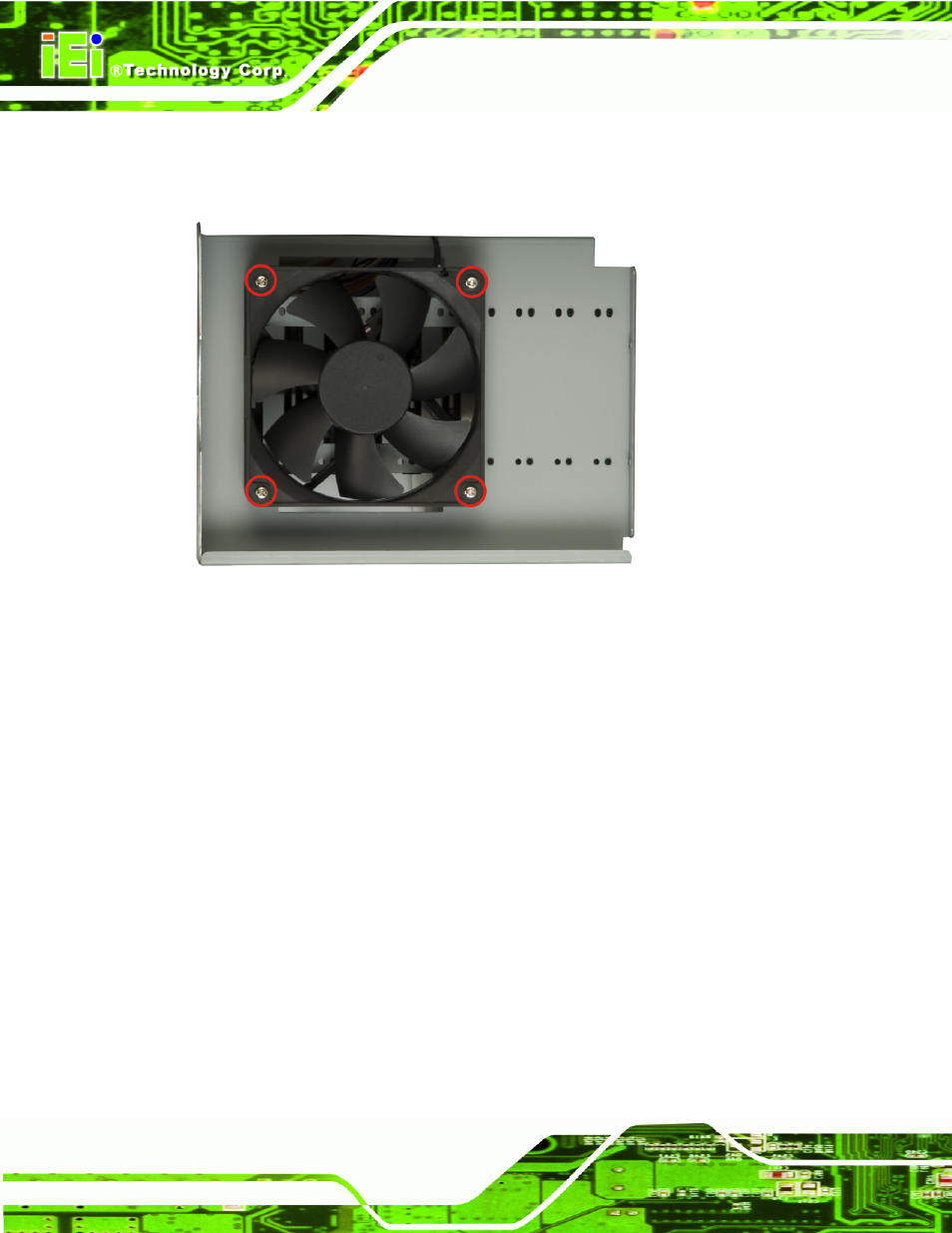

Figure 5-6: Fan Retention Screws

Step 11:

Step 12:

Step 13:

Step 14:

Step 15:

Step 16:

Step 17:

Place the new fan into the bracket. Align the retention screw holes in the new fan

with those in the bracket and reinsert the four retention screws.

Connect the new cooling fan to the PSU.

Reinstall the three retention screws that secure the cooling fan bracket to the

bottom of the workstation.

Reinstall the two external retention screws that secure the cooling fan bracket to

the left side panel of the workstation.

Reinstall and reconnect all CPU cards and PCI/ISA expansion cards.

Reinstall the dual CPU card clamp and drive bay stabilizer bracket. (See

Section 4.5.3)

Reinstall the CPU card clamp. (See Section 4.5.2)
