RPC-6010G Rackmount LCD Workstation

Step 2:

Step 3:

Step 4:

Mount the backplane into the chassis. Make sure the backplane is positioned so

that when the CPU card and PCI/ISA expansion cards are installed, both the

CPU card and the PCI/ISA card I/O connectors face the I/O brackets on the rear

panel.

Align the retention screw holes in the backplane with the copper pillars installed

in Step 1.

Insert retention screws to secure the backplane to the chassis (Figure 4-12)

Step 0:

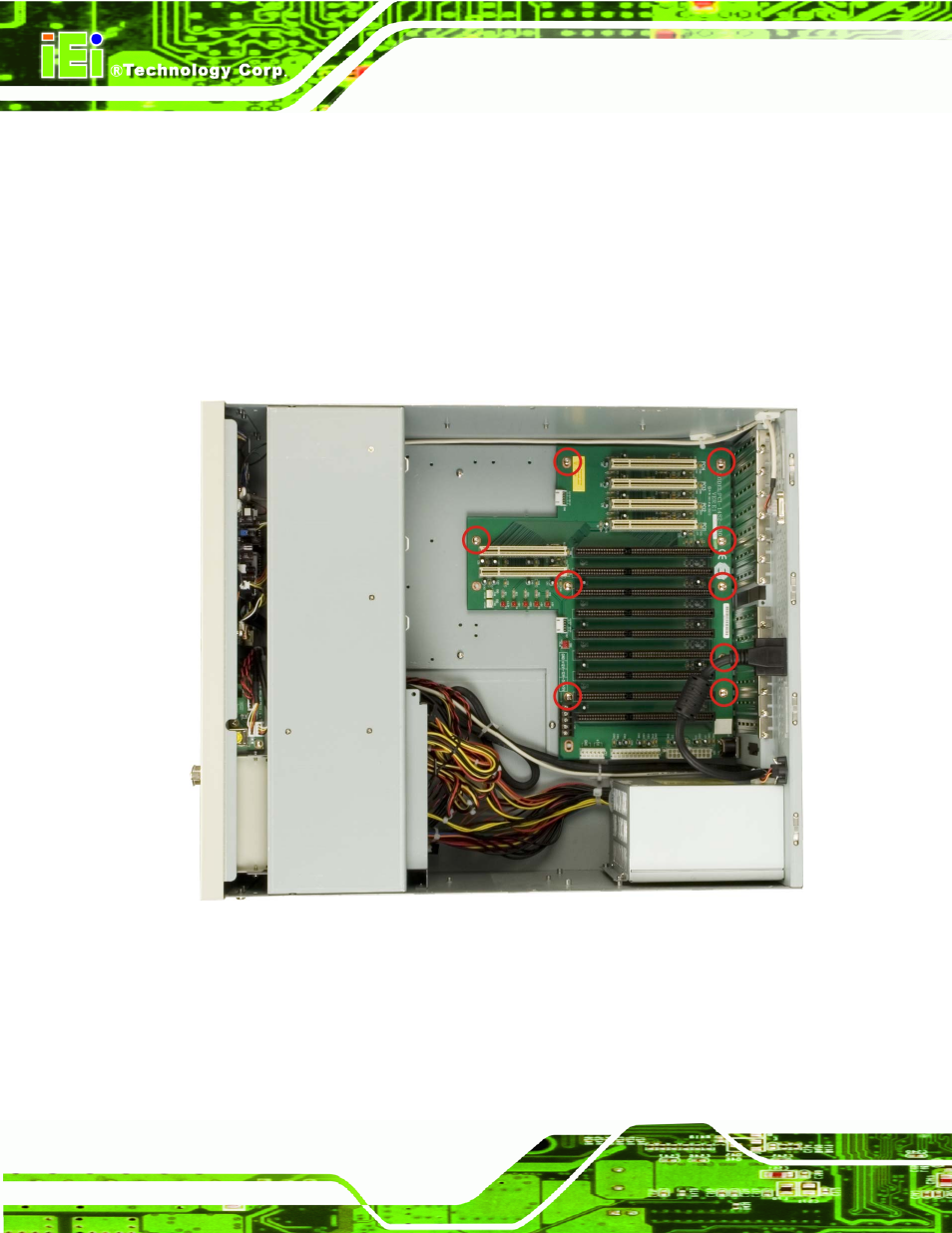

Figure 4-12: Backplane Retention Screws
