Page 40

RPC-6010G Rackmount LCD Workstation

Step 5:

Insert the appropriate number of retention screws into each side of the 5.25”

disk drive through the drive bracket (Figure 4-8).

Step 0:

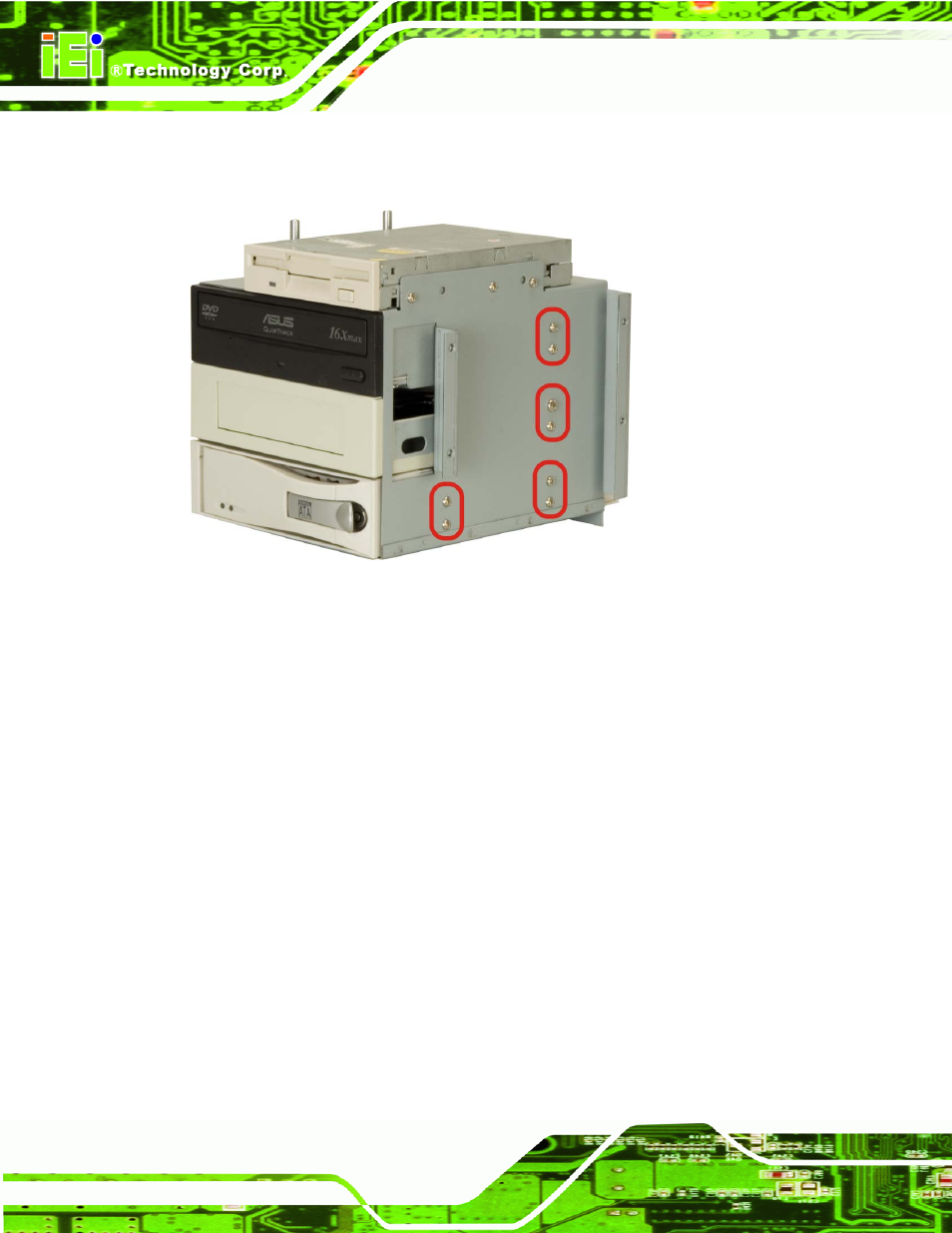

Figure 4-8: 5.25” Disk Drive Retention Screws (Other Side Similar)

4.5.6.2 3.5” Disk Drive in a 5.25” Slot

With the use of IEI’s 3.5” to 5.25” drive bay rack, a standard 3.5” disk drive can be installed

into a 5.25” drive bay slot. To install a 3.5” hard disk drive into a 5.25” slot of the drive

bracket, follow the instructions below.

Step 1:

Step 2:

Slide a 3.5” disk drive into a 3.5” to 5.25” drive bay rack. Make sure the

IDE/SATA connector and the power connectors of the drive are facing the rear of

the rack.

Insert the appropriate number of retention screws into each side of the 3.5” disk

drive through the 3.5” to 5.25” drive bay rack (Figure 4-9).

Page 30
