RPC-6010G Rackmount LCD Workstation

Step 8:

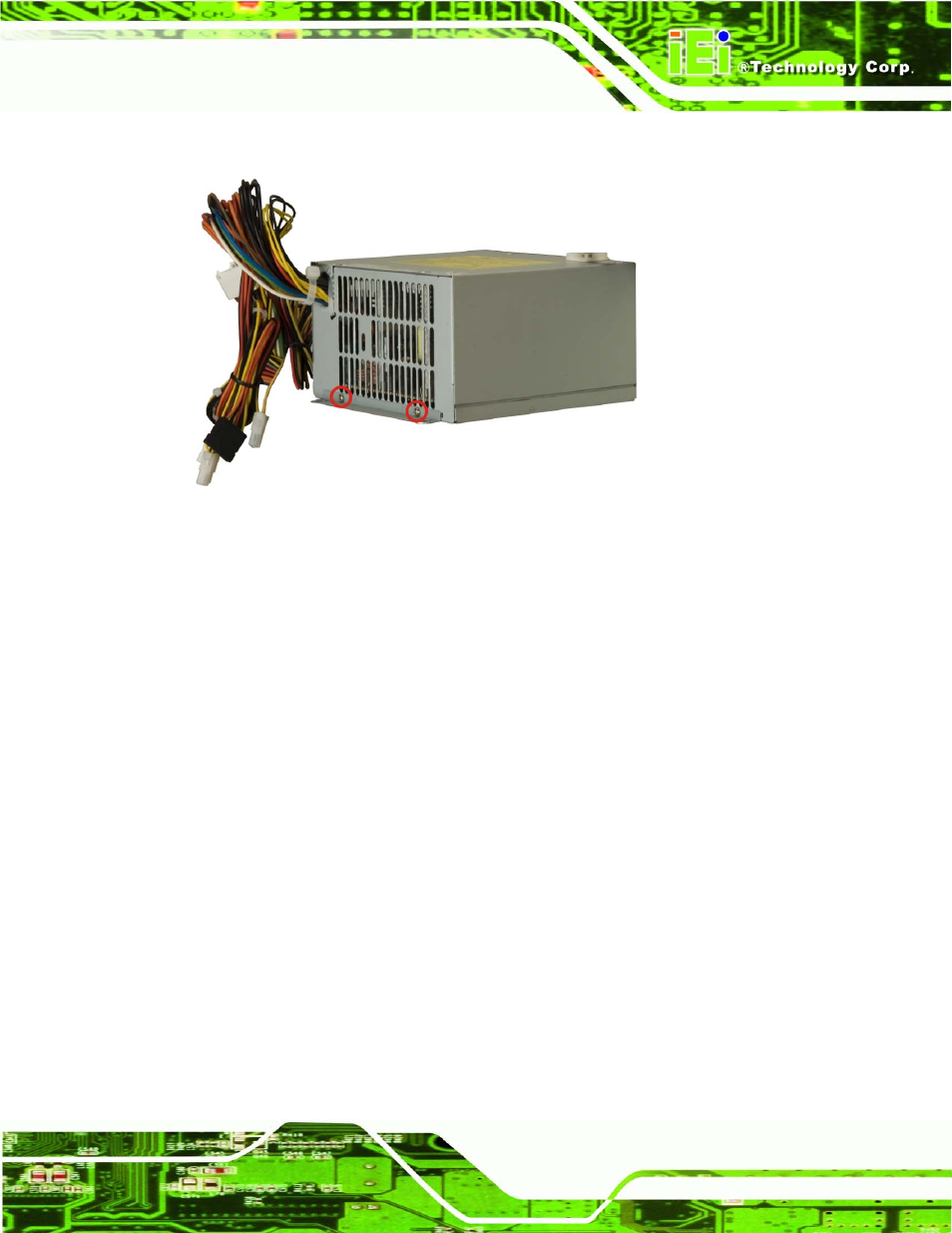

Remove the two retention screws on the PSU mounting bracket (Figure 5-3).

Figure 5-3: PSU Mounting Bracket Retention Screws

Step 9:

Step 10:

Step 11:

Step 12:

Step 13:

Step 14:

Step 15:

Reattach the PSU mounting bracket to the new PSU with the two previously

removed retention screws.

Install the new PSU into the workstation making sure the PSU power connector

and PSU cooling fan are facing out of the workstation.

Reinsert the two previously removed internal retention screws that secure the

PSU assembly to the right side panel of the workstation.

Reinsert the four previously removed external retention screws that secure the

PSU assembly to the rear panel of the workstation.

Reinstall the CPU card clamp.

Reinstall the top cover of the workstation.

Reinstall the workstation into the rack. Refer to Section 4.6 for complete

mounting instructions.

Step 0:
