RPC-6010G Rackmount LCD Workstation

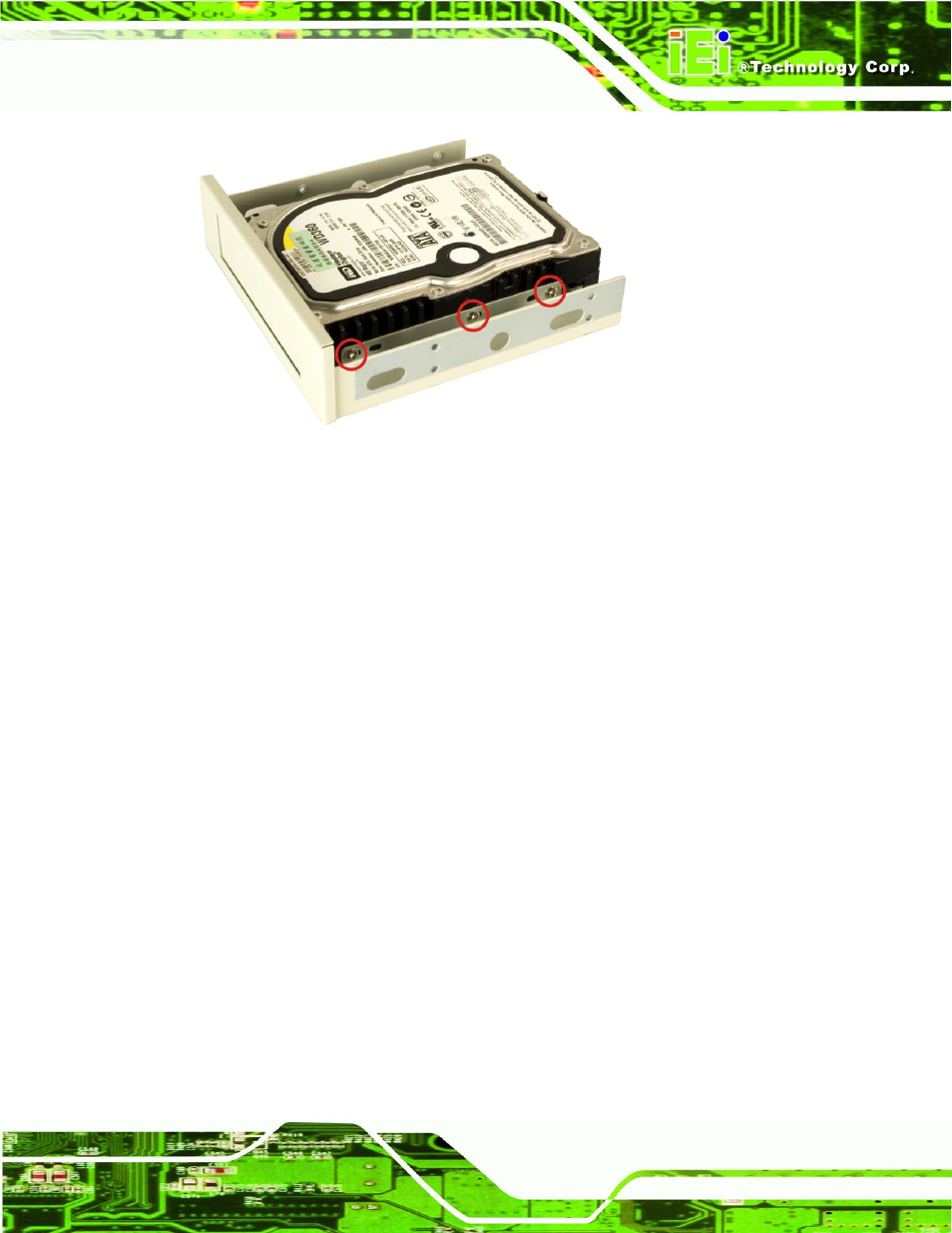

Figure 4-9: 3.5” to 5.25” Drive Bay Rack Retention Screws (Other Side Similar)

Step 3:

Step 4:

Step 5:

Step 6:

Step 1:

Step 2:

Step 3:

Remove the dual CPU card clamp and drive bay stabilizer bracket from the

RPC-6010G rackmount workstation (see Section 4.5.3).

Remove the drive bracket from the RPC-6010G rackmount workstation

(see Section 4.5.4).

Remove the appropriate drive slot blank plate (see Section 4.5.5).

Install the 3.5” to 5.25” drive bay rack into the drive bracket

(see Section 4.5.6.1)

Step 0:

4.5.6.3 3.5” Disk Drive

To install a 3.5” disk drive, follow the instructions below.

Remove the dual CPU card clamp and drive bay stabilizer bracket from the

RPC-6010G rackmount workstation (see Section 4.5.3).

Remove the drive bracket from the RPC-6010G rackmount workstation

(see Section 4.5.4).

If installing a floppy disk drive, remove the 3.5” drive slot blank plate

(see Section 4.5.5).
