ECN-680A-H61 Em b e d d e d S ys te m
P a g e 57
The K type thermocouple connector connects to the K type thermocouple devices.

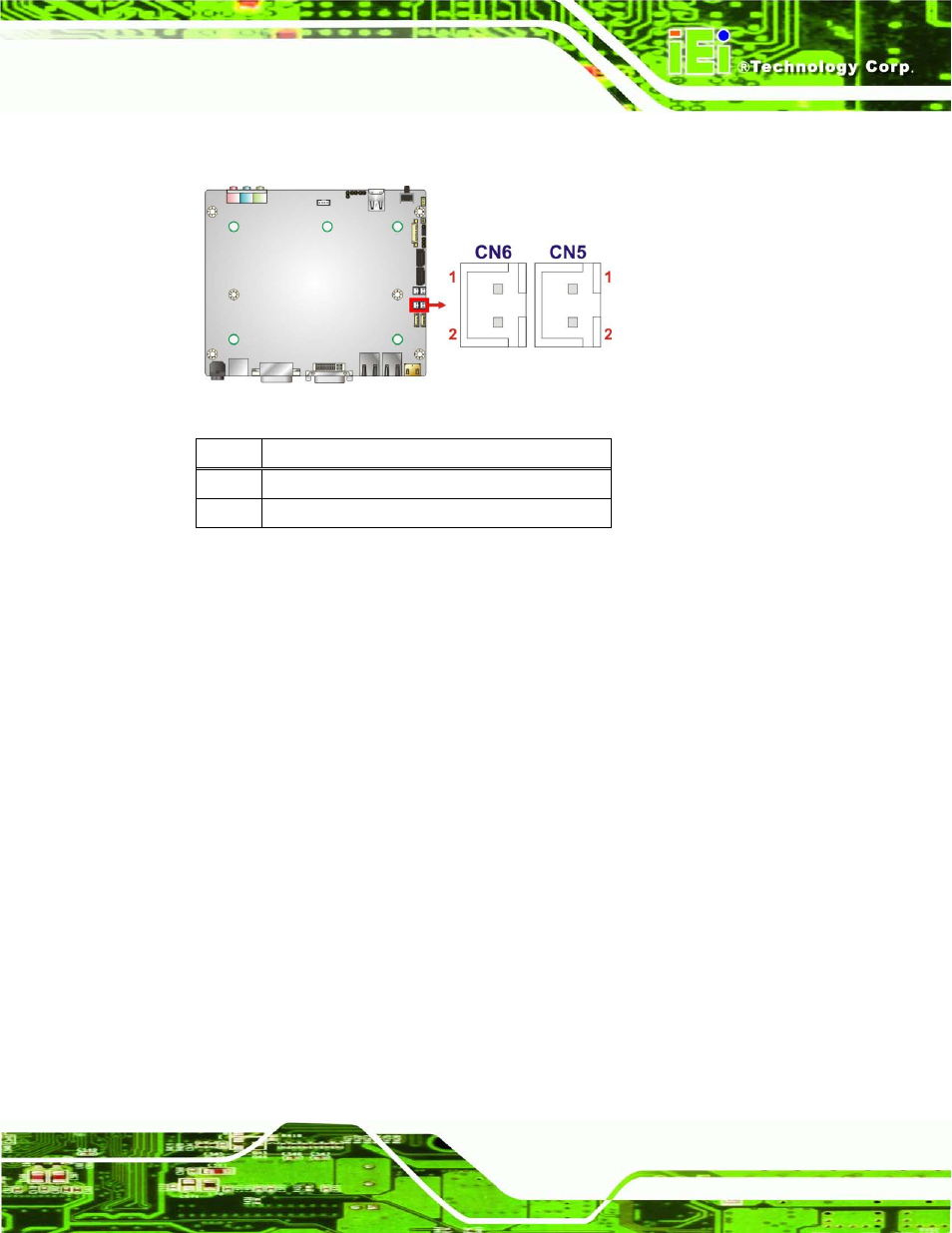

Figure 4-17: Type K Thermocouple Connector Locations
Pin Description
1 D1-
2 D1+
Table 4-16: Type K Thermocouple Connector Pinouts
4.2.16 US B 2.0 Co n n e c to rs
CN La b e l: US B0_1, US B2_3
CN Typ e : 9-pin wafer
CN Lo c a tio n : See Figure 4-18
CN P in o u ts : See Table 4-17
The USB header can connect to two USB devices.
