ECN-680A-H61 Em b e d d e d S ys te m
P a g e 56
4.2.14 S P I Fla s h Co n n e c to r (EC)
CN La b e l: J S P I1
CN Typ e : 6-pin wafer
CN Lo c a tio n : See Figure 4-16
CN P in o u ts : See Table 4-15
The EC SPI Flash connector is used to flash the BIOS.

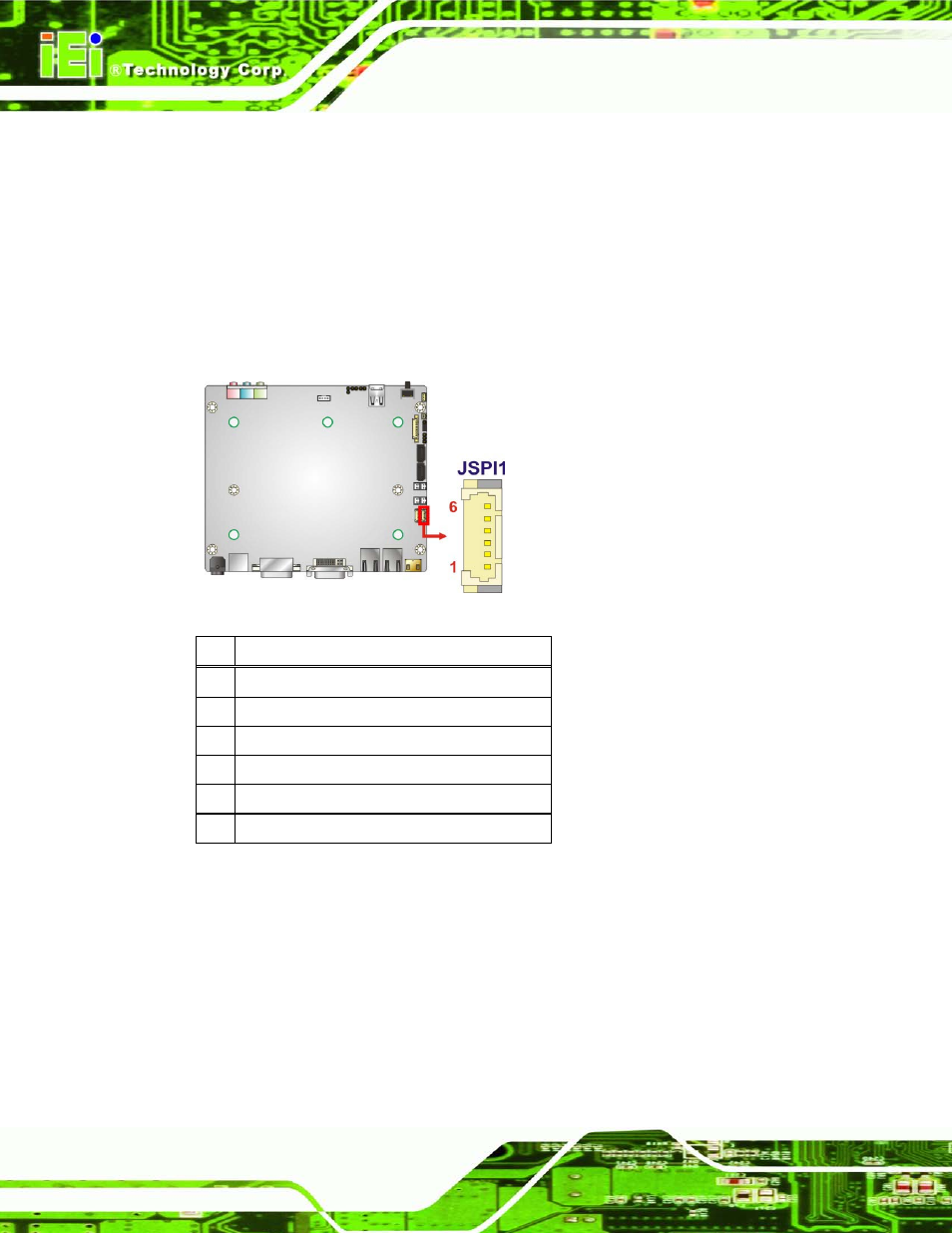

Figure 4-16: EC SPI Flash Connector Location
Pin Description
1 +V3.3A_ EC_CON
2 FSCE#_S
3 FMISO_S
4 FSCK_S
5 FMOSI_S
6 GND
Table 4-15: EC SPI Flash Connector Pinouts
4.2.15 K Typ e Th e rm o c o u p le Co n n e c to rs
CN La b e l: CN5, CN6
CN Typ e : 2-pin wafer
CN Lo c a tio n : See Figure 4-17
CN P in o u ts : See Table 4-16
