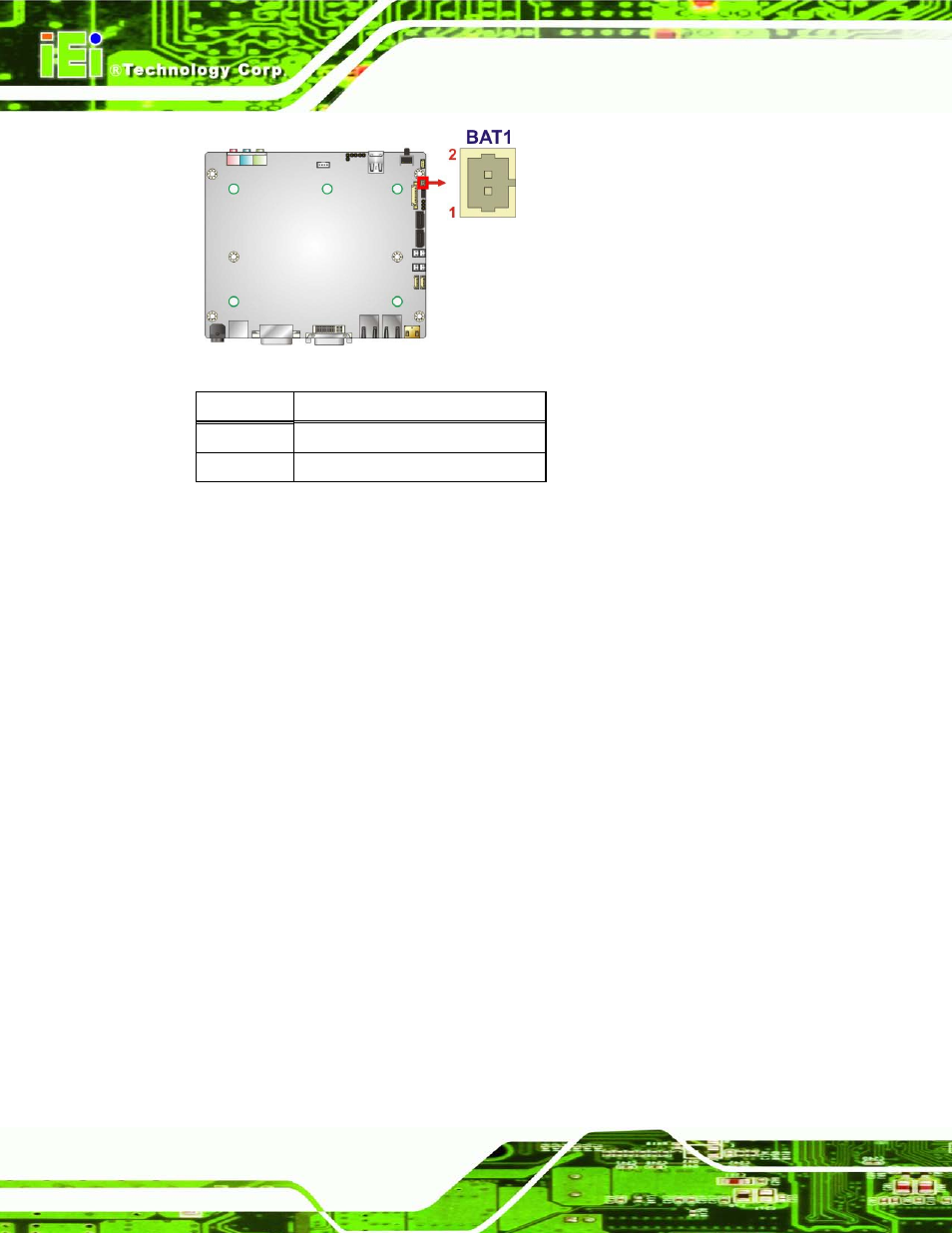

Figure 4-3: Battery Connector Location
Pin Description
1 Battery+
2 Ground
Table 4-2: Battery Connector Pinouts
4.2.2 Fa n Co n n e c to r (CP U)
CN La b e l: CP U_FAN1
CN Typ e : 4-pin wafer
CN Lo c a tio n : See Figure 4-4
CN P in o u ts : See Table 4-3
The fan connector attaches to a CPU cooling fan.
