ECN-680A-H61 Em b e d d e d S ys te m
P a g e 42

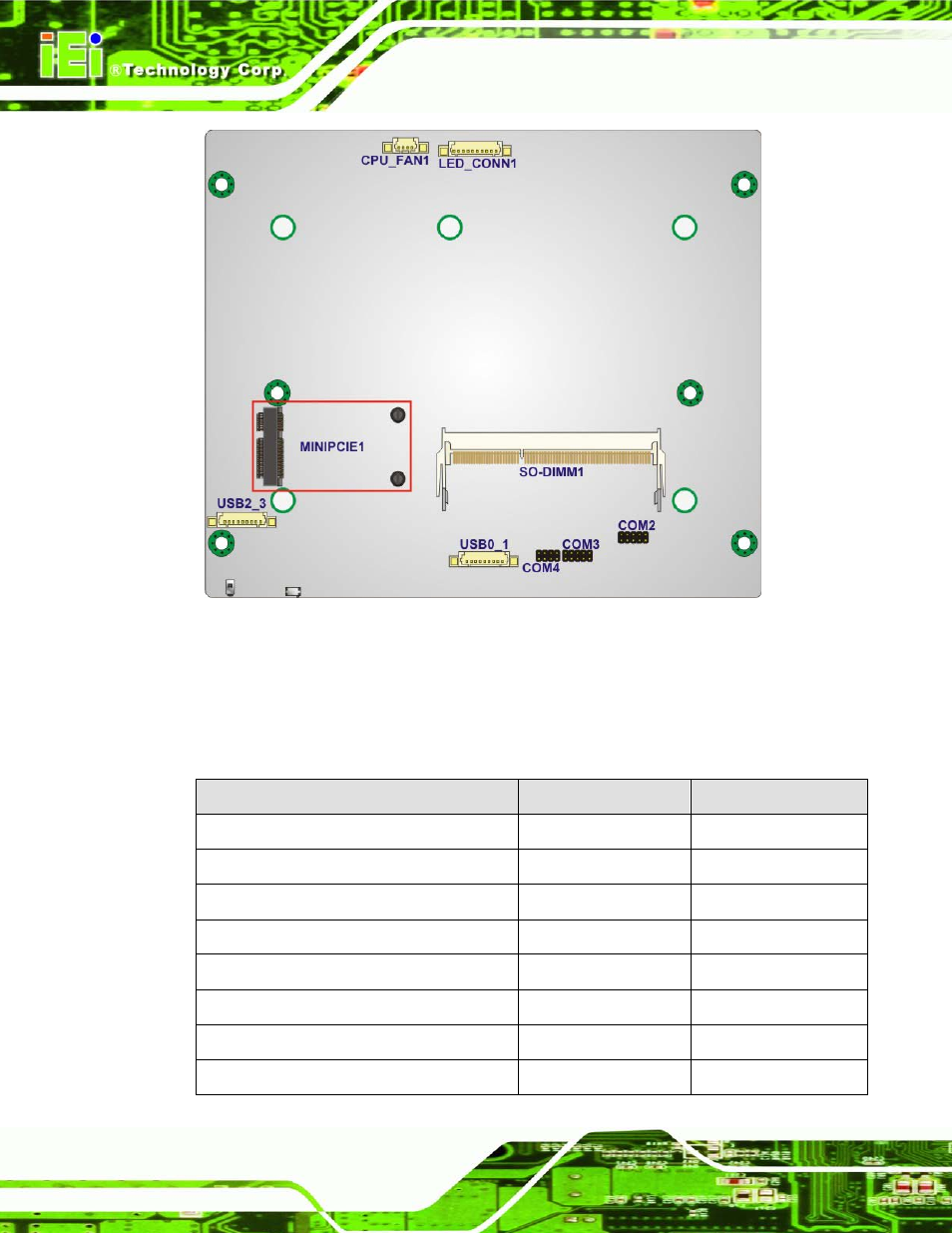

Figure 4-2: Connector and Jumper Locations (Rear Side)
4.1.2 P e rip h e ra l In te rfa c e Co n n e c to rs
The table below shows a list of the peripheral interface connectors on the ECN-680A-H61.
Detailed descriptions of these connectors can be found below.
Co n n e c to r Typ e La b e l
Battery connector 2-pin wafer BAT1
Fan connector (CPU) 4-pin wafer CPU_FAN1
LED module connector 10-pin wafer LED_CONN1
Logo LED connectors 2-pin header LED1, LED2, LED3
PCIe Mini card slot PCIe Mini card slot MINIPCIE1
RS-232 serial ports 10-pin header COM2, COM3
RS-422/485 serial port 8-pin header COM4
SATA connectors SATA connector SATA1, SATA2
