NOVA-PV-D5251/D4251 5.25" SBC

Page 77

Step 2:

Align pin 1. Align pin 1 on the on-board connector with pin 1 on the audio kit

connector. Pin 1 on the audio kit connector is indicated with a white dot. See

Figure 4-12.

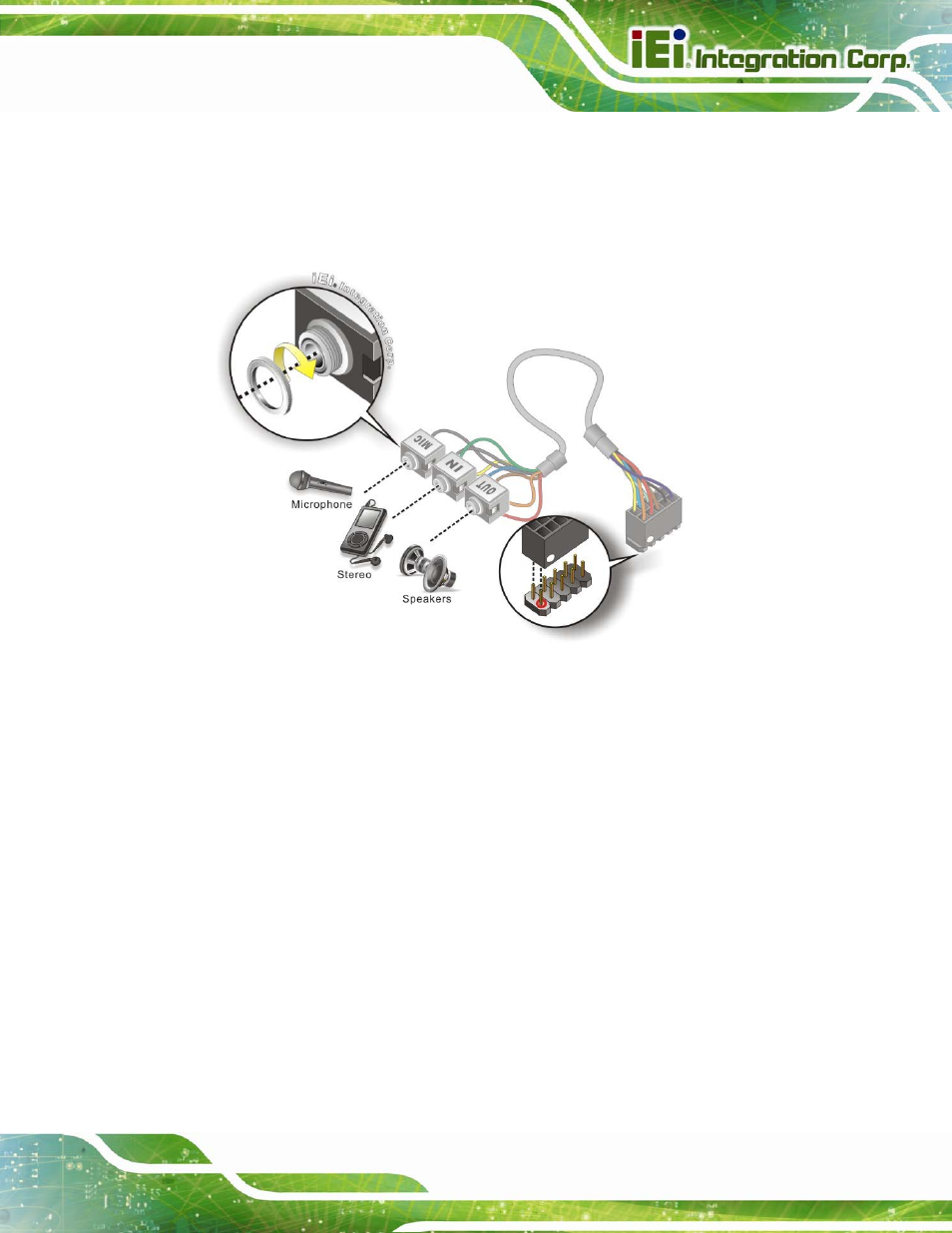

Figure 4-12: Audio Kit Cable Connection

Step 3:

Connect the audio devices. Connect speakers to the line-out audio jack.

Connect the output of an audio device to the line-in audio jack. Connect a

microphone to the mic-in audio jack.

Step 0:

4.7.2 Keyboard/Mouse Connector

The NOVA-PV-D5251/D4251 is shipped with a keyboard/mouse Y-cable connector. The

keyboard/mouse Y-cable connector connects to a keyboard/mouse connector on the

NOVA-PV-D5251/D4251 and branches into two cables that are each connected to a PS/2

connector, one for a mouse and one for a keyboard. To connect the keyboard/mouse

Y-cable connector, please follow the steps below.

Step 1:

Locate the connector. The location of the keyboard/mouse Y-cable connector

is shown in Chapter 3.
