NOVA-PV-D5251/D4251 5.25" SBC

Page 34

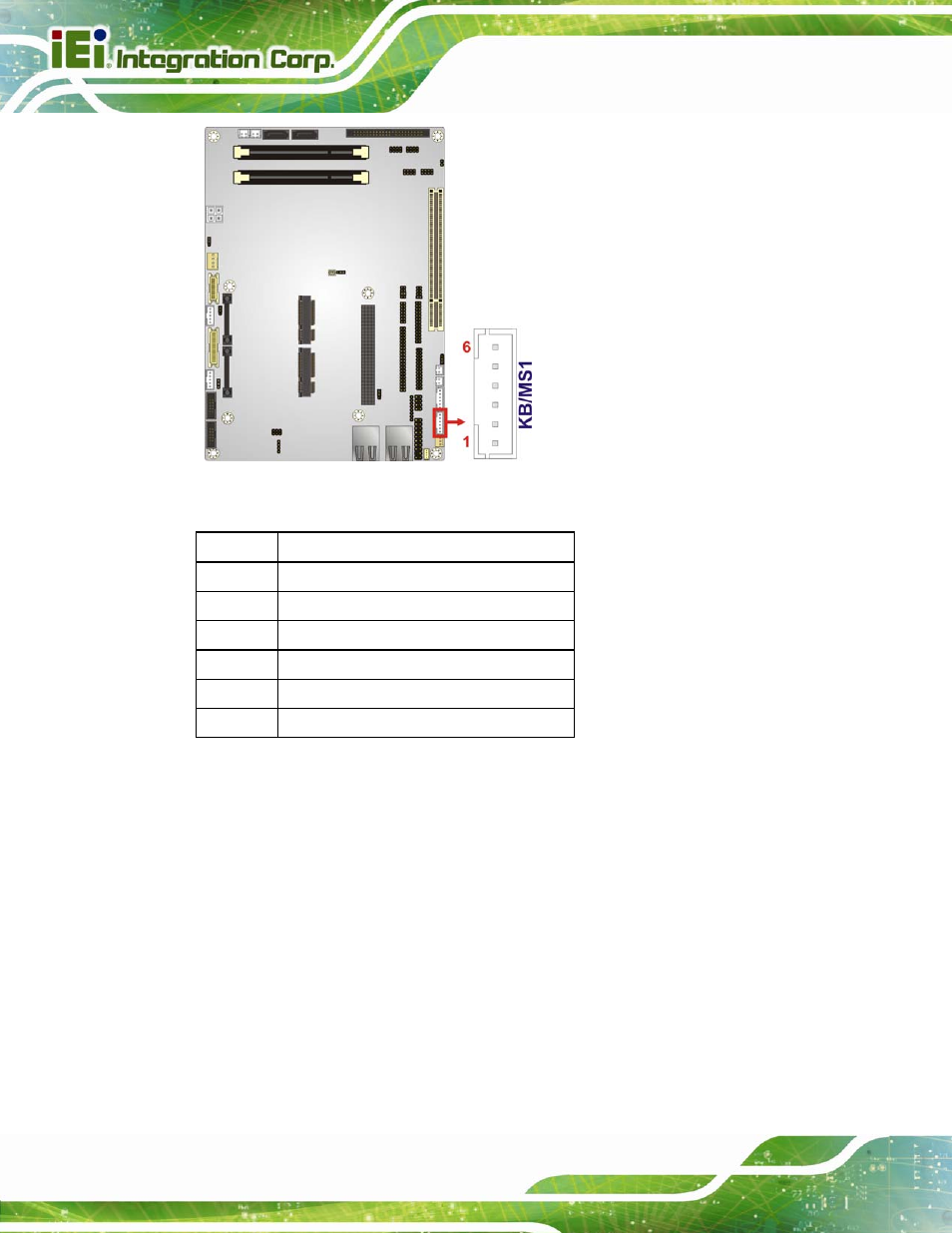

Figure 3-13: Keyboard/Mouse Connector Location

Pin Description

1 +5

VCC

2 MS

DATA

3 MS

CLK

4 KB

DATA

5 KB

CLK

6 GROUND

Table 3-12: Keyboard/Mouse Connector Pinouts

3.2.12 Backlight Inverter Connectors

CN Label:

INVERTER1, INVERTER2

CN Type:

5-pin wafer (1x5)

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-13

The backlight inverter connector provides power to an LCD panel. The INVERTER1

connector provides power to the LCD panel connected to LVDS2 while the INVERTER2

provides power to the LCD panel connected to LVDS3.
