NOVA-PV-D5251/D4251 5.25" SBC

Page 71

Setting Description

Short 1-2

Master

Table 4-5: CompactFlash® Setup Jumper Settings

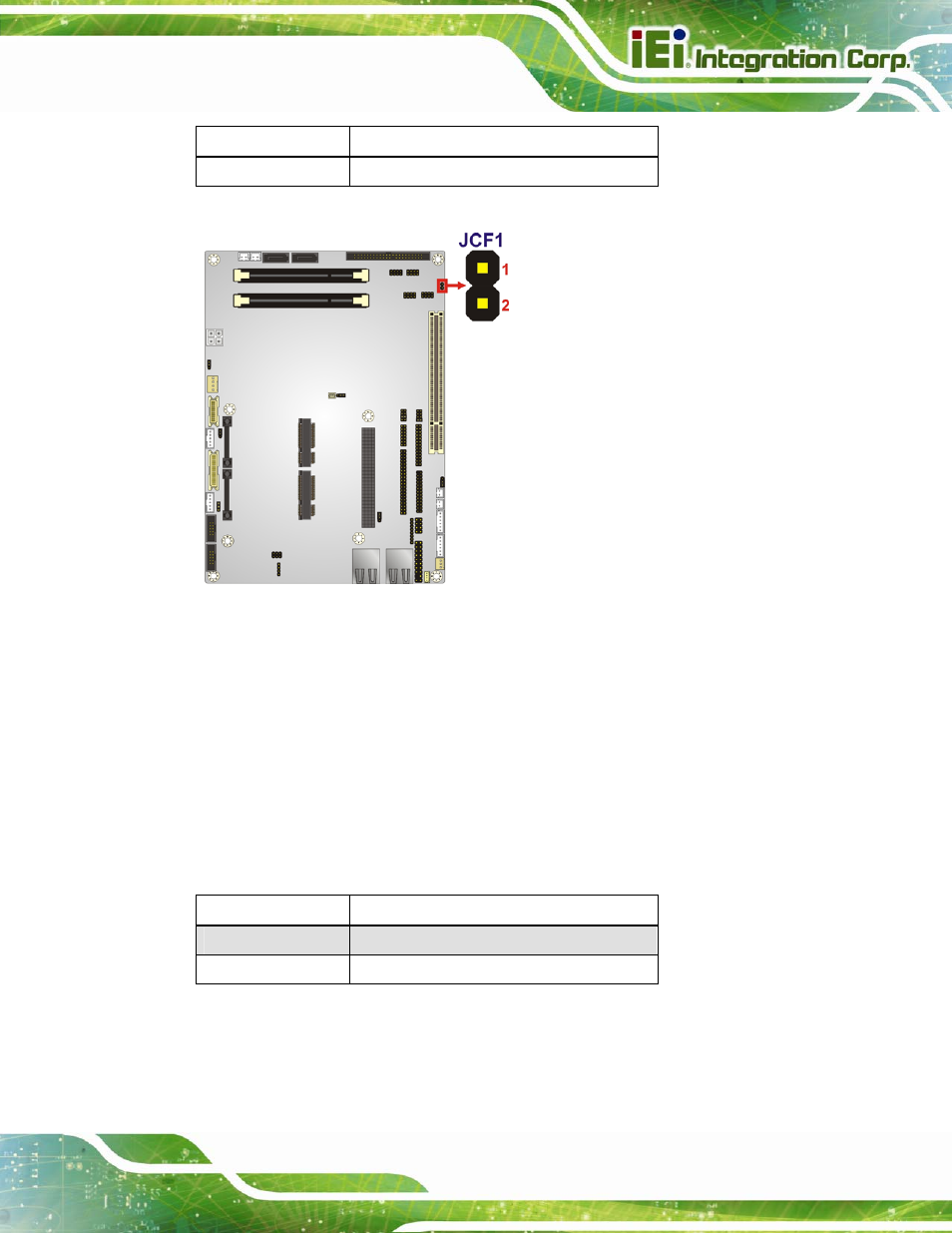

Figure 4-7: CompactFlash® Setup Jumper Location

4.5.5 CPU Fan Setting

Jumper Label:

JP7

Jumper Type:

3-pin header

Jumper Settings:

See Table 4-6

Jumper Location:

See Figure 4-8

This jumper sets the 4-pin CPU fan connector (CPU_FAN1).

Setting Description

Short 1-2

3-pin (Default)

Short 2-3

4-pin

Table 4-6: CPU Fan Setting Jumper Settings
