NOVA-PV-D5251/D4251 5.25" SBC
Page 19

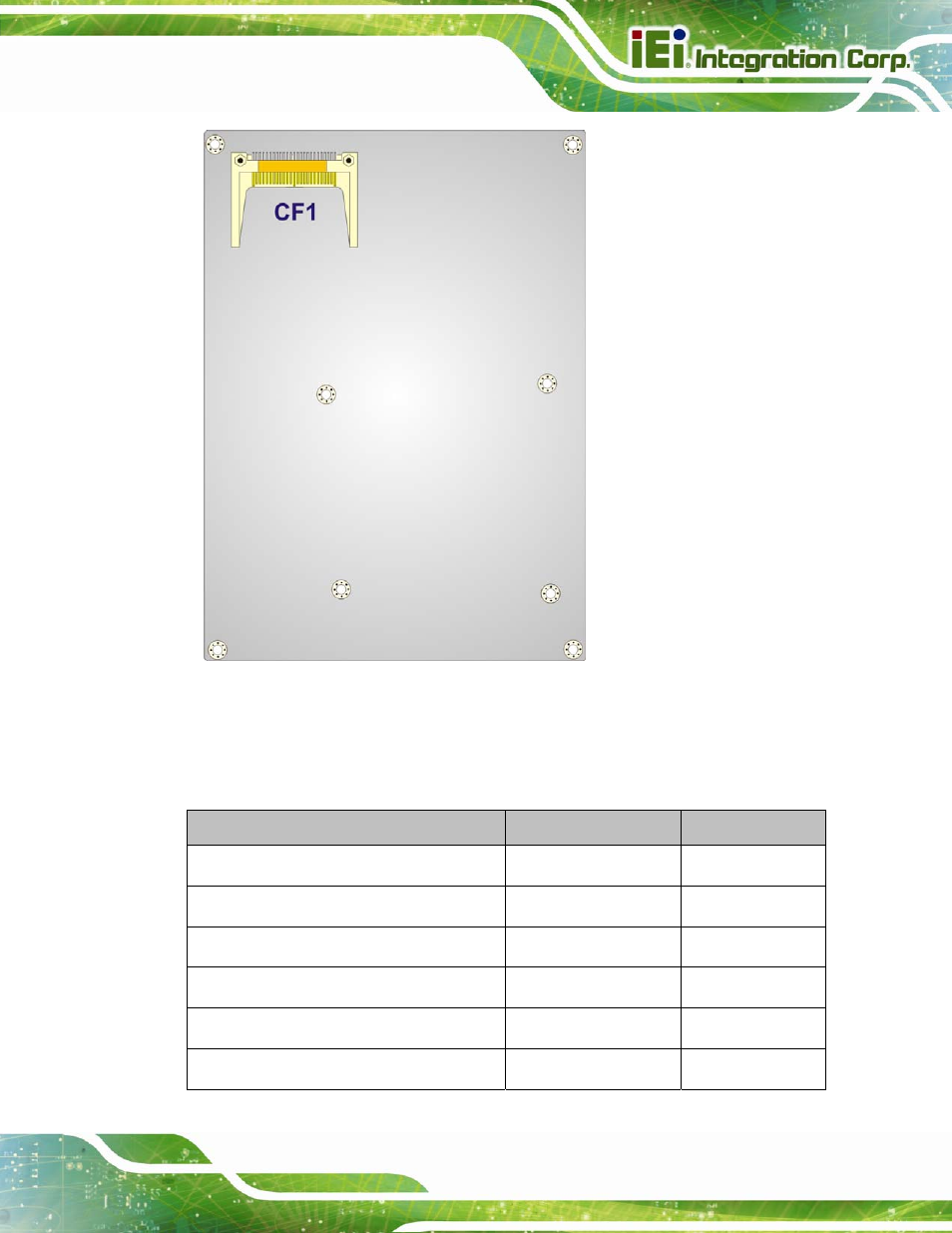

Figure 3-2: Connector Location (Solder Side)
3.1.2 Peripheral Interface Connectors
The table below lists all the connectors on the board.
Connector
Type
Label
Audio connector
10-pin box header
AUDIO1
Battery connector
2-pin wafer
BAT1
CompactFlash® card slot
CF card slot
CF1
DDR3 SO-DIMM socket
204-pin socket
DIMM1
DDR3 SO-DIMM socket
204-pin socket
DIMM2
Digital I/O connector
26-pin header
DIO1
