Page 51
NOVA-PV-D5251/D4251 5.25" SBC
Page 35

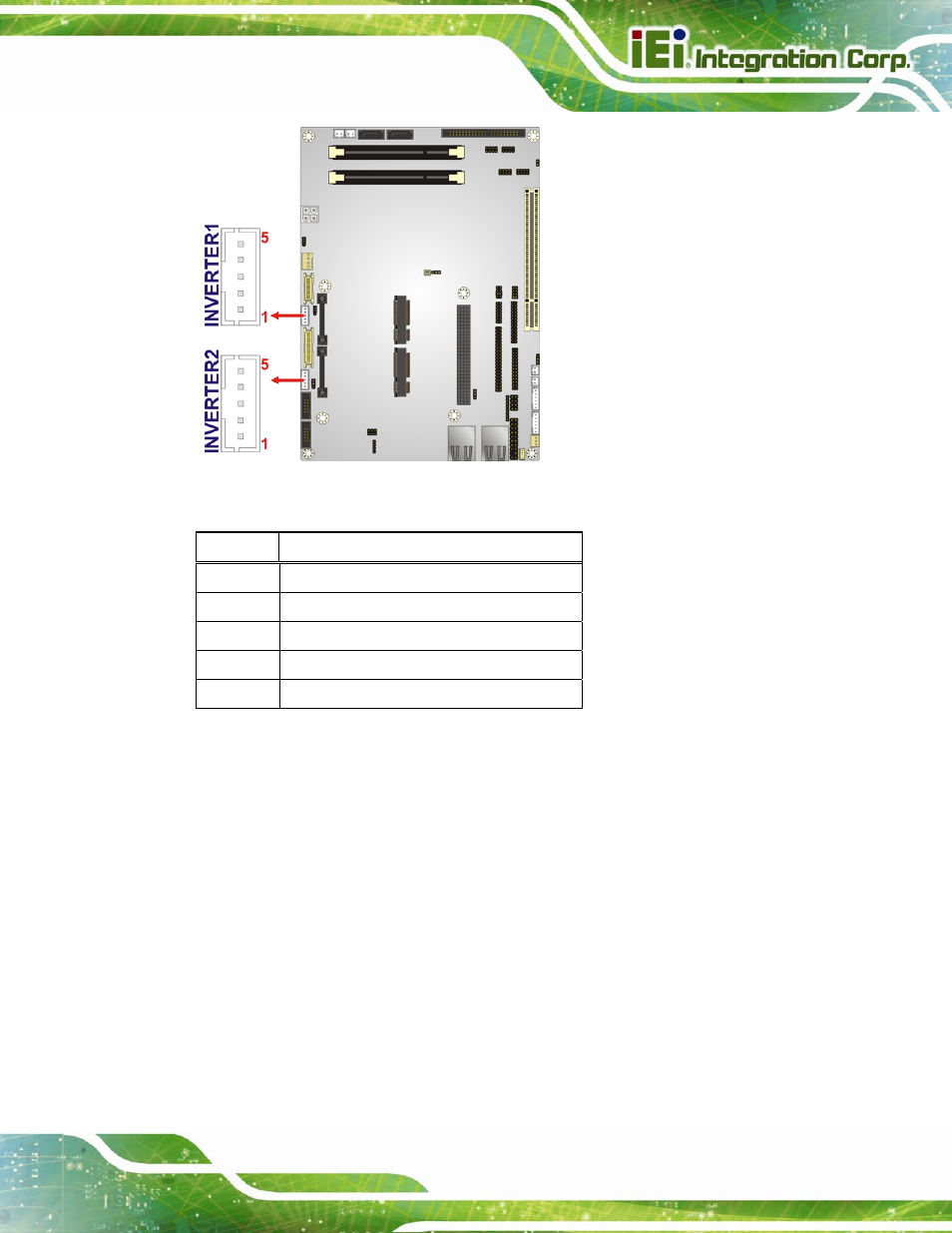

Figure 3-14: Backlight Inverter Connector Locations
Pin Description
1 BRIGHTNESS
2 GROUND1
3 +12
V
4 GROUND2
5 BACKLIGHT
ENABLE
Table 3-13: Backlight Inverter Connector Pinouts
3.2.13 LVDS LCD Connector (18/24-bit Dual-channel)
CN Label:
LVDS2
CN Type:
30-pin crimp (2x15)
CN Location:
See Figure 3-15
CN Pinouts:
See Table 3-14
The LVDS connector is for an LCD panel connected to the board.
