NOVA-PV-D5251/D4251 5.25" SBC

Page 73

Setting Description

Short 1-2

+5.0 V

Short 2-3

+3.3 V (Default)

Table 4-7: LVDS Voltage Selection Jumper Settings

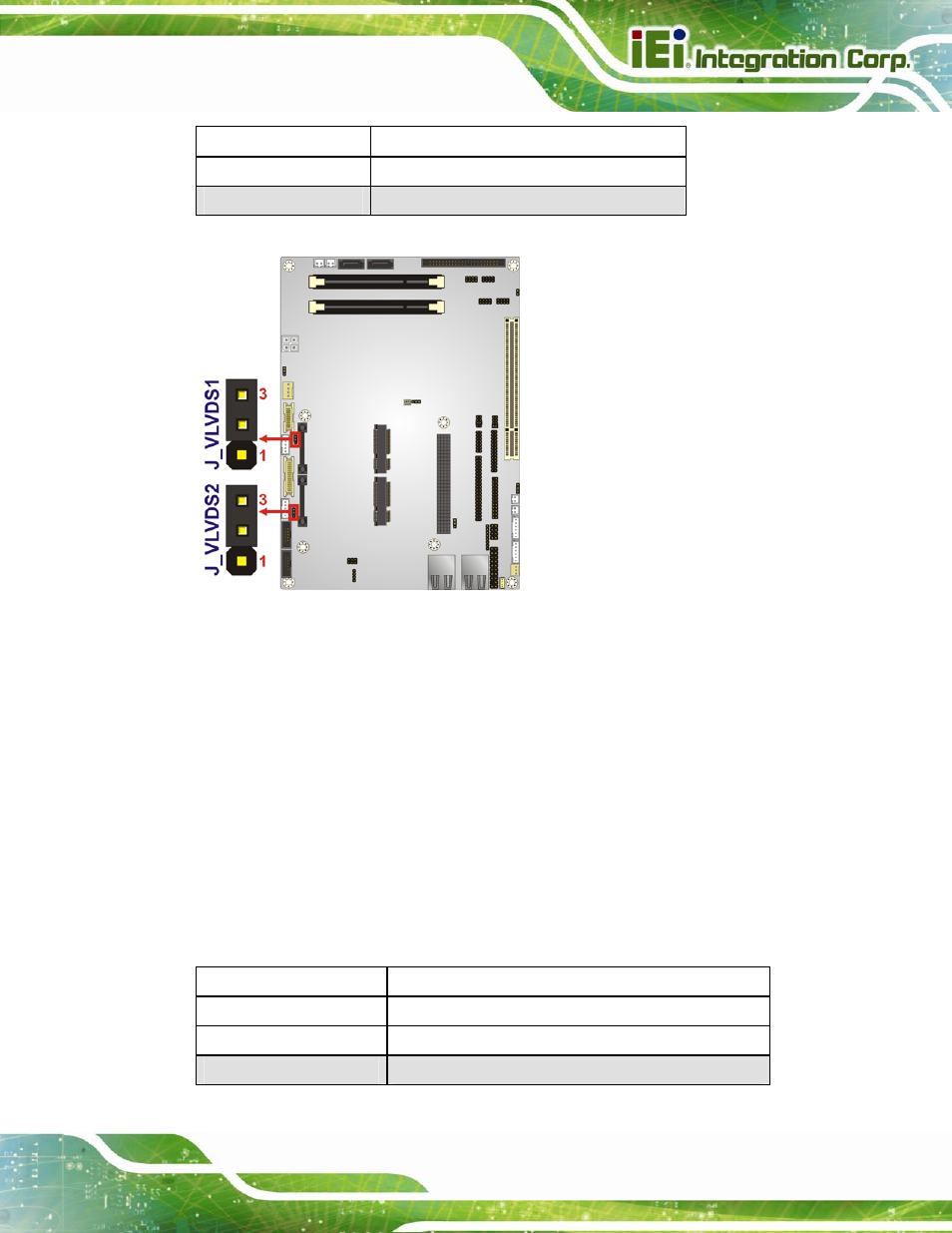

Figure 4-9: LVDS Voltage Selection Jumper Locations

4.5.7 LVDS Panel Resolution Select

Jumper Label:

J_LCD_TYPE1 for LVDS2

JP10 for LVDS3

Jumper Type:

Pin header

Jumper Settings:

See Table 4-8 and Table 4-9

Jumper Location:

See Figure 4-10

The LVDS Panel Resolution jumper configures the resolution of the LVDS output. The

LVDS Panel Resolution jumper settings are shown in Table 4-8 and Table 4-9.

J_LCD_TYPE1 Description

OFF

640 X 480 (18-bit)

Short 1-2

800 X 400 (18-bit)

Short 3-4

800 X 600 (18-bit) (Default)
